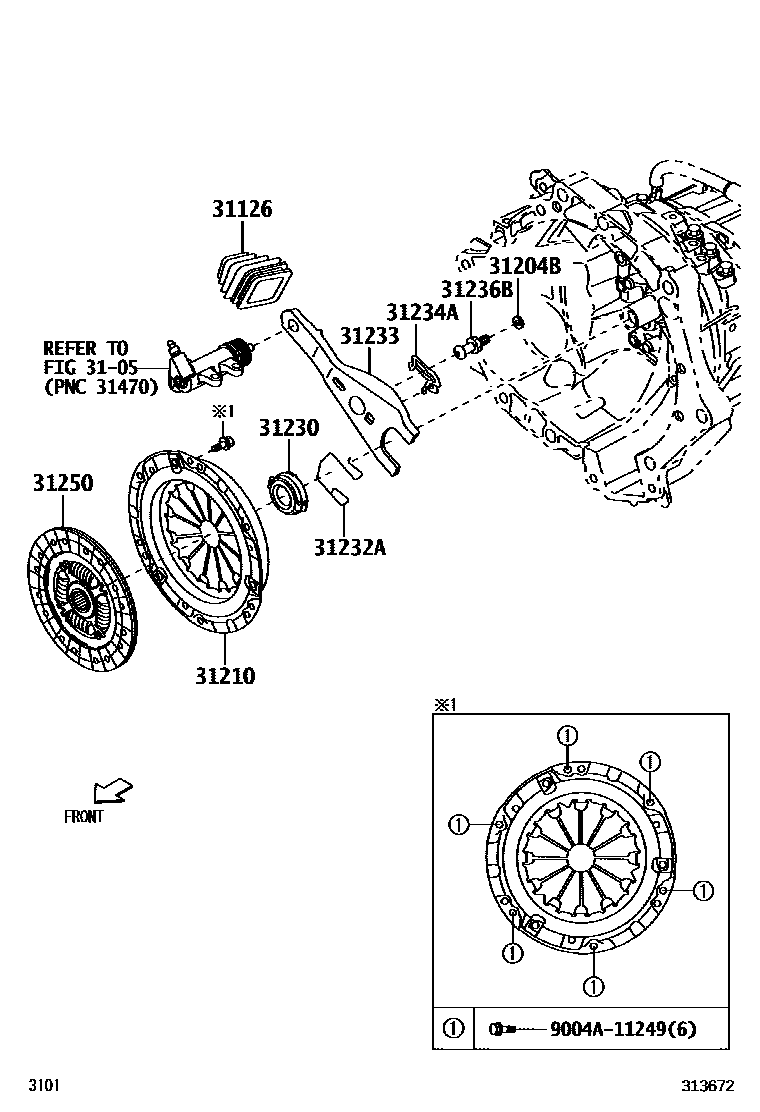

Toyota TOWNACE — CLUTCH & RELEASE FORK

3105

31126BOOT, CLUTCH RELEASE FORK

main31126-BZ020iS403..5F202201

31204BWASHER, WAVE(FOR CLUTCH RELEASE FORK)

main94531-00800iS403..5F¥160202201

31210COVER ASSY, CLUTCH

main31210-BZ081iS403..5F¥8,700202201

31230BEARING ASSY, CLUTCH RELEASE

main31230-BZ060iS403..5F¥2,500202201

31232ACLIP, RELEASE BEARING HUB

main31232-BZ080iS403..5F202201

31233FORK, CLUTCH RELEASE

main31233-BZ060iS403..5F¥4,330202201

31234ASPRING, RELEASE FORK SUPPORT

main31234-BZ031iS403..5F¥170202201

31236BSUPPORT, RELEASE FORK

main31236-BZ010iS403..5F¥580202201

31250DISC ASSY, CLUTCH

main31250-BZ171iS403..5F¥11,000202201

9004A11249

main9004A-11249¥130

11 parts on this diagram · 1 diagram in section
