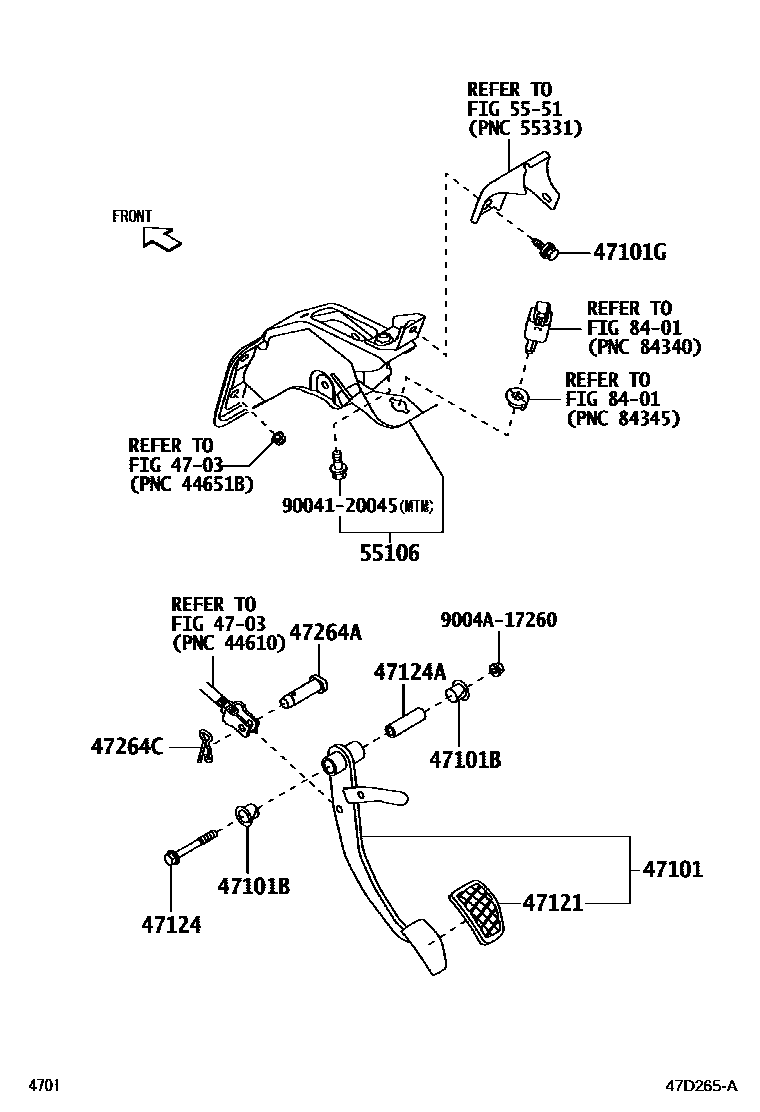

Toyota TOWNACE — BRAKE PEDAL & BRACKET

0001 1 0002 1

4703

47101PEDAL SUB-ASSY, BRAKE

main47101-BZ630iS403202201

47101BBUSH(FOR BRAKE PEDAL)

main9004A-38094iS403¥110202201

47101GBOLT, BRAKE PEDAL STOP, NO.1

main90041-20045iS403¥170202201-202501

main90041-20045iS403¥170202501

JAPAN SOURCED PARTS

main9004A-11424iS403202501

LOCAL SOURCED PARTS

47121PAD, BRAKE PEDAL

main31321-BZ140iS403¥280202201

47124SHAFT, BRAKE PEDAL

main91551-80865iS403¥100202201

47124ACOLLAR(FOR BRAKE PEDAL SHAFT)

main9004A-56112iS403¥310202201

47264APIN(FOR PUSH ROD)

main90042-40151iS403¥160202201

47264CCLIP(FOR PUSH ROD CLEVIS PIN)

main90044-68076iS403¥170202201

55106SUPPORT SUB-ASSY, BRAKE PEDAL

main55106-BZ560iS403202201

5551

8401

9004120045

main90041-20045¥170

9004A17260

main9004A-17260¥120

14 parts on this diagram · 2 diagrams in section
