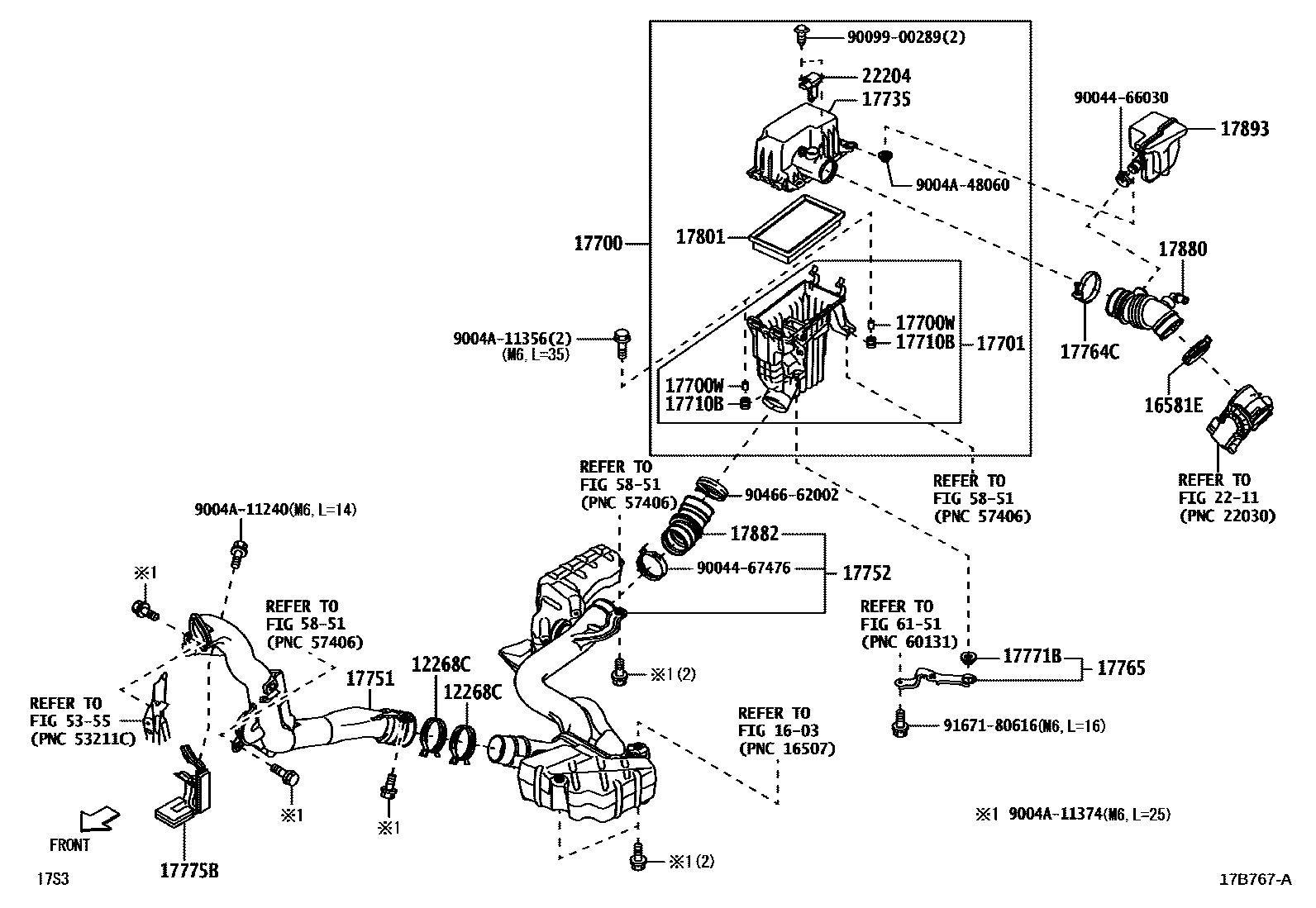

Toyota TOWNACE — AIR CLEANER

12268CCLIP, HOSE

main90466-71001i2NRVE..S403¥340202201

1603

16581ECLAMP, HOSE(FOR AIR CLEANER HOSE)

main90466-62002i2NRVE..S403¥320202201

17700CLEANER ASSY, AIR

main17700-BZ250i2NRVE..S403¥16,900202201

17700WSPACER(FOR AIR CLEANER)

main90045-60213i2NRVE..S403¥190202201

17701CASE SUB-ASSY, AIR CLEANER

main17701-BZ180i2NRVE..S403¥1,360202201

17710BGROMMET

main90044-80421i2NRVE..S403¥210202201

17735CAP, AIR CLEANER

main17735-BZ250i2NRVE..S403¥1,020202201

17751INLET, AIR CLEANER, NO.1

main17751-BZ200i2NRVE..S403202201

17752INLET, AIR CLEANER, NO.2

main17752-BZ070i2NRVE..S403¥20,200202201

17764CCLAMP, HOSE(FOR AIR CLEANER DUCT)

main9004A-46128i2NRVE..S403202201

17765STAY, AIR CLEANER, NO.1

main17765-BZ070i2NRVE..S403¥1,050202201

17771BGROMMET(FOR AIR CLEANER BRACKET)

main90044-80598i2NRVE..S403¥220202201

17775BGUARD, SPLASH

main17775-BZ040i2NRVE..S403¥1,080202201

17801ELEMENT SUB-ASSY, AIR CLEANER FILTER

main17801-BZ130i2NRVE..S403¥2,000202201

17880HOSE ASSY, AIR CLEANER

main17880-BZ200i2NRVE..S403¥2,320202201

17882HOSE, AIR CLEANER, NO.2

main17882-BZ080i2NRVE..S403¥1,950202201

17893RESONATOR, INTAKE AIR

main17893-BZ010i2NRVE..S403¥2,170202201

2211

22204METER SUB-ASSY, INTAKE AIR FLOW

main22204-BZ010i2NRVE..S403¥12,400202201

5355

5851

6151

9004466030

main90044-66030¥280

9004467476

main90044-67476¥860

9004A11240

main9004A-11240

9004A11356

main9004A-11356

9004A11374

main9004A-11374¥140

9004A48060

main9004A-48060

9009900289

main90099-00289¥60

9046662002

main90466-62002¥320

9167180616

main91671-80616¥60

32 parts on this diagram · 1 diagram in section
