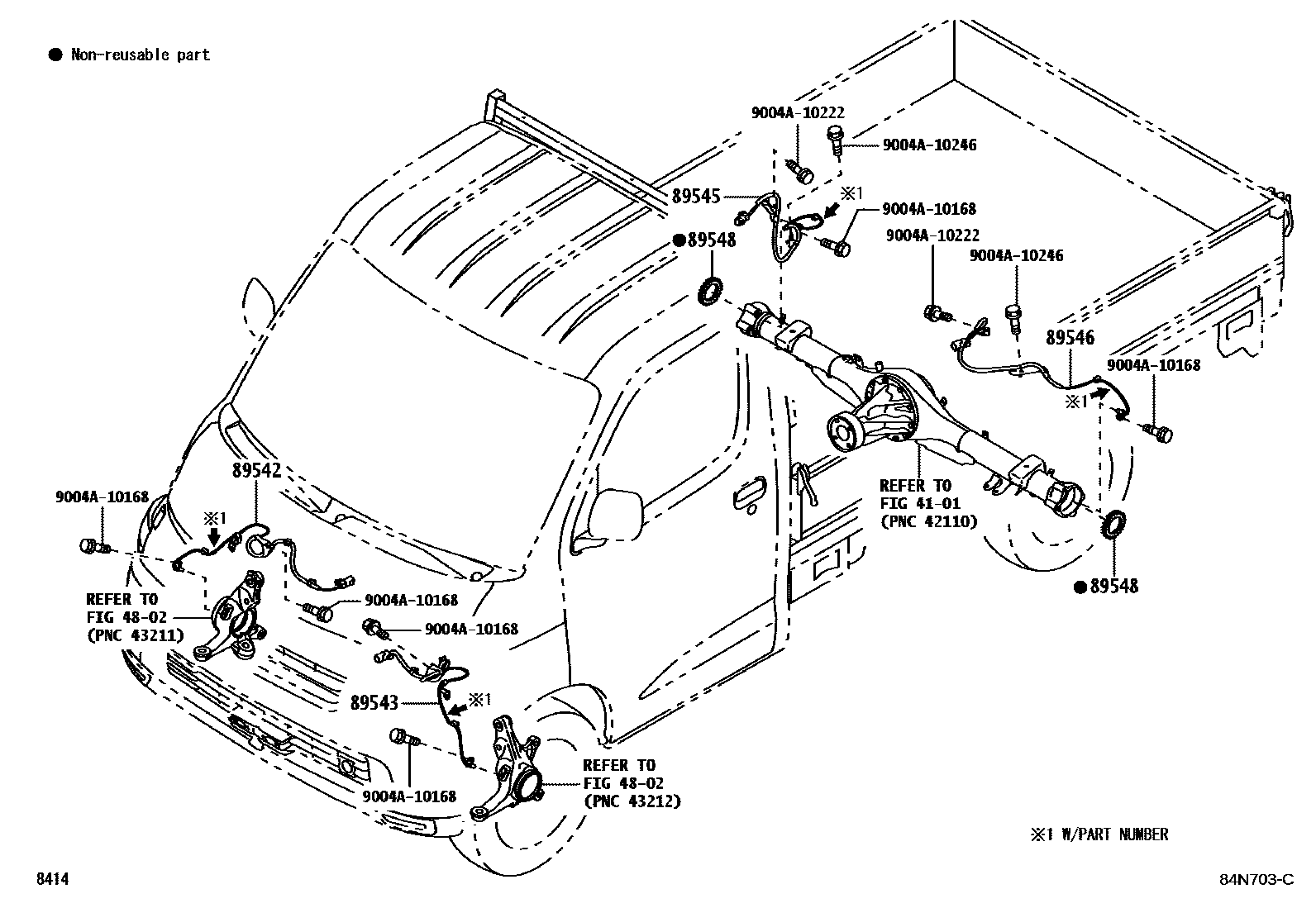

Toyota TOWNACE — ABS & VSC

0001 1 0002 1

4101

4802

89542SENSOR, SPEED, FRONT RH

main89542-BZ080iS403¥13,500202202

W/PART NUMBER MARK

main89542-BZ220iS403¥9,000202201-202202

main89542-BZ220iS403¥9,000202202-202310

W/PART NUMBERMARK

89543SENSOR, SPEED, FRONT LH

main89543-BZ160iS403¥13,500202202

W/PART NUMBER MARK

main89543-BZ220iS403¥9,000202202-202310

W/PART NUMBERMARK

main89543-BZ220iS403¥9,000202201-202202

89545SENSOR, SPEED, REAR RH

main89545-BZ060iS403..HRF¥13,500202212

W/PART NUMBER MARK

main89545-BZ070iS403..PIC¥13,500202202

W/PART NUMBER MARK

main89545-BZ080iS403..HRF¥13,500202212-202310

W/PART NUMBERMARK

main89545-BZ090iS403..PIC¥9,000202202-202310

W/PART NUMBERMARK

main89545-BZ090iS403¥9,000202201-202202

89546SENSOR, SPEED, REAR LH

main89546-BZ060iS403..HRF¥13,500202212

W/PART NUMBER MARK

main89546-BZ070iS403..PIC¥13,500202202

W/PART NUMBER MARK

main89546-BZ080iS403..HRF¥13,500202212-202310

W/PART NUMBERMARK

main89546-BZ090iS403..PIC¥16,100202202-202310

W/PART NUMBERMARK

main89546-BZ090iS403¥16,100202201-202202

89548ROTOR, SKID CONTROL SENSOR

main89548-BZ020iS403¥1,710202201

9004A10168

main9004A-10168

9004A10222

main9004A-10222

9004A10246

main9004A-10246¥110

10 parts on this diagram · 2 diagrams in section
