Toyota TANK/ROOMY — WINDSHIELD WASHER

85035NOZZLE SUB-ASSY, WASHER

main85381-B1100iM900,910¥930201611-202009

main85381-B1110iM900,910¥930201611-202009

main85381-B1120iM900,910¥930201611-202009

main85381-B1130iM900,910¥930201611-202009

main85381-B2170iM900,910¥930201611-202009

85301INLET SUB-ASSY, WASHER

main85318-B1020iM900,910¥1,300201611-202009

85310MOTOR AND PUMP ASSY, WINDSHIELD WASHER

main85330-B1010iM900,910¥5,000201611-202009

85330JAR ASSY, WINDSHIELD WASHER

main85315-B1040iM900,910¥3,150201611-202009

85332CCAP, FRONT WASHER TANK

main85316-B1010iM900,910¥200201611-202009

85336DPACKING, WINDSHIELD WASHER JAR

main85336-B2060iM900,910¥220201611-202009

85348JOINT, WINDSHIELD WASHER HOSE, NO.1

main85349-87201iM900,910¥170201611-202009

85348DJOINT, WINDSHIELD WASHER ELBOW, NO.1

main85349-87201iM900,910¥170201809-202009

main85349-87602iM900,910¥180201611-201808

85348FJOINT, WINDSHIELD WASHER ELBOW, NO.3

main85317-B2030iM900,910¥180201611-202009

85355VALVE, WINDSHIELD WASHER HOSE

main85376-B1010iM900,910¥370201611-202009

85369CLAMP

main82711-52090iM900,910¥80201611-202009

85370HOSE ASSY, WINDSHIELD WASHER

main85370-B1440iM900,910¥950201611-202009

85371HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT)

main85355-87701iM900,910¥330201611-202009

85372HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1

main85376-87202iM900,910¥210201611-202009

85372HHOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.3

main85374-B1430iM900,910¥290201611-202009

85372JHOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.4

main85376-87202iM900,910¥210201611-202009

85373HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE)

main85343-97401iM900,910¥320201611-202009

85374HOSE, WINDSHIELD WASHER (FROM NOZZLE TO NOZZLE)

main85343-97401iM900,910¥320201611-202009

85387CLAMP NO.1 (FOR WINDSEIELD WASHER)

main82711-1E340iM900,910¥100201611-202009

9004119965

main90041-19965¥110

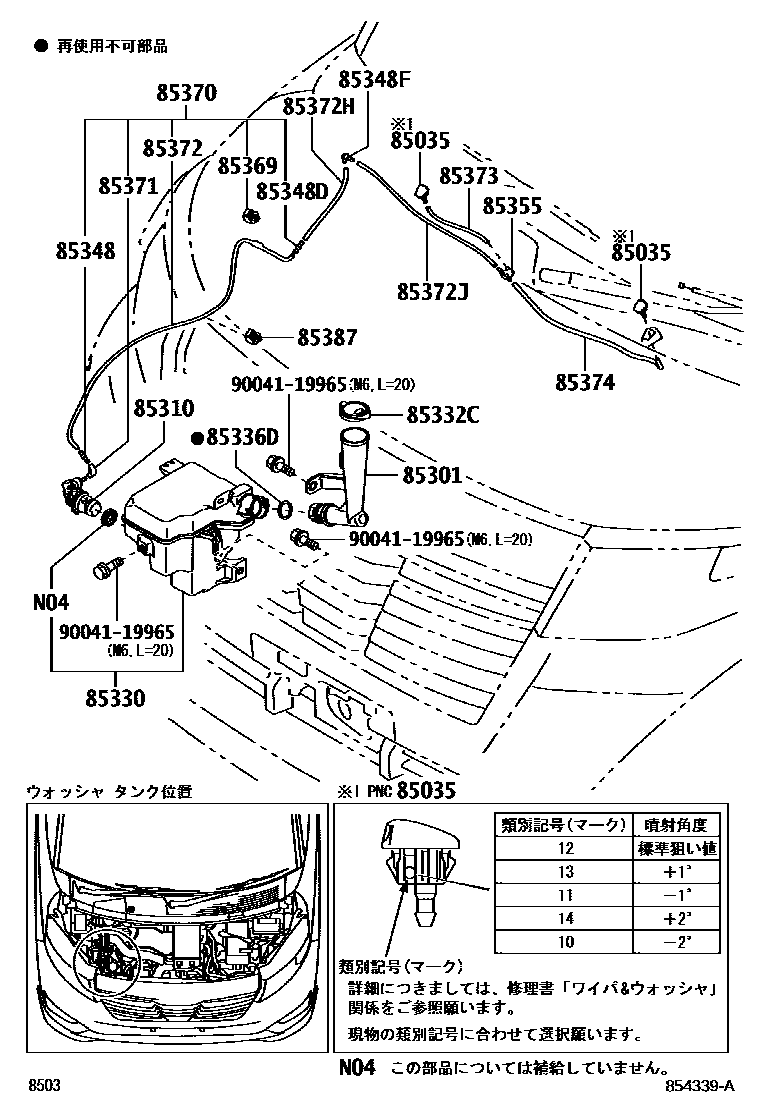

20 parts on this diagram · 1 diagram in section
