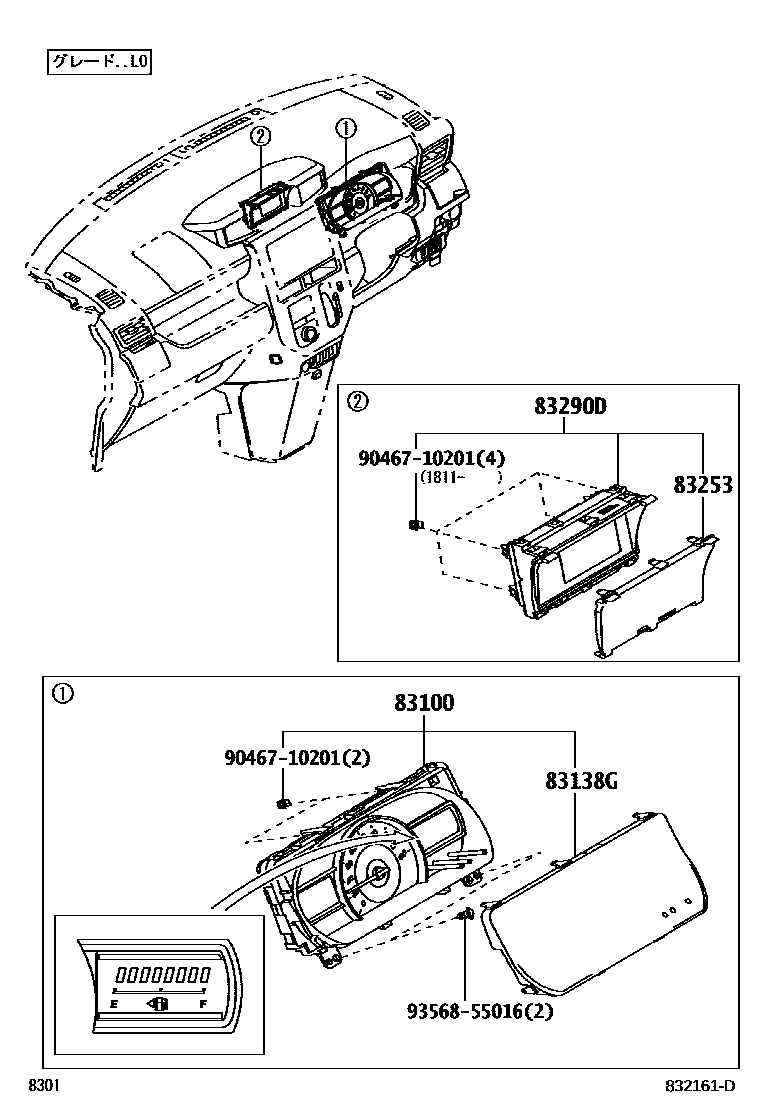

Toyota TANK/ROOMY — METER

0001 1 0002 1

83100METER ASSY, COMBINATION

main83800-B1D90iM900,910..X¥29,000201611-201806

sub83800-B1E70¥29,000

main83800-B1D91iM900,910..X¥34,400201811-202009

main83800-B1E00iM900,910..G¥43,100201611-201806

sub83800-B1E80¥43,100

main83800-B1E01iM900,910..G¥48,600201811-202009

main83800-B1E10iM900,910..CTMG¥43,100201611-201806

sub83800-B1E90¥43,100

main83800-B1E11iM900,910..CTMG¥48,600201811-202009

main83800-B1E70iM900,910..X¥29,000201807-201811

main83800-B1E80iM900,910..G¥43,100201807-201811

main83800-B1E90iM900,910..CTMG¥43,100201807-201811

main83800-B1F00iM900,910..X¥29,000202009

main83800-B1F10iM900,910..G¥43,100202009

main83800-B1F30iM900,910..CTMG¥45,300202009

83138GGLASS, COMBINATION METER

main83852-B1D30iM900,910..X¥1,350201611-202009

main83852-B1E00iM900,910..CTMG,G¥1,350201611-202009

83253GLASS, CENTER DISPLAY

main83253-B1010iM900,910¥1,350201611-202009

83290DMETER ASSY, ACCESSORY

main83290-B1010iM900,910..X¥29,700201611-201811

main83290-B1011iM900,910..X¥25,800201811-202009

main83290-B1030iM900,910..CTMG,G¥50,300201611-201811

main83290-B1031iM900,910..CTMG,G¥43,700201811-202009

main83290-B1050iM900,910..X¥23,400202009

main83290-B1060iM900,910..CTMG,G¥39,700202009

9046710201

main90467-10201¥80

9356855016

main93568-55016¥70

6 parts on this diagram · 2 diagrams in section
