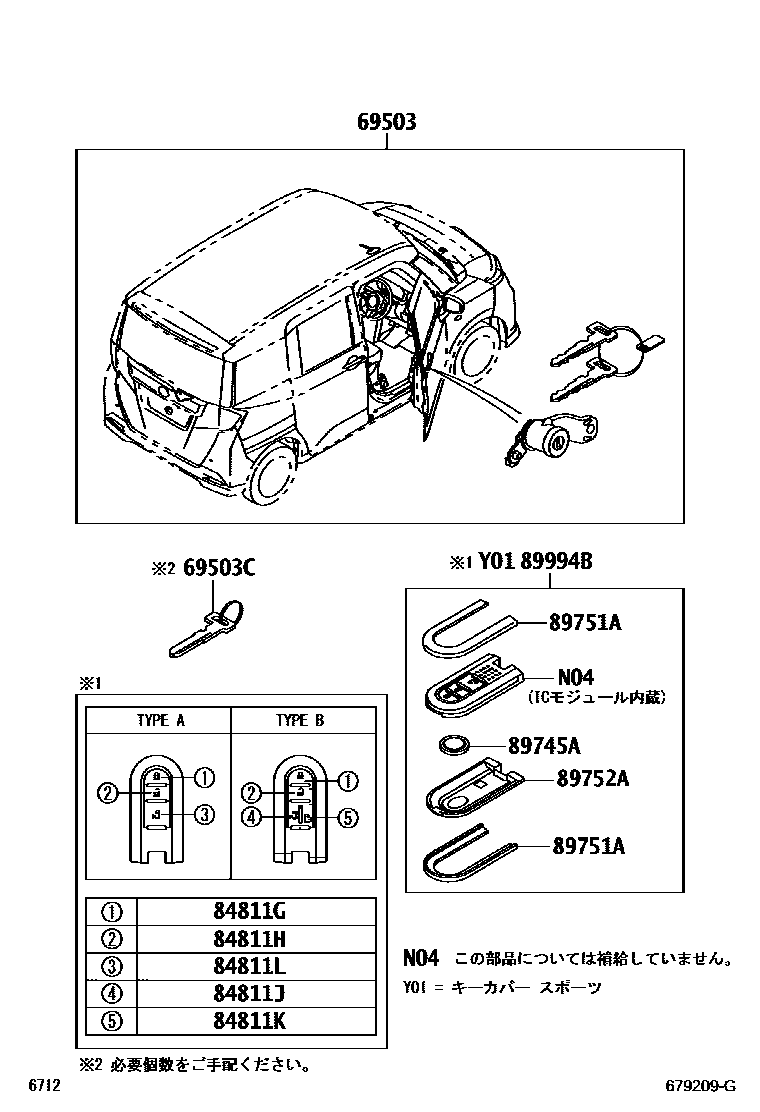

Toyota TANK/ROOMY — LOCK CYLINDER SET

0001 1 0002 1

69503CYLINDER SET, LOCK

main69005-B1610iM900,910¥2,750201611-202009

main69005-B1640iM900,910¥2,680202009

69503CKEY, SUB

main69516-B1050iM900,910¥490202009

main69516-B2140iM900,910¥900201611-202009

84811GKNOB, SWITCH, NO.1

main84811-B2010iM900,910¥110201611-202009

84811HKNOB, SWITCH, NO.2

main84811-B2020iM900,910¥110201611-202009

84811JKNOB, SWITCH, NO.3

main84811-B2030iM900,910..CTMG,G¥120201611-202009

84811KKNOB, SWITCH, NO.4

main84811-B2040iM900,910..CTMG,G¥120201611-202009

84811LKNOB, SWITCH, NO.5

main84811-B2050iM900,910..X¥120201611-202009

89745ABATTERY, TRANSMITTER

main89745-B2060iM900,910¥310202009

�b�q�Q�O�R�Q

sub89745-B2020¥470

main89745-B2060iM900,910¥310201611-202009

�b�q�Q�O�R�Q

sub89745-B2020¥470

89751ACOVER, TRANSMITTER HOUSING

main89072-B1090iM900,910..X¥2,890202009

main89072-B1100iM900,910..CTMG,G¥2,890202009

main89751-B2120iM900,910¥610201611-202009

89752ACASE, TRANSMITTER HOUSING

main89752-B1030iM900,910¥1,830201611-202009

main89752-B2080iM900,910¥1,830202009

89994BTRANSMITTER, ELECTRICAL KEY

main89994-B1270iM900,910..X¥16,700202009

main89994-B1280iM900,910..CTMG,G¥18,300202009

main89994-B2430iM900,910..X¥18,500201611-202009

�^�C�v�@�`

main89994-B2440iM900,910..CTMG,G¥20,100201611-202009

�^�C�v�@�a

11 parts on this diagram · 2 diagrams in section
