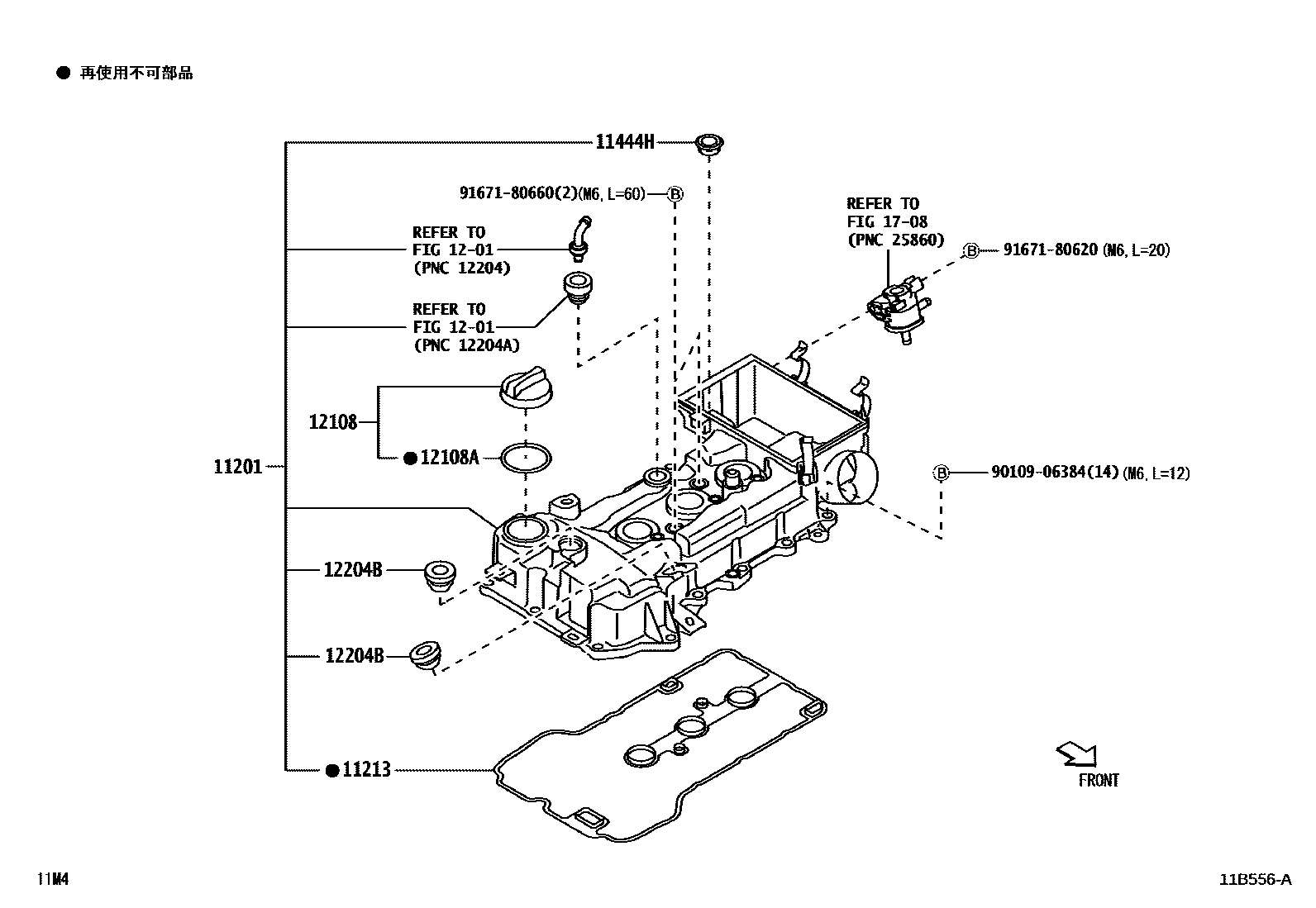

Toyota TANK/ROOMY — CYLINDER HEAD

0001 1������������� 0002 1��������� 0003 1��������� 0004 1������������� 0005 1��������� 0006 1���������

11201COVER SUB-ASSY, CYLINDER HEAD

main11210-B1030i1KRFE..M900,910¥18,100201611-201810

sub11210-B1031¥18,100

main11210-B1031i1KRFE..M900,910¥18,100202009

main11210-B1031i1KRFE..M900,910¥18,100201811-202009

main11210-B1040i1KRVET..M900¥17,400201611-201810

sub11210-B1041¥17,400

main11210-B1041i1KRVET..M900¥17,400202009

main11210-B1041i1KRVET..M900¥17,400201811-202009

11213GASKET, CYLINDER HEAD COVER

main11213-B1030i1KRFE..M900,910¥1,490201611-201810

sub11213-B1031¥1,330

main11213-B1031i1KR#..M900,910¥1,330202009

main11213-B1031i1KR#..M900,910¥1,330201811-202009

main11213-B1040i1KRVET..M900¥1,490201611-201810

sub11213-B1031¥1,330

11444HPLUG, HOLE(FOR CYLINDER HEAD)

main90048-71323i1KRFE..M900,910¥110201611-202009

main90048-71323i1KRFE..M900,910¥110202009

1201

12108CAP SUB-ASSY, OIL FILLER

main12180-38010i1KR#..M900,910¥640201611-202009

main12180-38010i1KR#..M900,910¥640202009

12108AGASKET(FOR OIL FILLER CAP)

main90430-35001i1KR#..M900,910¥120201611-202009

main90430-35001i1KR#..M900,910¥120202009

12204BGROMMET(FOR VENTILATION SYSTEM)

main90480-12020i1KRFE..M900,910¥180201611-202009

main90480-12020i1KRFE..M900,910¥180202009

1708

9010906384

main90109-06384¥80

9167180620

main91671-80620¥60

9167180660

main91671-80660¥80

11 parts on this diagram · 6 diagrams in section
