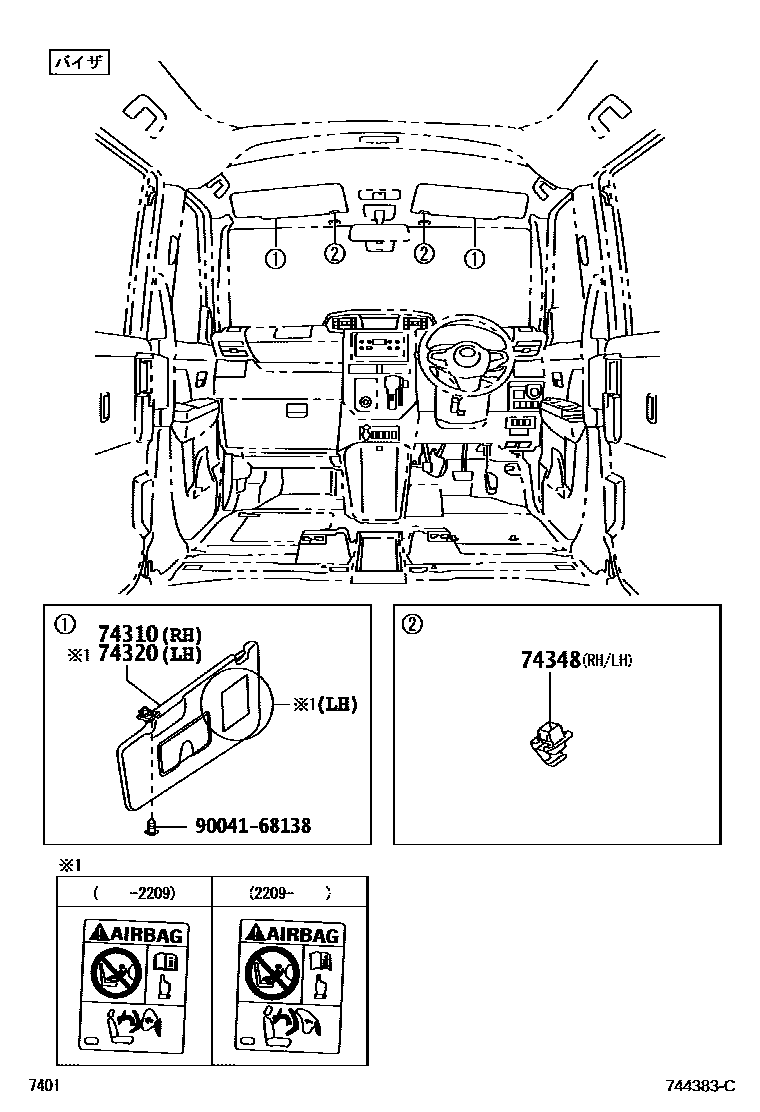

Toyota TANK/ROOMY — ARMREST & VISOR

0001 1 0002 1 0003 1

74310VISOR ASSY, RH

main74310-B1190-B0iM900,910201611-201809

LT.GRAY,TRIM1#

sub74310-B1240¥4,020

main74310-B1240-B0iM900,910..G,X202009

LT.GRAY,TRIM4#

main74310-B1240-B0iM900,910201810-202009

LT.GRAY,TRIM1#

main74310-B1240-B0iM900,910..G,X202009

LT.GRAY,TRIM2#

74320VISOR ASSY, LH

main74320-B1220-B0iM900,910201611-202009

LT.GRAY,TRIM1#

main74320-B1220-B0iM900,910..G,X202009-202209

LT.GRAY,TRIM4#

main74320-B1220-B0iM900,910..G,X202009-202209

LT.GRAY,TRIM2#

main74320-B1340-B0iM900,910..G,X202209

LT.GRAY,TRIM4#

main74320-B1340-B0iM900,910..G,X202209

LT.GRAY,TRIM2#

74348HOLDER, VISOR

main74348-B2020-B0iM900,910201611-202009

LT.GRAY,TRIM1#

main74348-B2020-B0iM900,910..G,X202009

LT.GRAY,TRIM4#

main74348-B2020-B0iM900,910..G,X202009

LT.GRAY,TRIM2#

9004168138

main90041-68138¥110

4 parts on this diagram · 3 diagrams in section
