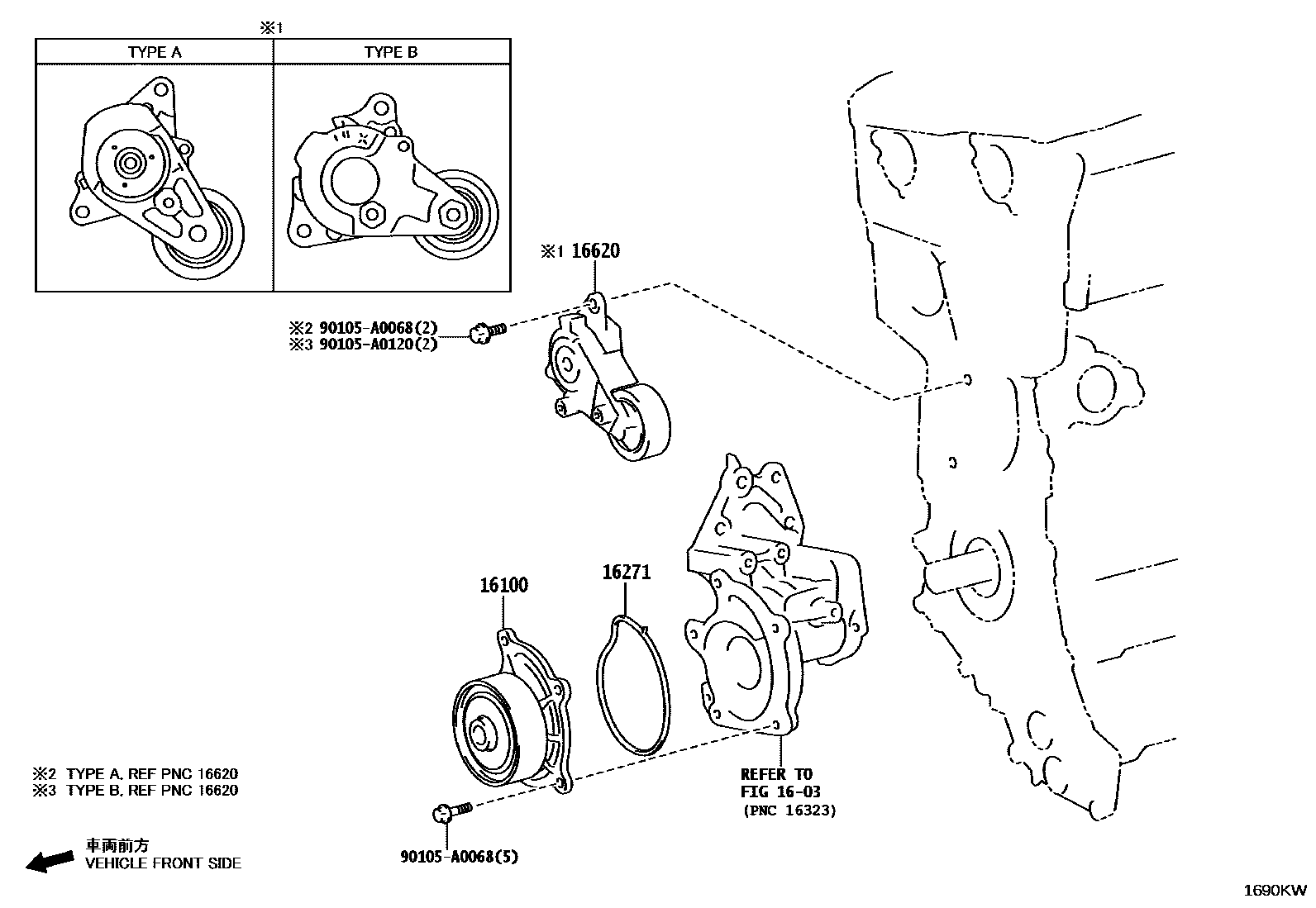

Toyota TACOMA — WATER PUMP

0001 1 0002 1 0003 1TRD PRO PACKAGE,TRAILHUNTER P

1603

16100PUMP ASSY, ENGINE WATER

main16100-25040iT24..TZNH47¥10,000202404

main16100-F0010iT24..TZNA4#202312

16271GASKET, WATER PUMP

main16271-25020iT24..TZNA4#¥590202312

main16271-25030iT24..TZNH47¥520202404

16620TENSIONER ASSY, V-RIBBED BELT

main16620-F0070iT24..TZNA4#202312

TYPE A:REFER ILLUST.

main16620-F0080iT24..TZNH47202404

TYPE A:REFER ILLUST.

90105A0068

main90105-A0068

90105A0120

main90105-A0120

6 parts on this diagram · 3 diagrams in section
