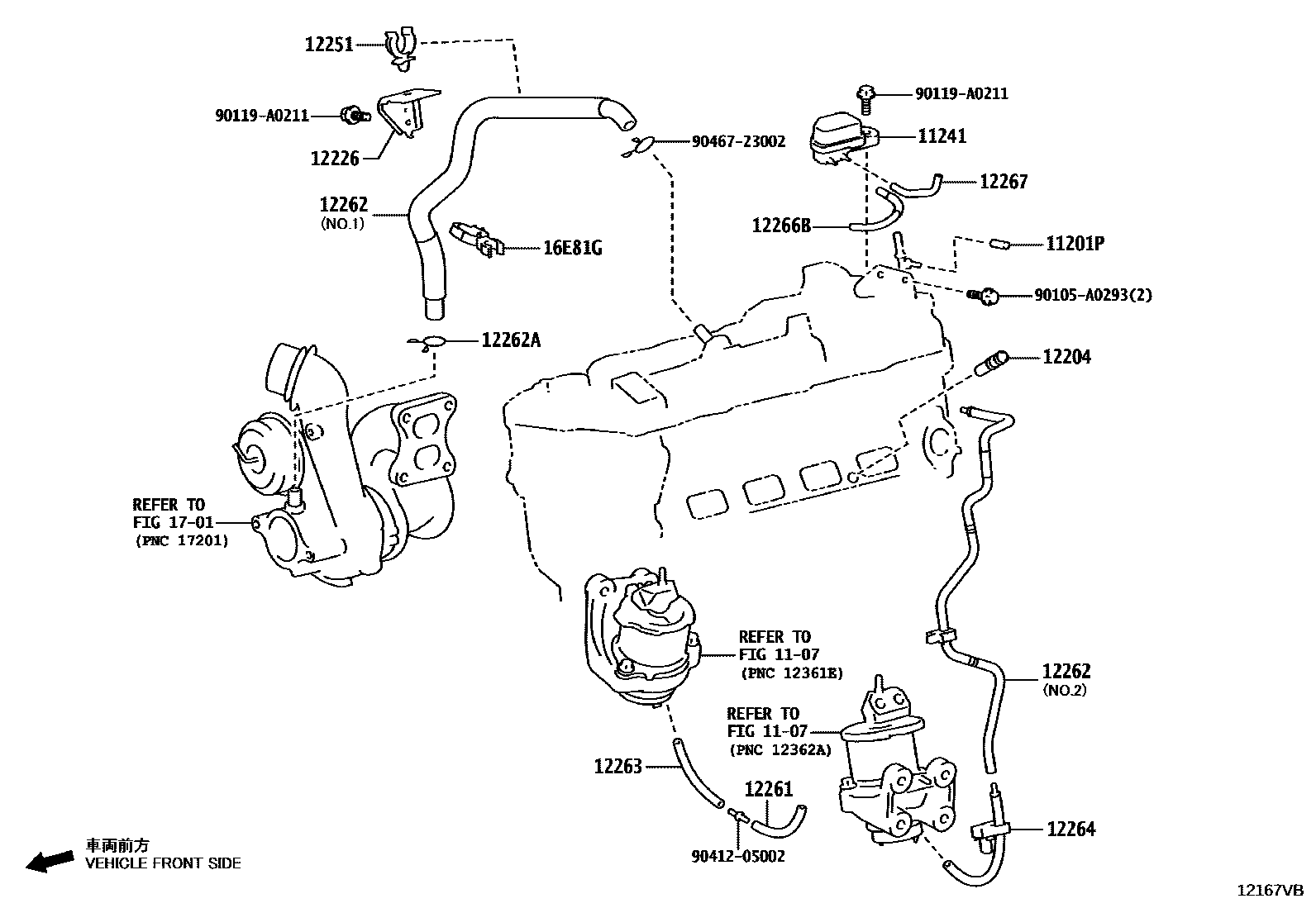

Toyota TACOMA — VENTILATION HOSE
1107
11201PPLUG(FOR CYLINDER HEAD COVER)
11241CHAMBER, PCV PRESSURE SENSOR
12204VALVE SUB-ASSY, VENTILATION
12226BRACKET, VENTILATION HOSE
12251CLAMP, VENTILATION TUBE
12261HOSE, VENTILATION
12262HOSE, VENTILATION, NO.2
NO.1:REFER ILLUST.
NO.2:REFER ILLUST.
12262ACLIP(FOR VENTILATION HOSE NO.2)
12263HOSE, VENTILATION, NO.3
12264HOSE, VENTILATION, NO.4
12266BHOSE, VENTILATION PRESSURE SENSOR, NO.1
12267HOSE, VENTILATION PRESSURE SENSOR, NO.2
16E81GCLAMP, HOSE
1701
90105A0293
main90105-A0293
90119A0211
main90119-A0211
9041205002
9046723002
19 parts on this diagram · 1 diagram in section
