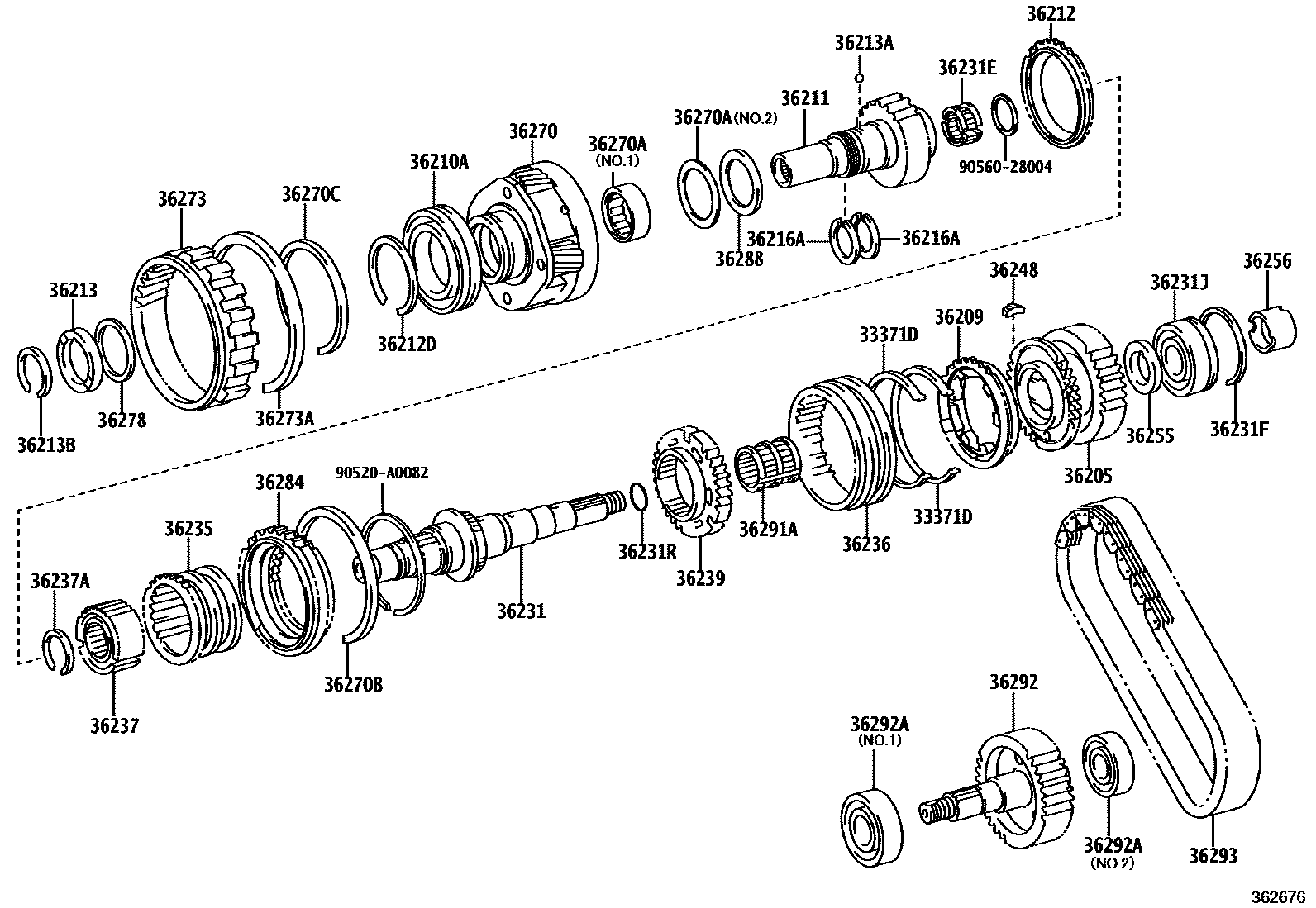

Toyota TACOMA — TRANSFER GEAR
33371DSPRING, SYNCHROMESH SHIFTING KEY, NO.1 (FOR TRANSFER)
36205SPROCKET SUB-ASSY, TRANSFER DRIVE
TRAILHUNTER PACKAGE
36209RING SET, TRANSFER SYNCHRONIZER
36210ABEARING (FOR TRANSFER INPUT SHAFT)
TRAILHUNTER PACKAGE
TRAILHUNTER PACKAGE,(J)
(J)
(J)
(L)
36211SHAFT, TRANSFER INPUT
TRAILHUNTER PACKAGE
36212GEAR, TRANSFER INPUT
36212DRING, SHAFT SNAP (FOR TRANSFER INPUT BEARING)
T=1.45,MARK 1
T=1.45,MARK 1,TRAILHUNTER PACKAGE
T=1.50,MARK 2
T=1.55,MARK 3
T=1.60,MARK 4
T=1.65,MARK 5
T=1.45,MARK 1
T=1.50,MARK 2
T=1.55,MARK 3
T=1.60,MARK 4
T=1.65,MARK 5
36213STOPPER, TRANSFER INPUT GEAR
TRAILHUNTER PACKAGE
36213ABALL (FOR TRANSFER INPUT GEAR STOPPER)
TRAILHUNTER PACKAGE
36213BRING, SHAFT SNAP (FOR TRANSFER INPUT GEAR STOPPER)
T=2.10-2.15,TRAILHUNTER PACKAGE
T=2.10-2.15
T=2.15-2.20
T=2.20-2.25
T=2.25-2.30
T=2.30-2.35
T=2.35-2.40
T=2.40-2.45
T=2.45-2.50
T=2.50-2.55
T=2.55-2.60
T=2.60-2.65
T=2.65-2.70
T=2.70-2.75
T=2.75-2.80
T=2.80-2.85
T=2.85-2.90
T=2.90-2.95
T=2.95-3.00
T=3.00-3.05
T=2.10-2.15
T=2.15-2.20
T=2.20-2.25
T=2.25-2.30
T=2.30-2.35
T=2.35-2.40
T=2.40-2.45
T=2.45-2.50
T=2.50-2.55
T=2.55-2.60
T=2.60-2.65
T=2.65-2.70
T=2.70-2.75
T=2.75-2.80
T=2.80-2.85
T=2.85-2.90
T=2.90-2.95
T=2.95-3.00
T=3.00-3.05
36216ARING, TRANSFER INPUT SHAFT SEAL, NO.1
36231SHAFT, TRANSFER OUTPUT, REAR
TRAILHUNTER PACKAGE
36231EBEARING, NEEDLE ROLLER (FOR TRANSFER OUTPUT SHAFT FRONT)
TRAILHUNTER PACKAGE,NO.1:REFER ILLUST.
NO.1:REFER ILLUST.
NO.2:REFER ILLUST.
36231FRING, SHAFT SNAP (FOR TRANSFER OUTPUT SHAFT)
T=1.65
T=1.65,TRAILHUNTER PACKAGE
T=1.65,ID=78.1
36231JBEARING, RADIAL BALL (FOR TRANSFER OUTPUT SHAFT REAR)
TRAILHUNTER PACKAGE
36231RRING, O (FOR TRANSFER OUTPUT SHAFT)
36235SLEEVE, TRANSFER HIGH & LOW CLUTCH
TRAILHUNTER PACKAGE
36236SLEEVE, FRONT DRIVE CLUTCH
TRAILHUNTER PACKAGE
36237HUB, TRANSFER CLUTCH
TRAILHUNTER PACKAGE
36237ARING, SHAFT SNAP (FOR TRANSFER CLUTCH HUB)
T=2.10-2.15
T=2.15-2.20
T=2.20-2.25
T=2.25-2.30
T=2.30-2.35
T=2.35-2.40
T=2.40-2.45
T=2.45-2.50
T=2.50-2.55
T=2.00-2.05
T=2.05-2.10
36239HUB, TRANSFER DRIVE CLUTCH
36248KEY, SYNCHROMESH SHIFTING, TRANSFER DRIVE, NO.1
36255SPACER, TRANSFER OUTPUT SHAFT, NO.1
TRAILHUNTER PACKAGE
36256SPACER, TRANSFER OUTPUT SHAFT, NO.2
TRAILHUNTER PACKAGE
36270GEAR ASSY, TRANSFER LOW PLANETARY
TRAILHUNTER PACKAGE
36270ABEARING (FOR TRANSFER LOW PLANETARY GEAR)
NO.1:REFER ILLUST.
TRAILHUNTER PACKAGE,NO.1:REFER ILLUST.
NO.1:REFER ILLUST.
NO.2:REFER ILLUST.
NO.2:REFER ILLUST.
36270BRING, SHAFT SNAP (FOR TRANSFER LOW PLANETARY GEAR)
T=2.0
T=2.0,TRAILHUNTER PACKAGE
T=1.8
36270CRING, SHAFT SNAP(FOR TRANSFER LOW PLANETARY GEAR BEARING)
TRAILHUNTER PACKAGE
36273GEAR, TRANSFER LOW PLANETARY RING
TRAILHUNTER PACKAGE
36273ARING, HOLE SNAP (FOR TRANSFER LOW PLANETARY RING GEAR)
TRAILHUNTER PACKAGE
36278WASHER, MANUAL TRANSFER PLANETARY CARRIER
T=0.91-1.09
T=0.91-1.09
T=0.91-1.09,TRAILHUNTER PACKAGE
36284PIECE, TRANSFER LOW PLANETARY GEAR SPLINE
TRAILHUNTER PACKAGE
36288RACE, TRANSFER THRUST BEARING, NO.1
TRAILHUNTER PACKAGE
36291ABEARING (FOR TRANSFER DRIVE SPROCKET)
TRAILHUNTER PACKAGE
36292SPROCKET, TRANSFER DRIVEN
TRAILHUNTER PACKAGE
36292ABEARING (FOR TRANSFER DRIVEN SPROCKET)
TRAILHUNTER PACKAGE,(J),NO.1:REFER ILL.
(J),NO.1:REFER ILL.
(J),NO.1:REFER ILL.
TRAILHUNTER PACKAGE
(L),NO.1:REFER ILL.
NO.2:REFER ILLUST.
36293CHAIN, TRANSFER FRONT DRIVE
90520A0082
main90520-A0082
9056028004
39 parts on this diagram · 2 diagrams in section
