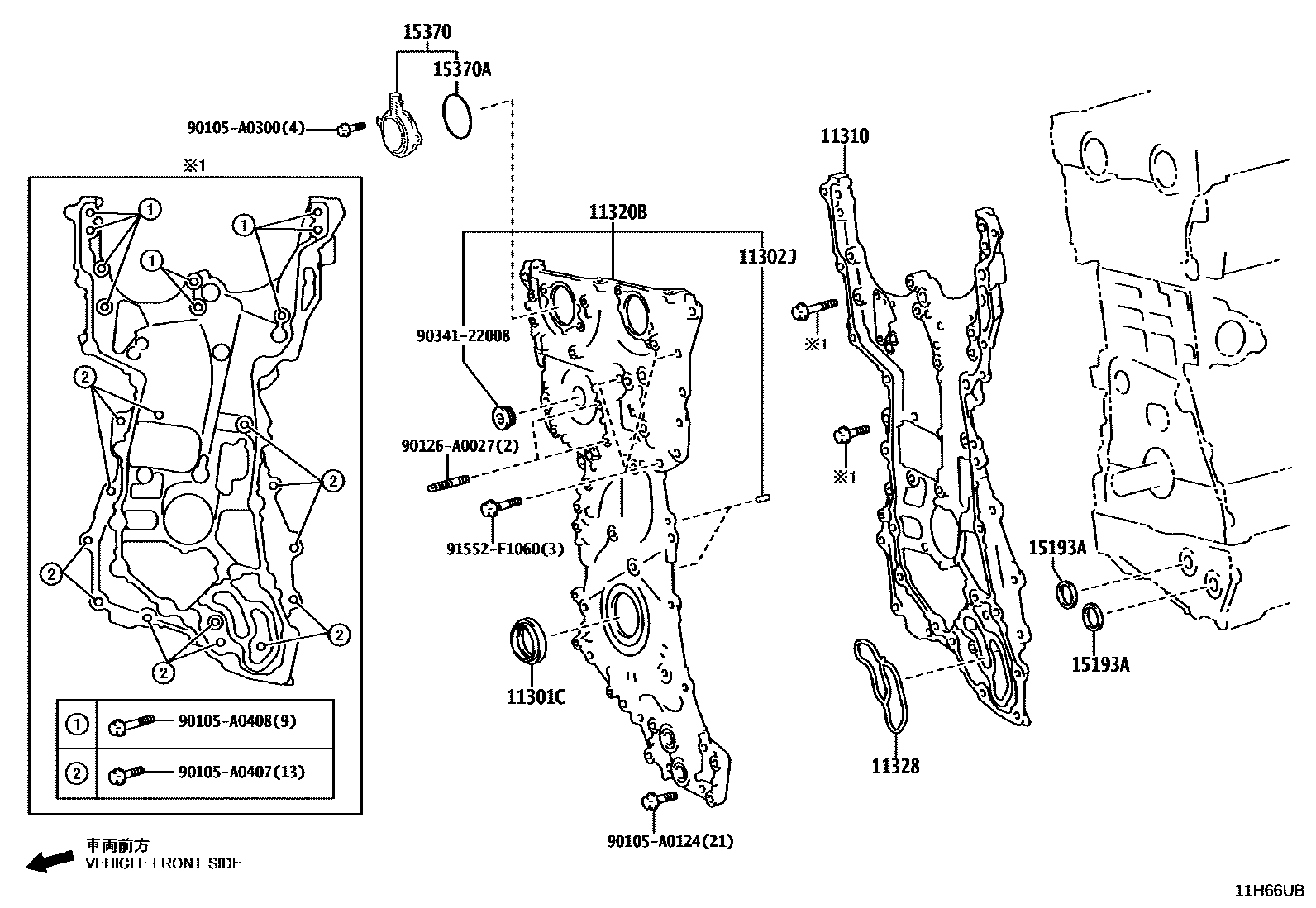

Toyota TACOMA — TIMING GEAR COVER & REAR END PLATE

11301CSEAL, OIL(FOR TIMING GEAR CASE OR TIMING CHAIN CASE)

main90311-A0033iT24..TZNA4#,TZNH47202312

11302JPIN, STRAIGHT(FOR TIMING CHAIN COVER)

main90250-A0028iT24..TZNA4#,TZNH47202312

11310COVER ASSY, TIMING CHAIN

main11310-F0060iT24..TZNA4#,TZNH47202312

11320BCOVER ASSY, TIMING CHAIN, NO.2

main11320-F0050iT24..TZNA4#,TZNH47202312-202411

main11320-F0051iT24..TZNA4#,TZNH47202412

11328GASKET, TIMING GEAR OR CHAIN COVER

main11328-25030iT24..TZNA4#,TZNH47202312

15193AGASKET, OIL PUMP

main15197-25020iT24..TZNA4#,TZNH47202312

15370SOLENOID ASSY, CAM TIMING OIL CONTROL

main15370-F0020iT24..TZNA4#,TZNH47202312

15370ARING, O(FOR CAM TIMING OIL CONTROL SOLENOID)

main90301-T0079iT24..TZNA4#,TZNH47202312

90105A0124

main90105-A0124

90105A0300

main90105-A0300

90105A0407

main90105-A0407

90105A0408

main90105-A0408

90126A0027

main90126-A0027

9034122008

main90341-22008¥390

91552F1060

main91552-F1060¥160

15 parts on this diagram · 1 diagram in section
