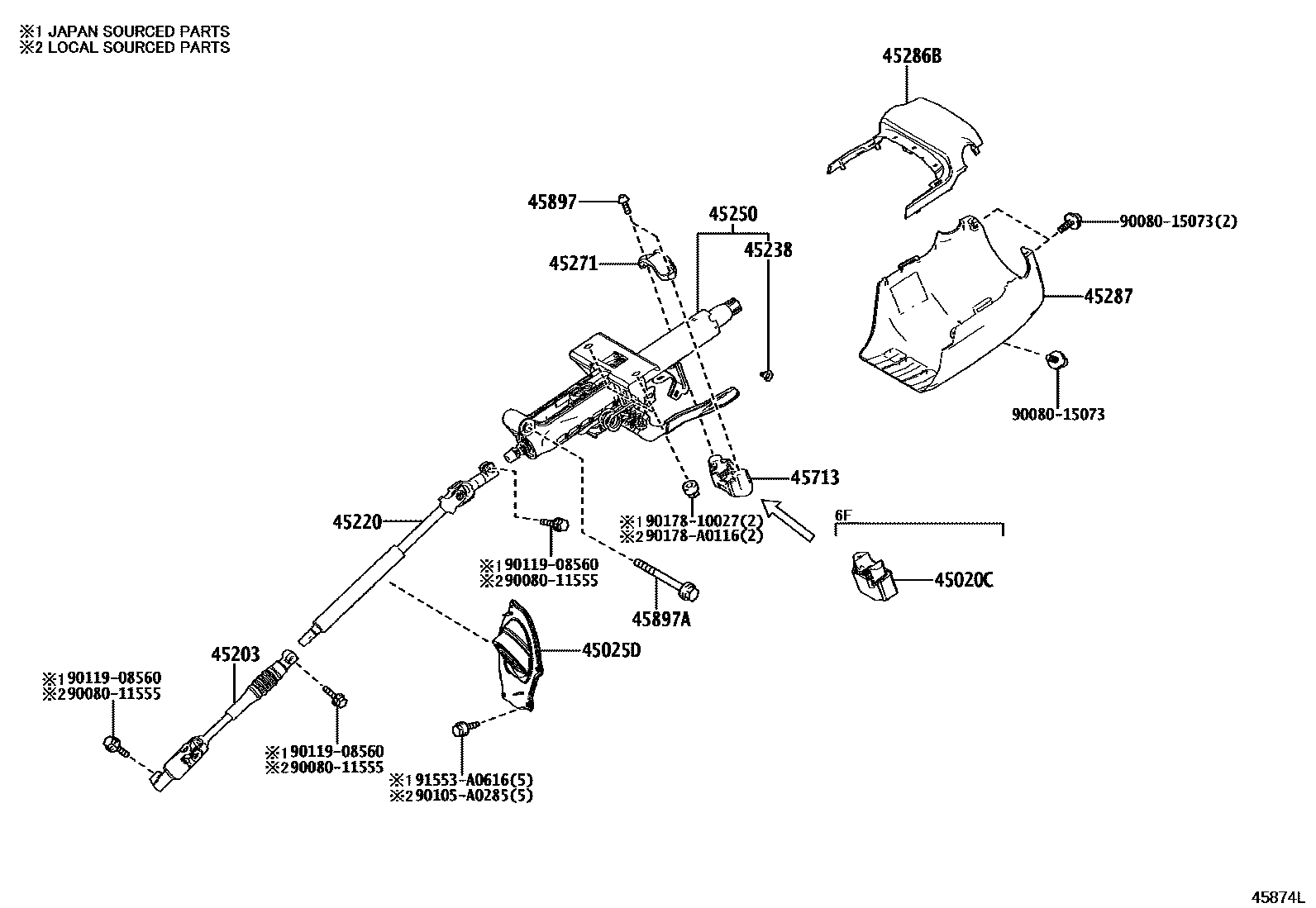

Toyota TACOMA — STEERING COLUMN & SHAFT

45020CACTUATOR ASSY, STEERING LOCK(W/ECU)

main45020-08020iTZNA45..6F202312

45025DCOVER SUB-ASSY, STEERING COLUMN HOLE, NO.1

main45025-04060iTZNA4#,TZNH47202312

45203SHAFT SUB-ASSY, STEERING INTERMEDIATE, NO.2

main45203-04040iTZNA4#,TZNH47202312

45220SHAFT ASSY, STEERING INTERMEDIATE

main45220-04030iTZNA4#,TZNH47202312

45238CLAMP, BOLT(FOR STEERING FLEXIBLE COUPLING)

main45238-52010iTZNA4#,TZNH47¥70202312

45250COLUMN ASSY, STEERING

main45250-06B00iTZNA4#,TZNH47..ATM,CVT202312

main45250-07191iTZNA45..6F202312

45271CLAMP, STEERING COLUMN, UPPER

main45271-08010iTZNA4#,TZNH47202312

45286BCOVER, STEERING COLUMN, UPR

main45286-06330-C0iTZNA40,45202312

BLACK,TRIM1#,2#

main45286-06330-C0iTZNA40,45202312

BLACK,TRIM2#

main45286-06330-C0iTZNH47202404

BLACK,TRIM1#,2#,3#,6#

45287COVER, STEERING COLUMN, LWR

main45287-06420-C0iTZNA40,45202312

BLACK,TRIM1#,2#

main45287-06420-C0iTZNA40,45202312

BLACK,TRIM2#

main45287-06420-C0iTZNH47202404

BLACK,TRIM1#,2#,3#,6#

45713DUMPER, STEERING SHAKE

main45713-AK010iTZNA4#,TZNH47..ATM,CVT202312

45897BOLT, STEERING LOCK SET

main45897-08010iTZNA4#,TZNH47¥200202312

45897ABOLT, TILT STEERING PAWL SET

main90119-10981iTZNA4#,TZNH47¥190202312

(J)

main90119-A0362iTZNA4#,TZNH47202312

(L)

9008011555

main90080-11555

9008015073

main90080-15073

90105A0285

main90105-A0285

9011908560

main90119-08560¥110

9017810027

main90178-10027¥100

90178A0116

main90178-A0116

91553A0616

main91553-A0616¥60

19 parts on this diagram · 1 diagram in section
