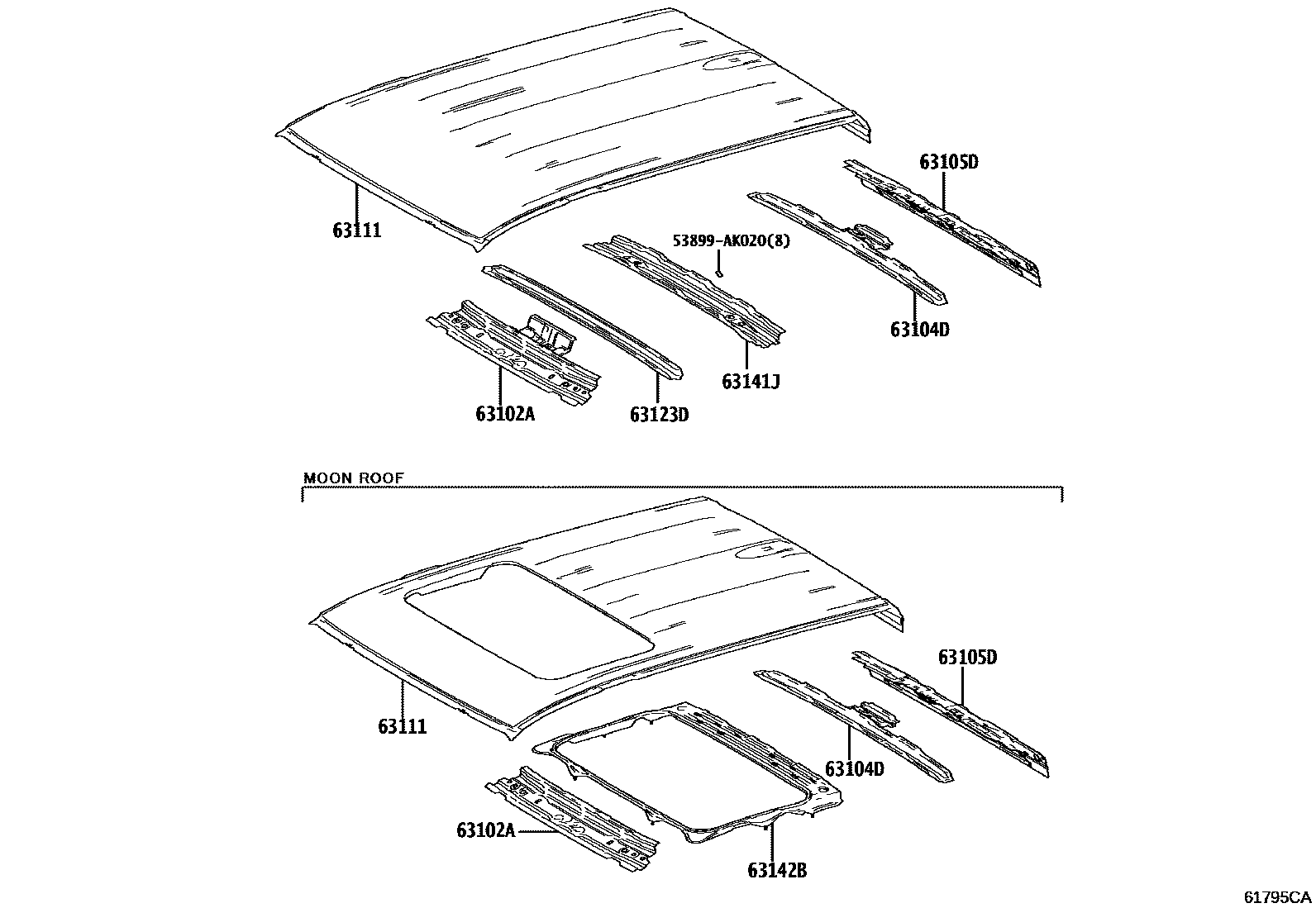

Toyota TACOMA — ROOF PANEL & BACK PANEL

0001 1ROOF PANEL 0002 1MOON ROOF 0003 1BACK WINDOW 0004 1ROOF RACK 0005 1ROOF PANEL

63102APANEL SUB-ASSY, WINDSHIELD HEADER

main63102-AK900iTZNA4#202312

main63102-AK901iTZNH47202404

63104DREINFORCEMENT SUB-ASSY, ROOF PANEL, NO.2

main63104-AK010iTZNA4#,TZNH47..DCB202312

63105DFRAME SUB-ASSY, BACK WINDOW, UPPER

main63105-AK010iTZNA4#,TZNH47202312

63111PANEL, ROOF

main63111-AK010iTZNA4#..DCB202312

main63111-AK020iTZNH47202404

main63111-AK030iTZNA4#..LCB202403

63123DREINFORCEMENT, ROOF PANEL, FRONT RH

main63123-AK010iTZNA4#202312

63141JREINFORCEMENT, ROOF PANEL

main63141-AK010iTZNA4#..DCB202312

63142BREINFORCEMENT, ROOF PANEL, REAR

main63142-AK010iTZNH47202404

53899AK020SILENCER

main53899-AK020

8 parts on this diagram · 5 diagrams in section
