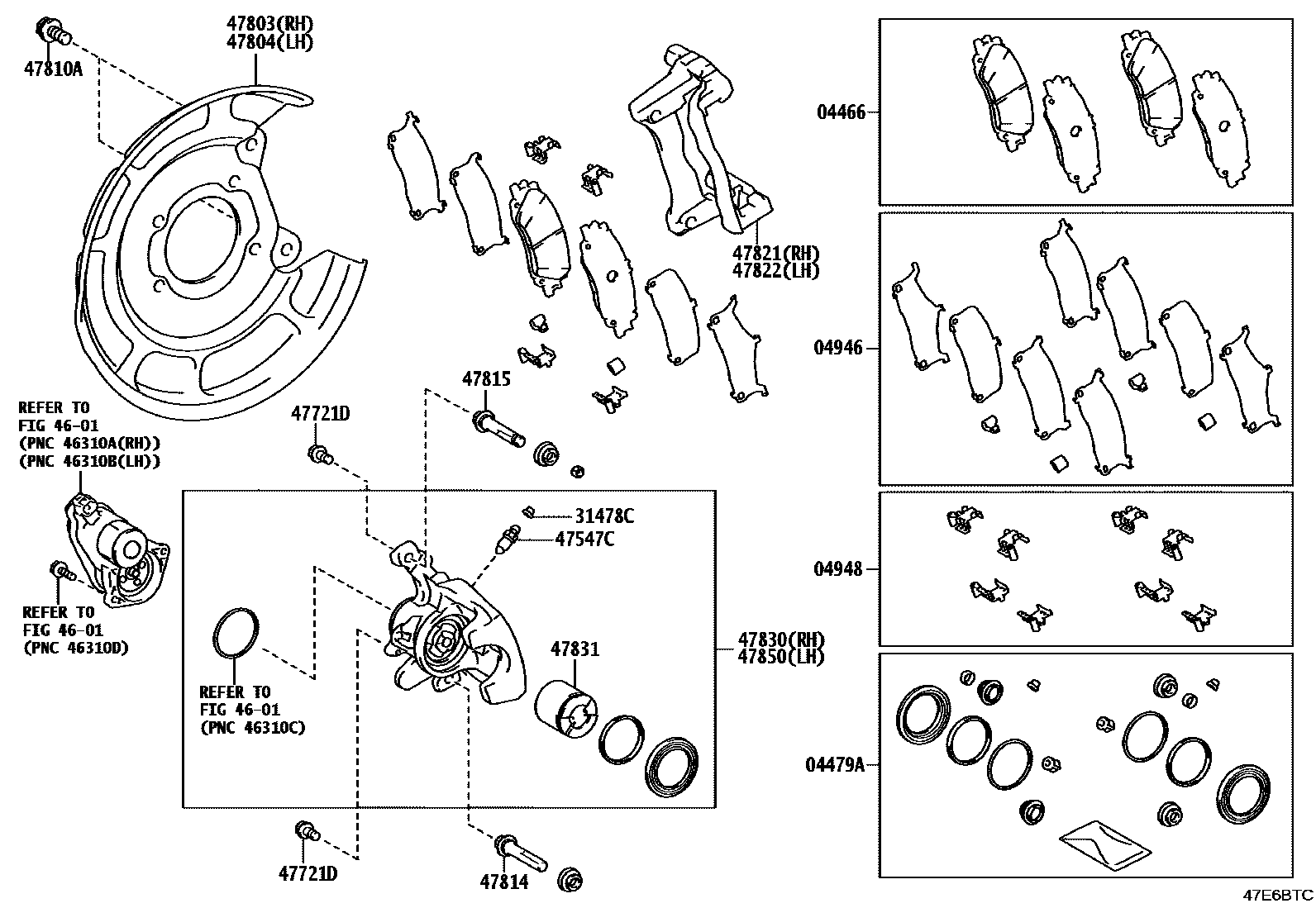

Toyota TACOMA — REAR DISC BRAKE CALIPER & DUST COVER

04466PAD KIT, DISC BRAKE, REAR

main04466-04010iTZNA4#202312

MARK ADVICS VC123

main04466-57010iTZNH47¥8,000202404

MARK ADVICS VC107

04479ACYLINDER KIT, DISC BRAKE, REAR

main04479-02500iTZNH47202404

main04479-04050iTZNA4#202312

04946SHIM KIT, ANTI SQUEAL(FOR REAR DISC BRAKE)

main04946-02210iTZNA4#,TZNH47202312

04948FITTING KIT, DISC BRAKE, REAR

main04948-02200iTZNA4#,TZNH47202312

31478CCAP, BLEEDER PLUG(FOR REAR DISC BRAKE)

main31478-30010iTZNA4#,TZNH47¥160202312

4601

47547CPLUG, BLEEDER(FOR REAR DISC BRAKE)

main90016-AJ005iTZNA4#,TZNH47202312

47721DBOLT(FOR REAR DISC BRAKE CYLINDER MOUTING)

main90016-AA616iTZNA4#,TZNH47202312

47803COVER SUB-ASSY, DISC BRAKE DUST, REAR RH

main47803-04010iTZNA4#202312

main47803-60012iTZNH47¥15,900202404

47804COVER SUB-ASSY, DISC BRAKE DUST, REAR LH

main47804-04010iTZNA4#202312

main47804-60012iTZNH47¥15,900202404

47810ABOLT, HEXAGON(FOR REAR CALIPER)

main90119-A0282iTZNA4#,TZNH47¥240202312

47814PIN, CYLINDER SLIDE, NO.1(FOR REAR DISC BRAKE)

main47814-0C040iTZNA4#,TZNH47202312

47815PIN, REAR CYLINDER SLIDE, NO.2(FOR REAR DISC BRAKE)

main47815-0C040iTZNA4#,TZNH47202312

47821MOUNTING, REAR DISC BRAKE CYLINDER, RH

main47821-04010iTZNA4#202312

main47821-0C040iTZNH47202404

47822MOUNTING, REAR DISC BRAKE CYLINDER, LH

main47822-04010iTZNA4#202312

main47822-0C040iTZNH47202404

47830CYLINDER ASSY, DISC BRAKE, REAR RH

main47830-04010iTZNA4#202312

main47830-0C040iTZNH47202404

47831PISTON, REAR DISC BRAKE

main47831-04010iTZNA4#202312

main47831-0C040iTZNH47202404

47850CYLINDER ASSY, DISC BRAKE, REAR LH

main47850-04010iTZNA4#202312

main47850-0C040iTZNH47202404

18 parts on this diagram · 1 diagram in section
