Toyota TACOMA — IGNITION COIL & SPARK PLUG / GLOW PLUG

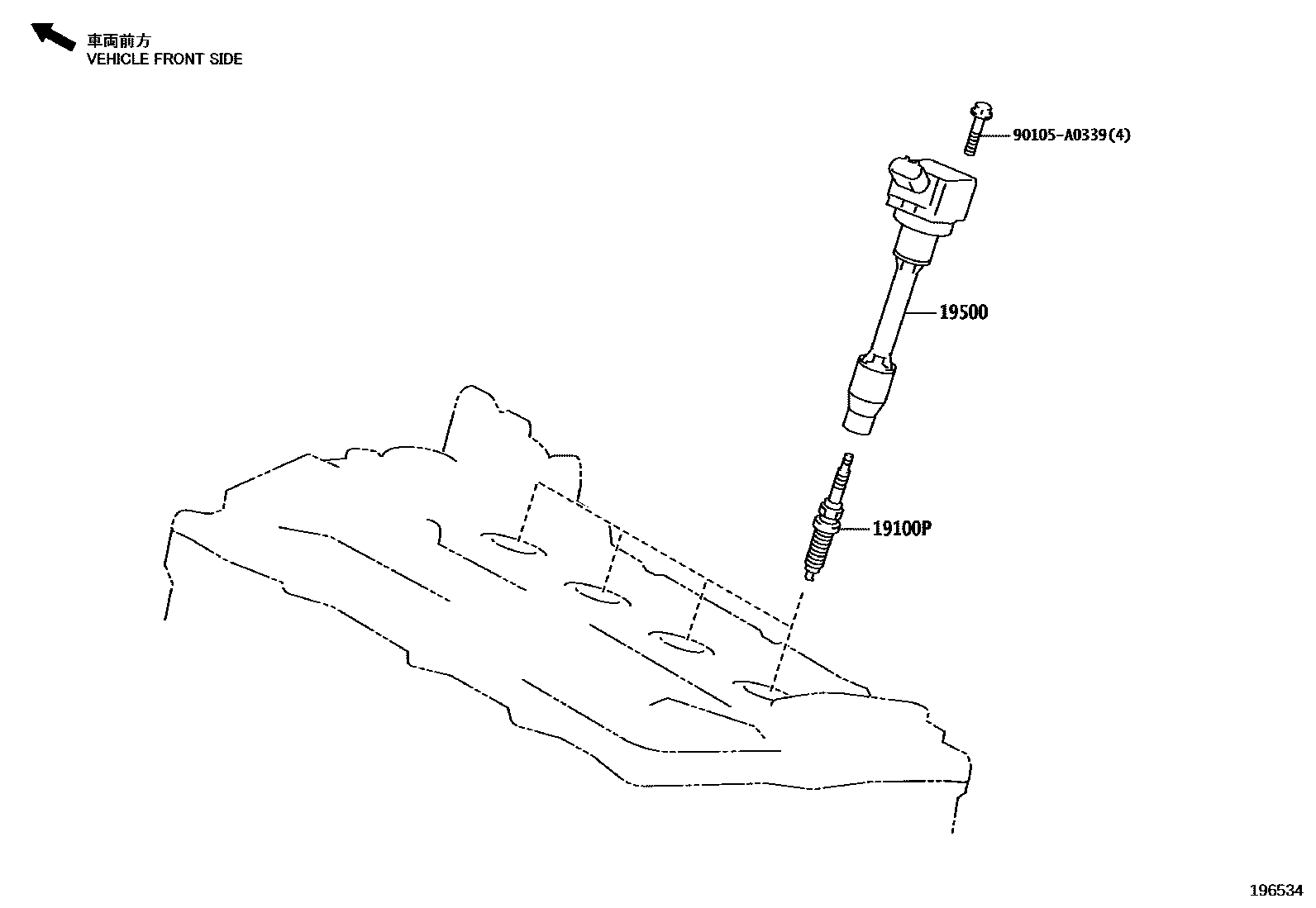

Parts diagram

19100PPLUG, SPARK

main90919-A1008i202312

DILZKAR8E7H

19500COIL ASSY, IGNITION

main90919-A2010i202312

90105A0339

main90105-A0339

3 parts on this diagram · 1 diagram in section
