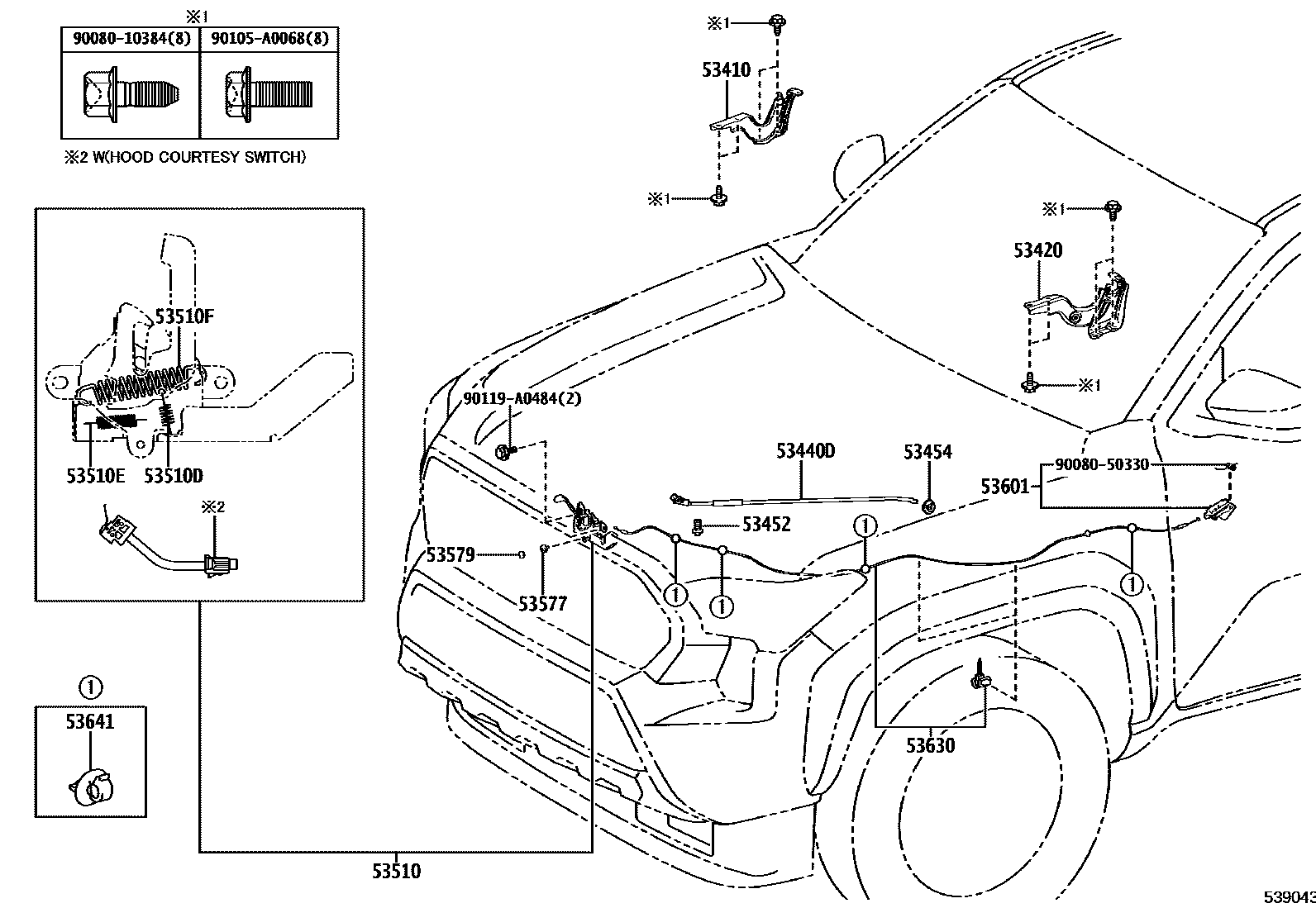

Toyota TACOMA — HOOD LOCK & HINGE

53410HINGE ASSY, HOOD, RH

main53410-AK010iTZNA4#,TZNH47202312

53420HINGE ASSY, HOOD, LH

main53420-AK010iTZNA4#,TZNH47202312

53440DSUPPORT ASSY, HOOD

main53440-AK010iTZNA4#,TZNH47202312

53452HOLDER, HOOD STAY

main53452-AK010iTZNA4#,TZNH47202312

53454CLIP, HOOD SUPPORT ROD

main53454-AK010iTZNA4#,TZNH47202312

53510LOCK ASSY, HOOD

main53510-AK010iTZNA41,46;TZNA45..6F202312

main53510-AK020iTZNA40,45,TZNH47..ATM,CVT202312

MEXICO SPEC

main53510-AK020iTZNA40,45,TZNH47..ATM,CVT202312

TRD OFFROAD PACKAGE

main53510-AK020iTZNA40,45,TZNH47..ATM,CVT202312

TRD SPORT PACKAGE

main53510-AK020iTZNA40,45,TZNH47..ATM,CVT202312

SR+ PACKAGE

53510DSPRING, TENSION(FOR HOOD LOCK)

main90506-12063iTZNA4#,TZNH47¥90202312

WD=1.2,CW=8.5

53510ESPRING, TENSION(FOR HOOD LOCK)

main90506-09055iTZNA4#,TZNH47¥90202312

WD=0.9,CW=21

53510FSPRING, TENSION(FOR HOOD LOCK)

main90506-18067iTZNA4#,TZNH47¥90202312

WD=1.8,CW=13

53577BOLT, HOOD LOCK

main53577-0E010iTZNA4#,TZNH47202312

53579CAP, HOOD LOCK NUT

main53579-0E010iTZNA4#,TZNH47202312

53601LEVER SUB-ASSY, HOOD LOCK CONTROL

main53601-02040-C0iTZNA40,45202312

BLACK,TRIM1#,2#

main53601-02040-C0iTZNA40,45202312

BLACK,TRIM2#

main53601-02040-C0iTZNH47202404

BLACK,TRIM1#,2#,3#,6#

53630CABLE ASSY, HOOD LOCK CONTROL

main53630-AK010iTZNA4#,TZNH47202312

53641CLAMP, HOOD LOCK CONTROL WIRE

main90469-06005iTZNA4#,TZNH47¥80202312

9008010384

main90080-10384

9008050330

main90080-50330¥50

90105A0068

main90105-A0068

90119A0484

main90119-A0484

18 parts on this diagram · 1 diagram in section
