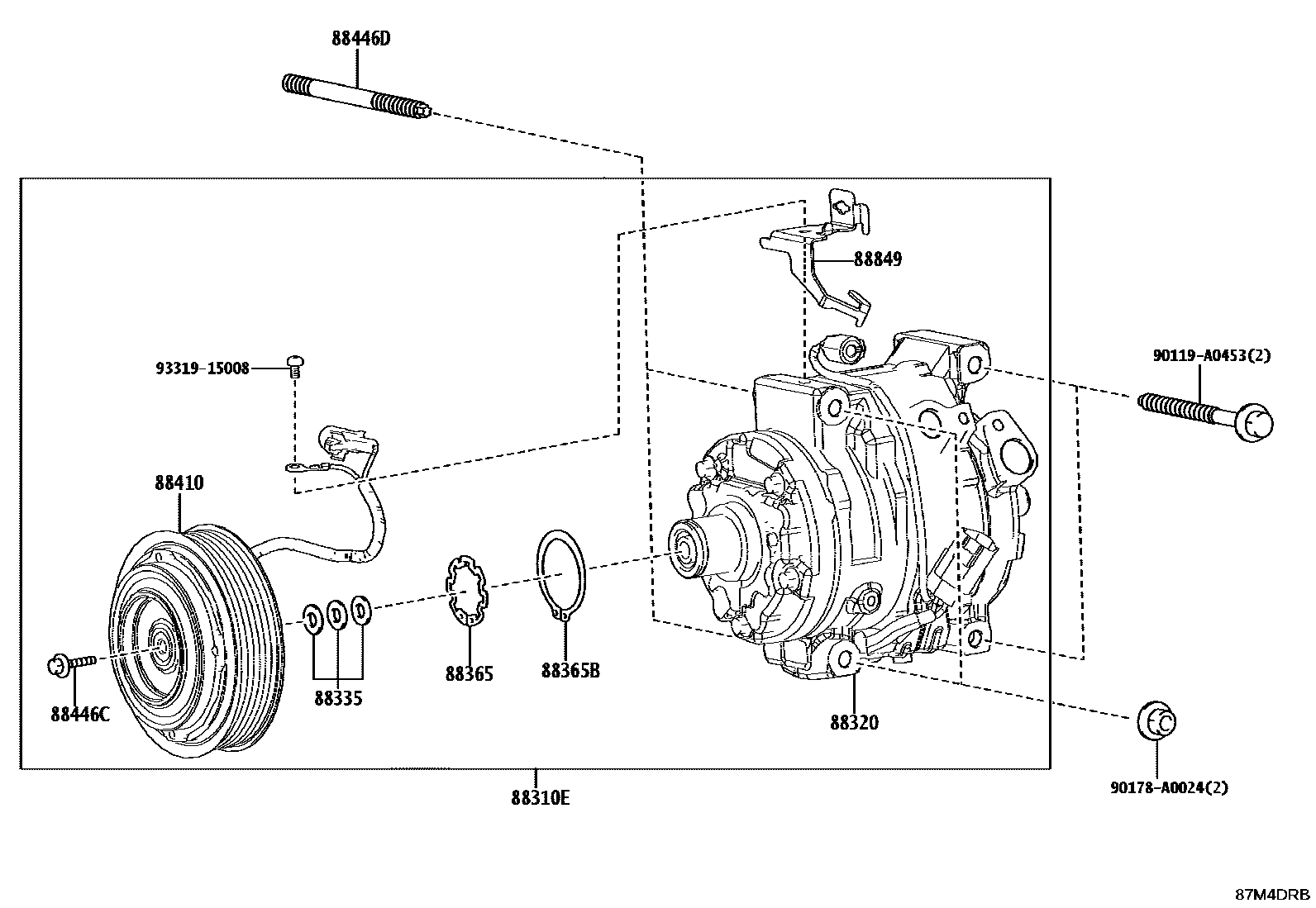

Toyota TACOMA — HEATING & AIR CONDITIONING - COMPRESSOR

0001 1 0002 1

88310ECOMPRESSOR, W/MAGNET CLUTCH

main88310-AK010iTZNA4#202312

88320COMPRESSOR ASSY, COOLER

main88320-A1010iTZNA4#202312

88335GASKET KIT, OVERHAUL

main88335-14020iTZNA4#202312

88365RING, SNAP

main90099-07065iTZNA4#¥90202312

88365BRING, SNAP, NO.2

main90099-07114iTZNA4#202312

88410CLUTCH ASSY, MAGNET

main88410-A1010iTZNA4#202312

88446CBOLT, MAGNET CLUTCH SETTING

main90099-04349iTZNA4#202312

88446DBOLT, COOLER

main88446-08070iTZNA4#¥170202312

88849BRACKET, COOLER COMPRESSOR, NO.2

main88849-A1010iTZNA4#202312

90119A0453

main90119-A0453

90178A0024

main90178-A0024

9331915008

main93319-15008¥170

12 parts on this diagram · 2 diagrams in section
