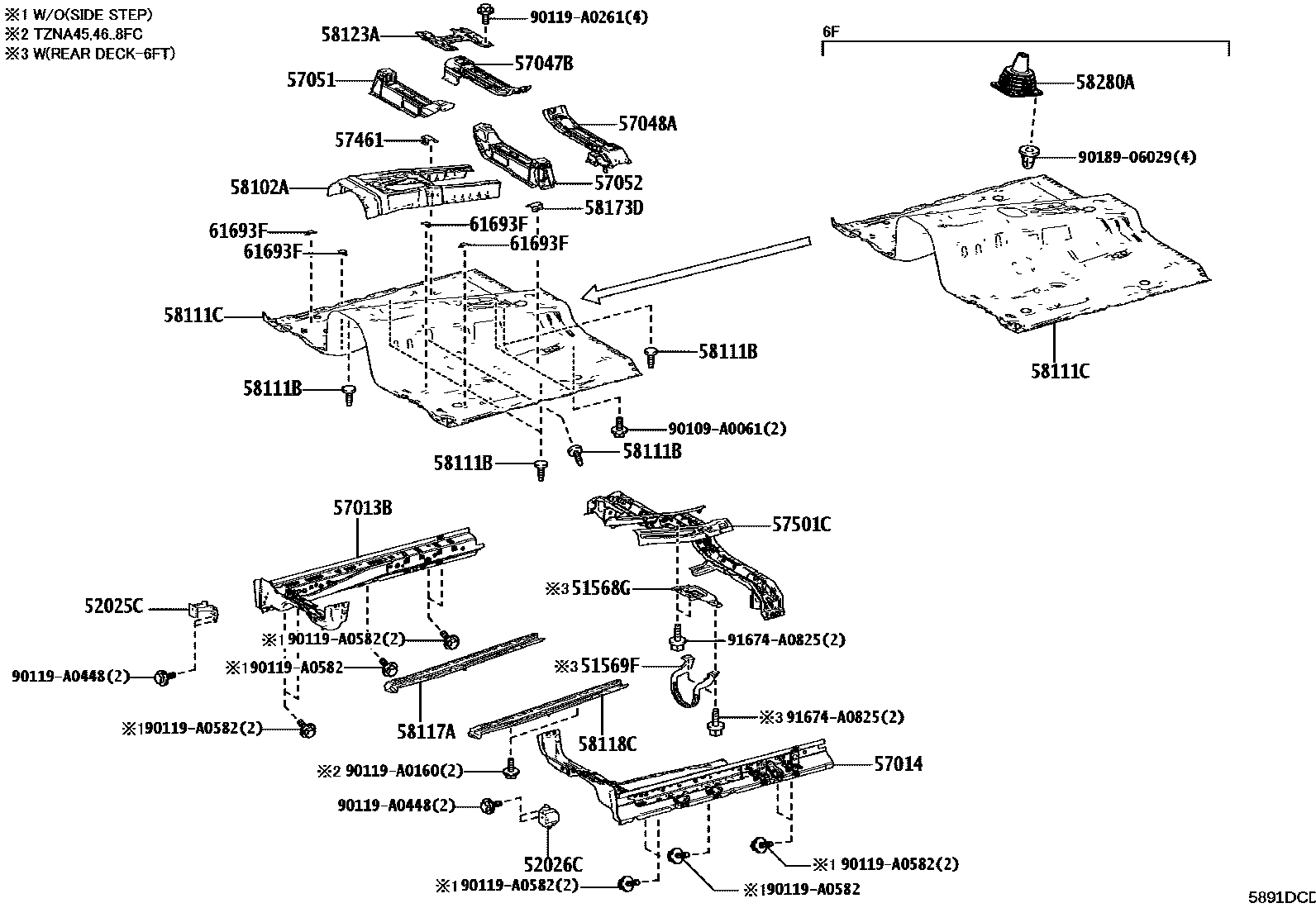

Toyota TACOMA — FRONT FLOOR PANEL & FRONT FLOOR MEMBER

0001 1FLOOR PANEL 0002 1FLOOR PANEL 0003 1SIDE STEP 0004 1SIDE STEP (CRUSHED TUBE) 0005 1SIDE STEP (DROP STEP) 0006 1SIDE STEP (ROCKER PROTECTOR) 0007 1SIDE STEP 0008 1SIDE STEP (ROCK RAIL) 0009 1SIDE STEP (CRUSHED TUBE) 0010 1SIDE STEP (ROCKER PROTECTOR)

51568GBRACKET, PROPELLER SHAFT GUARD

51569FGUARD, PROPELLER SHAFT

52025CEXTENSION SUB-ASSY, FRONT BUMPER, NO.2 RH

main52025-04020iTZNA4#,TZNH47202312

52026CEXTENSION SUB-ASSY, FRONT BUMPER, NO.2 LH

main52026-04020iTZNA4#,TZNH47202312

57013BMEMBER SUB-ASSY, FLOOR, FRONT RH

main57013-04010iTZNA4#,TZNH47202312

57014MEMBER SUB-ASSY, FLOOR, FRONT LH

main57014-04010iTZNA4#,TZNH47202312

57047BBRACKET SUB-ASSY, FLOOR HOUSING SEAT ANCHOR, RH

main57047-04010iTZNA4#,TZNH47202312

57048ABRACKET SUB-ASSY, FLOOR HOUSING SEAT ANCHOR, LH

main57048-04010iTZNA4#,TZNH47202312

57051MEMBER SUB-ASSY, FRONT FLOOR CROSS, RH

main57051-04140iTZNA4#,TZNH47202312

57052MEMBER SUB-ASSY, FRONT FLOOR CROSS, LH

main57052-04110iTZNA4#,TZNH47202312

57461BRACKET, FLOOR PANEL

main58543-04010iTZNA4#,TZNH47202312

57501CBRACE SUB-ASSY, FRONT FLOOR, CENTER

main57501-04010iTZNA4#,TZNH47202312

58102AREINFORCEMENT SUB-ASSY, FRONT FLOOR

main58102-04060iTZNA4#,TZNH47202312

58111BBOLT, WELD(FOR FRONT FLOOR PAN)

main90080-11610iTZNA4#,TZNH47202312

58111CPAN, FRONT FLOOR

main58111-04490iTZNA4#..8FC202312

main58111-04500iTZNH47202404

main58111-04510iTZNA45..6F202312

58117AREINFORCEMENT, FRONT FLOOR SIDE, RH

main58117-04030iTZNA4#,TZNH47202312

58118CREINFORCEMENT, FRONT FLOOR SIDE, LH

main58118-04030iTZNA4#,TZNH47202312

58123ASUPPORT, SHIFT & SELECT LEVER

main58123-04010iTZNA4#,TZNH47..ATM,CVT202312

58173DBRACKET, COMPUTER MOUNTING, NO.4

main58173-04010iTZNA4#,TZNH47202312

58280ABOOT ASSY, SHIFT LEVER

main58280-04120iTZNA45..6F202312

61693FBRACKET, FRONT FLOOR

main58523-0C010iTZNA4#,TZNH47202312

90109A0061

main90109-A0061

90119A0160

main90119-A0160

90119A0261

main90119-A0261

90119A0448

main90119-A0448

90119A0582

main90119-A0582

9018906029

main90189-06029¥100

91674A0825

main91674-A0825¥100

28 parts on this diagram · 10 diagrams in section
