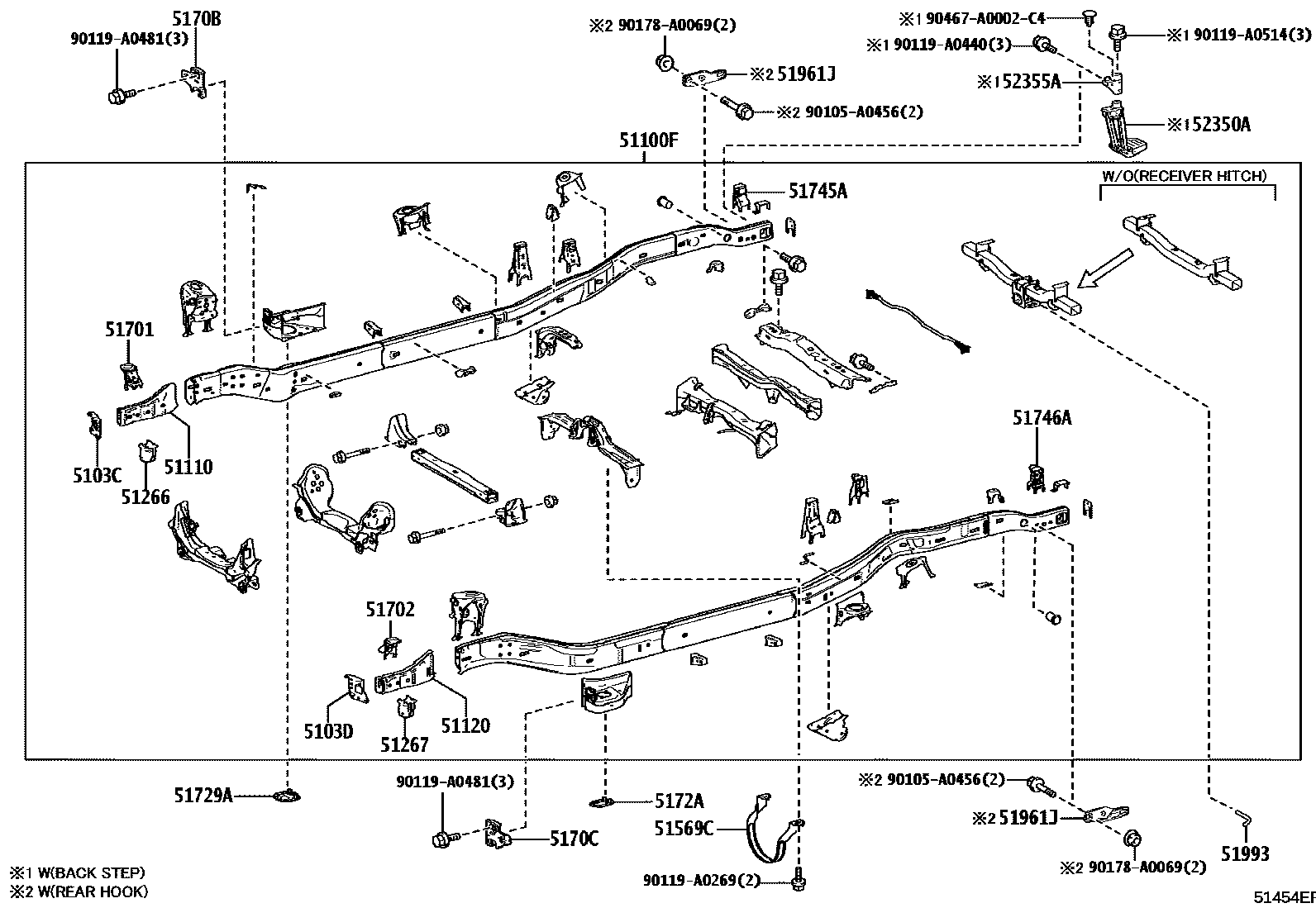

Toyota TACOMA — FRAME
5103CPLATE SUB-ASSY, SIDE RAIL EXTENSION, RH
5103DPLATE SUB-ASSY, SIDE RAIL EXTENSION, LH
51100FFRAME SUB-ASSY
TOWING PACKAGE-WITH(HITCH ONLY)
TOWING PACKAGE-WITH(HITCH ONLY)
51266GUSSET, FRAME CROSSMEMBER, RH
51267GUSSET, FRAME CROSSMEMBER, LH
51569CGUARD, PROPELLER SHAFT
51701BRACKET SUB-ASSY, CAB MOUNTING, NO.1 RH
51702BRACKET SUB-ASSY, CAB MOUNTING, NO.1 LH
5170BREINFORCE SUB-ASSY, CAB MOUNTING BRACKET, NO.1 RH
5170CREINFORCE SUB-ASSY, CAB MOUNTING BRACKET, NO.1 LH
51729ACOVER, NO.2 CAB MOUNTING, RH
5172ACOVER, NO.2 CAB MOUNTING, LH
51745ABRACKET, REAR BODY MOUNTING, NO.5 RH
51746ABRACKET, REAR BODY MOUNTING, NO.5 LH
51961JHOOK, REAR
51993RETAINER, RECEIVER HITCH COTTER PIN
52350ASTEP ASSY, BACK
52355ABRACKET, BACK STEP
90105A0456
90119A0269
main90119-A0269
90119A0440
main90119-A0440
90119A0481
main90119-A0481
90119A0514
main90119-A0514
90178A0069
main90178-A0069
90467A0002C4
main90467-A0002C4
27 parts on this diagram · 3 diagrams in section
