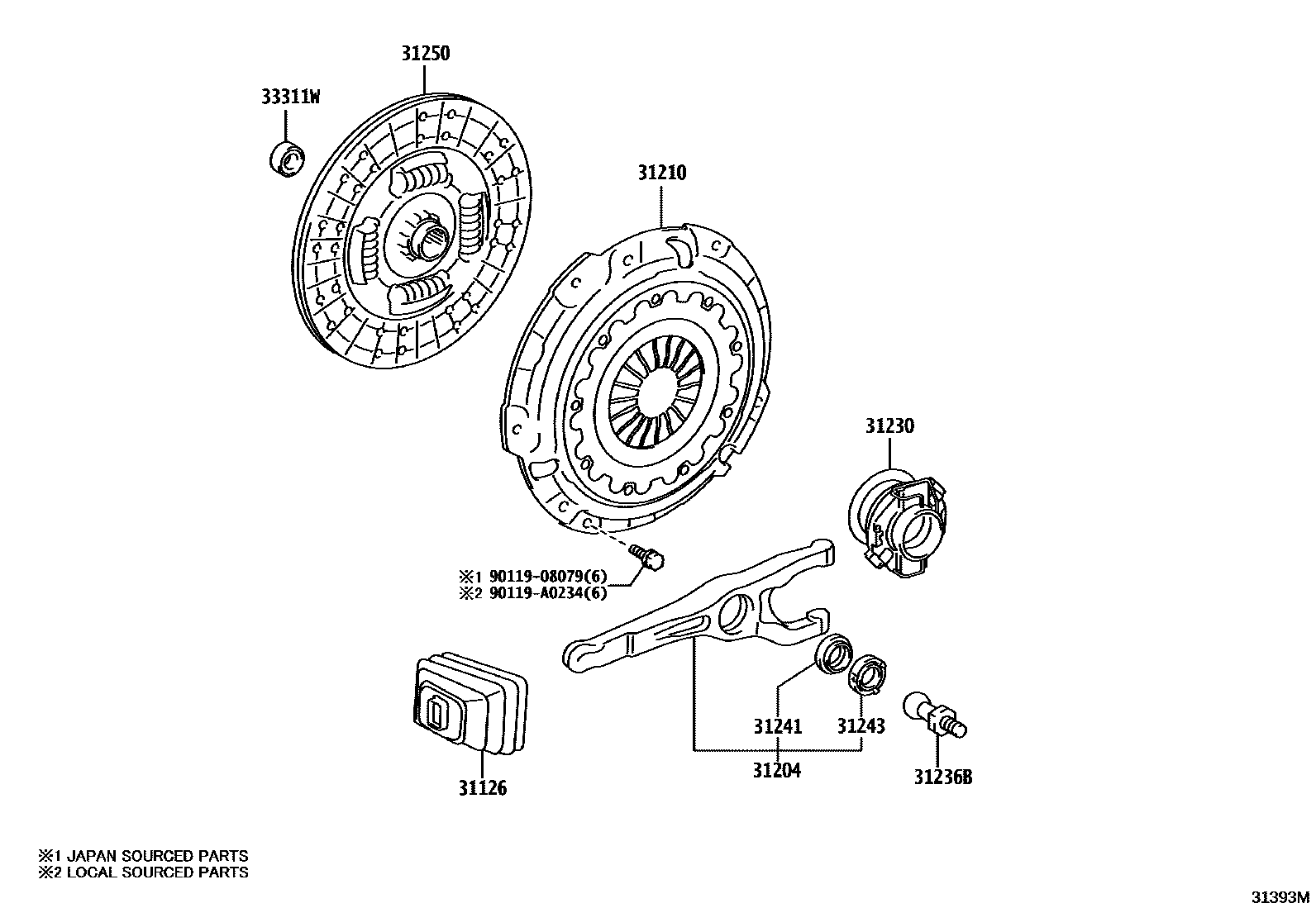

Toyota TACOMA — CLUTCH & RELEASE FORK

31126BOOT, CLUTCH RELEASE FORK

main31126-04010iTZNA45..6F202312

31204FORK SUB-ASSY, CLUTCH RELEASE

main31204-35090iTZNA45..6F202312

31210COVER ASSY, CLUTCH

main31210-0K281iTZNA45..6F¥17,700202312

31230BEARING ASSY, CLUTCH RELEASE

main31230-35160iTZNA45..6F202312

31236BSUPPORT, RELEASE FORK

main31236-0K010iTZNA45..6F¥470202312

31241SEAL, CLUTCH RELEASE FORK DUST

main31241-71010iTZNA45..6F¥40202312

31243COLLAR, CLUTCH RELEASE FORK

main31243-26010iTZNA45..6F¥80202312

31250DISC ASSY, CLUTCH

main31250-0K281iTZNA45..6F¥20,200202312

33311WBEARING (FOR INPUT SHAFT)

main90363-12002iTZNA45..6F¥520202312

(J)

sub90363-12024¥520

main90363-T0006iTZNA45..6F¥1,050202312

(L)

9011908079

main90119-08079¥120

90119A0234

main90119-A0234¥60

11 parts on this diagram · 1 diagram in section
