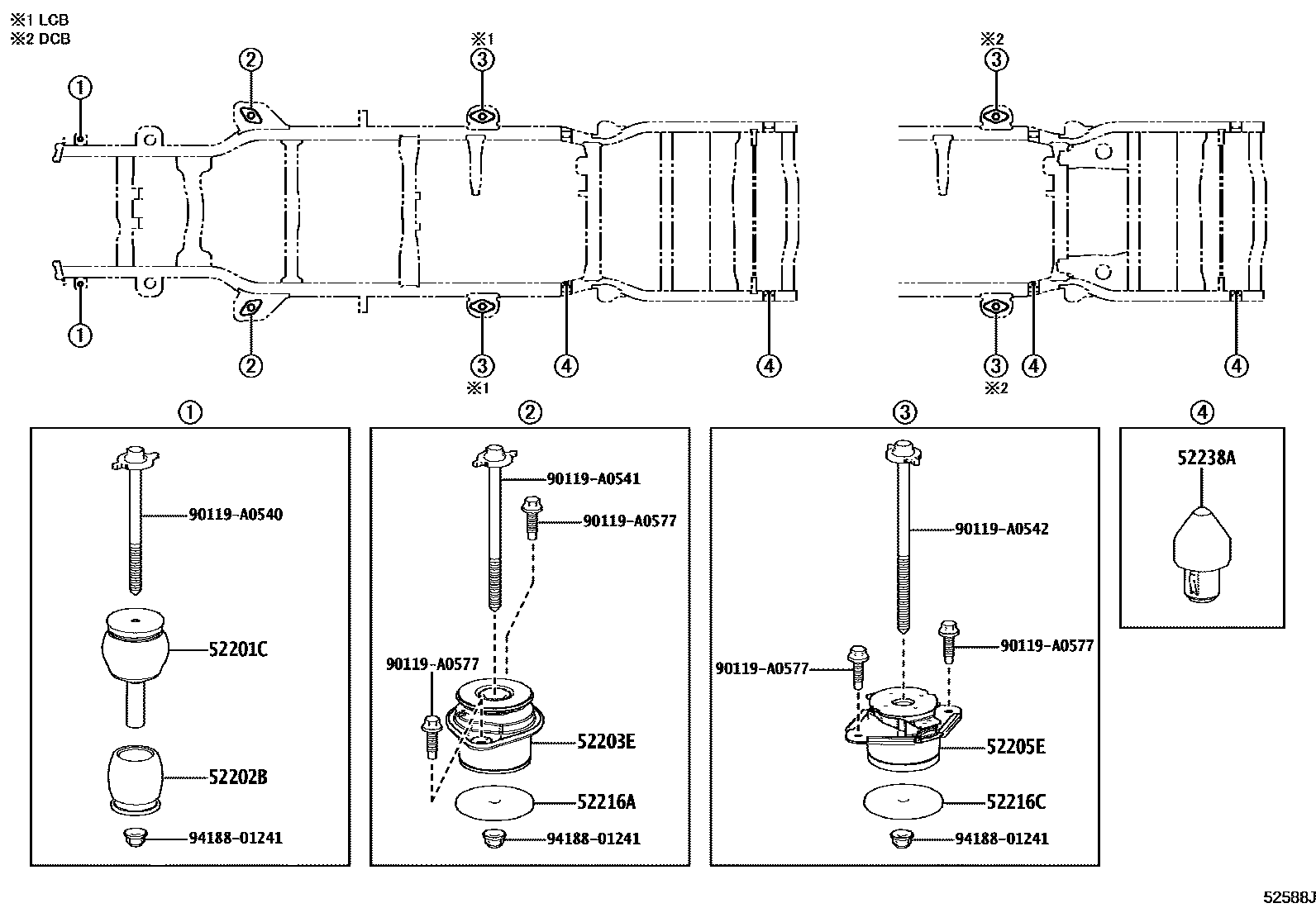

Toyota TACOMA — CAB MOUNTING & BODY MOUNTING

52201CCUSHIION SUB-ASSY, CAB MOUNTING, NO.1 UPPER

main52201-AK010iTZNA4#,TZNH47202312

52202BCUSHIION SUB-ASSY, CAB MOUNTING, NO.1 LOWER

main52202-AK010iTZNA4#,TZNH47202312

52203ECUSHION SUB-ASSY, CAB MOUNTING, NO.2

main52203-AK010iTZNA4#,TZNH47202312

52205ECUSHION SUB-ASSY, CAB MOUNTING, NO.3

main52205-AK010iTZNA4#202312

main52205-AK020iTZNH47202404

52216ASTOPPER, CAB MOUNTING CUSHION

main52216-0C020iTZNA4#,TZNH47¥890202312

52216CSTOPPER, CAB MOUNTING CUSHION

main52216-0C020iTZNA4#,TZNH47¥890202312

52238AHOLDER, BODY MOUNTING, REAR

main52238-0C020iTZNA4#,TZNH47202312

90119A0540

main90119-A0540

90119A0541

main90119-A0541

90119A0542

main90119-A0542

90119A0577

main90119-A0577

9418801241

main94188-01241¥100

12 parts on this diagram · 1 diagram in section
