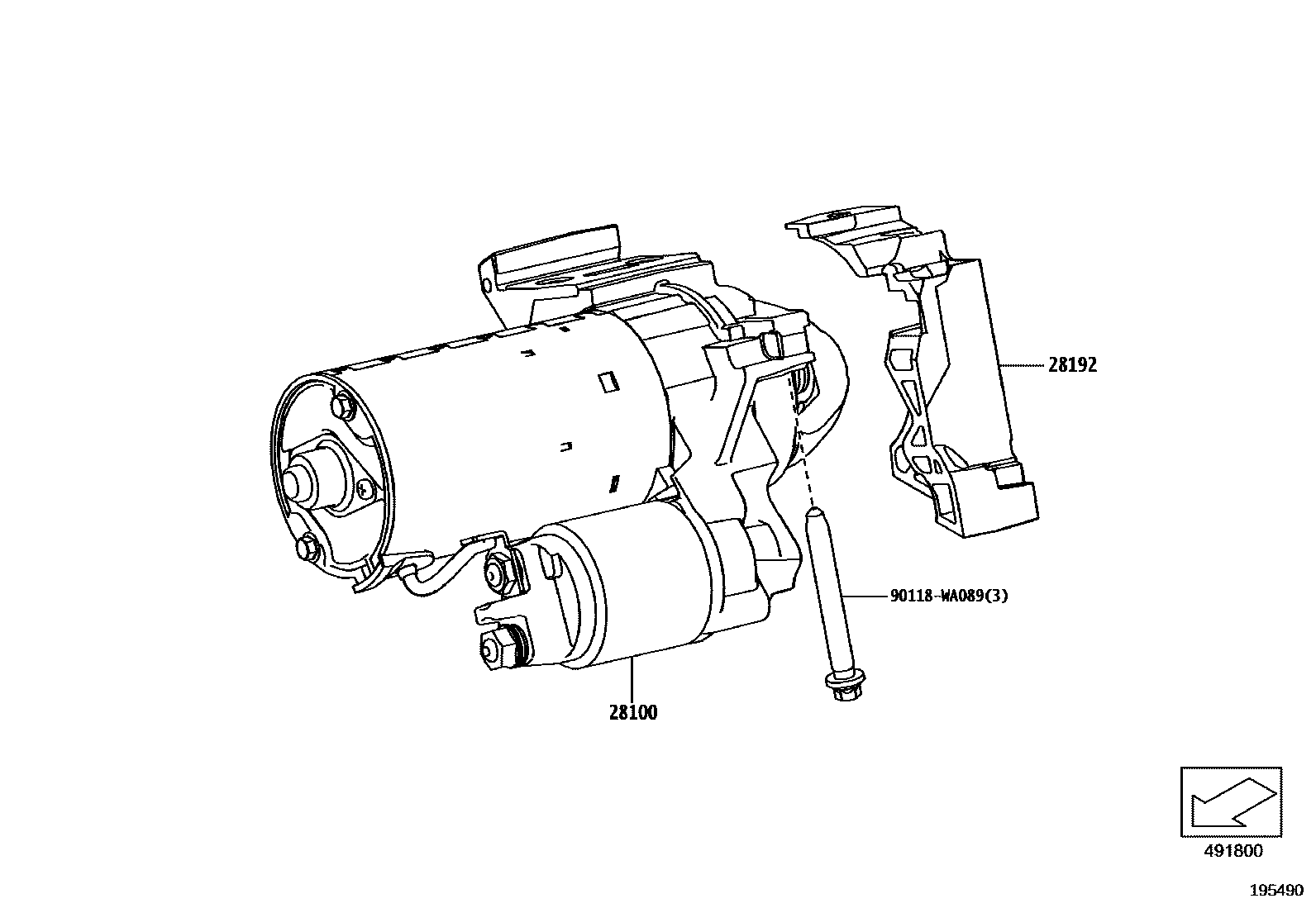

Toyota SUPRA — STARTER

0001 1 0002 1

28100STARTER ASSY

main28100-WAA01iB58..DB43¥121,000201903-202002

12V 1.95KW

main28100-WAA01iB58H..DB03¥121,000202003

12V 1.95KW

main28100-WAA05iB46H..DB23¥95,000202007

12V 2.2KW

28192COVER, STARTER

main28192-WAA01iB58..DB43¥1,110201903-202002

main28192-WAA01iB58H..DB03¥1,110202003

main28192-WAA02iB46H..DB23¥880202007

90118WA089

main90118-WA089¥410

3 parts on this diagram · 2 diagrams in section
