Toyota SUPRA — PARTIAL ENGINE ASSEMBLY

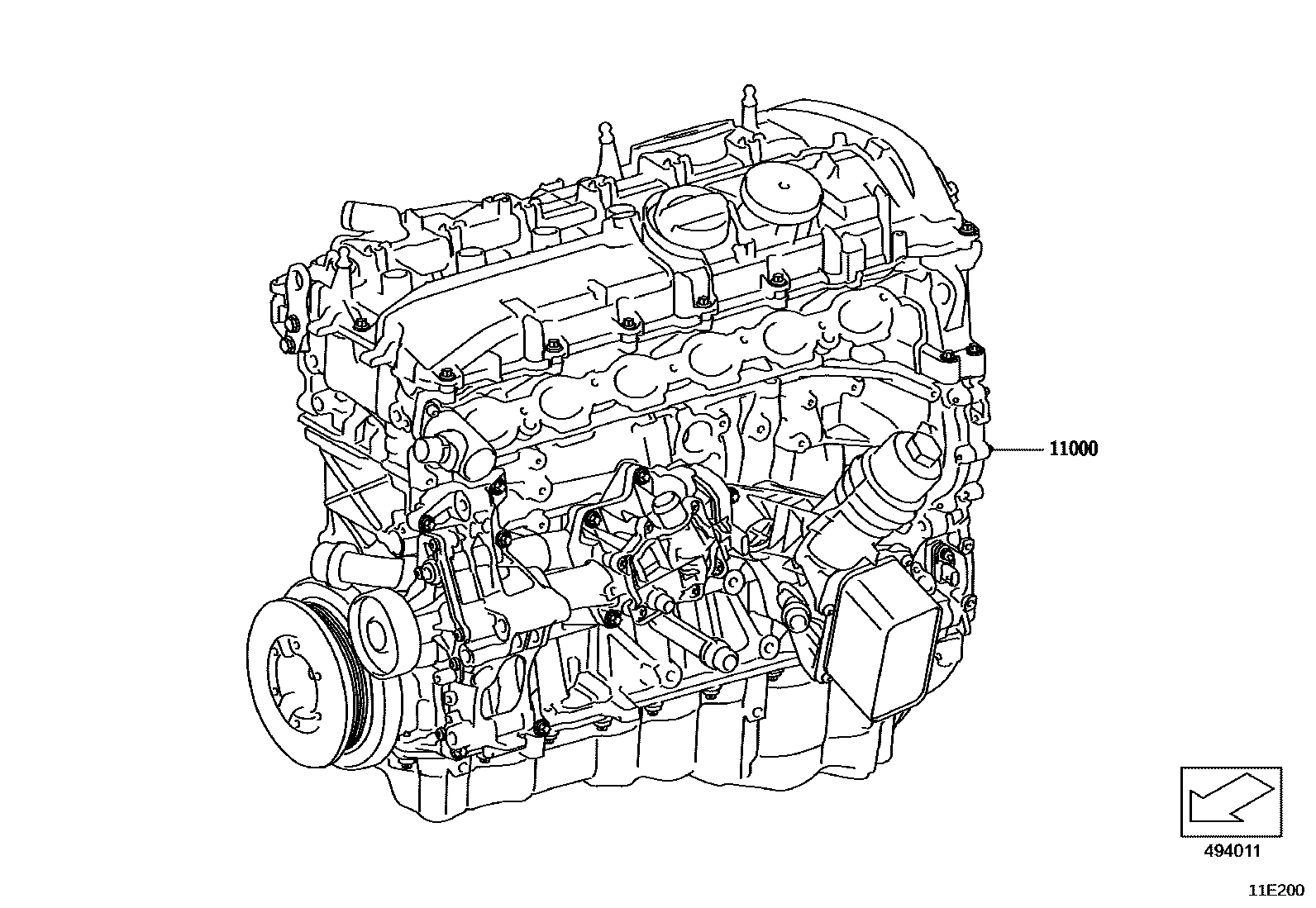

Parts diagram

11000ENGINE ASSY, PARTIAL

main19000-WAA02i¥2,550,000201903-202002

sub19000-WAA05¥2,550,000

main19000-WAA08i¥1,990,000202007-202207

sub19000-WAA12¥1,990,000

main19000-WAA13i¥2,550,000202003

main19000-WAA14i¥1,990,000202207

1 parts on this diagram · 2 diagrams in section
