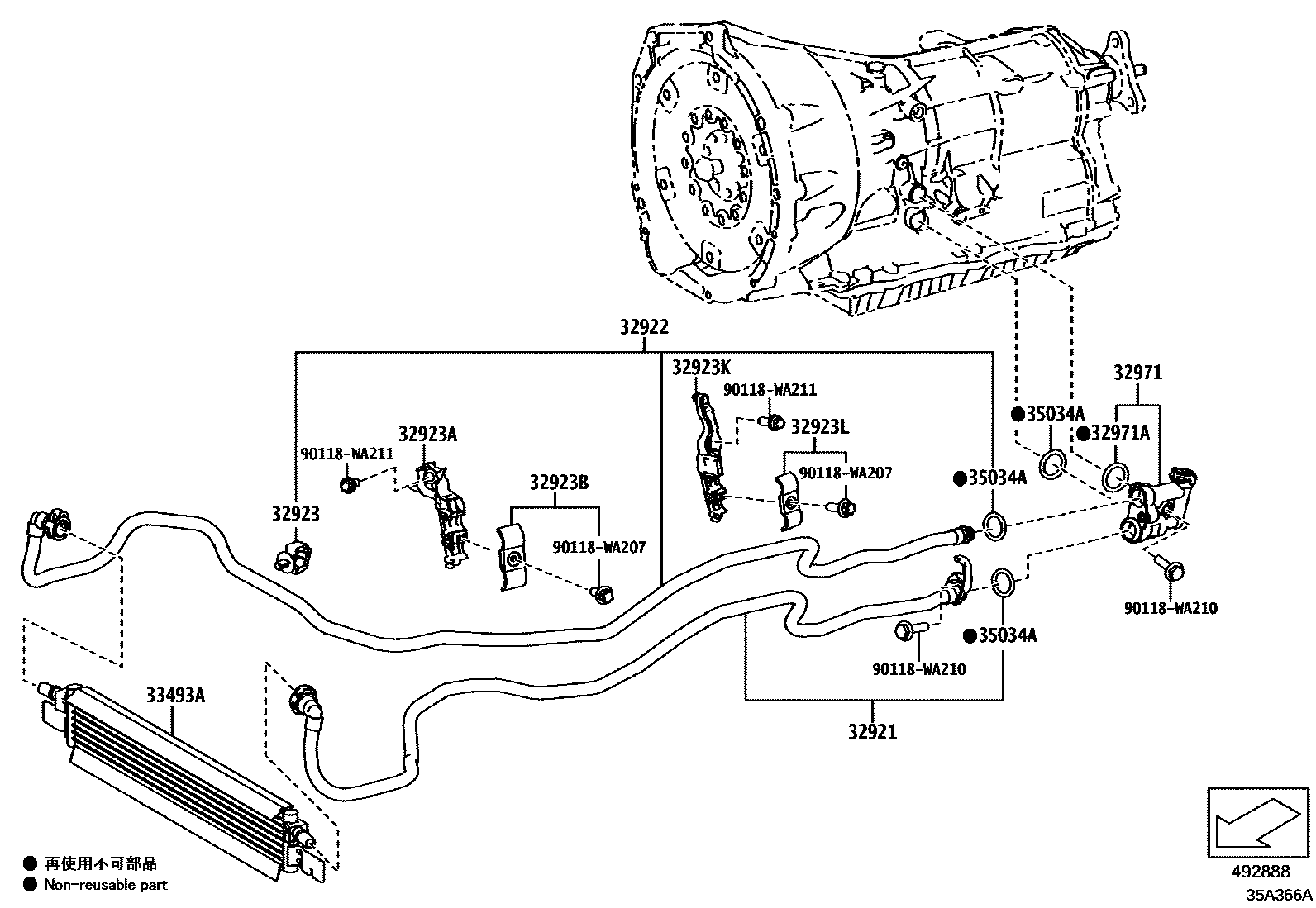

Toyota SUPRA — OIL COOLER & TUBE (ATM)

32921TUBE, OIL COOLER INLET, NO.1

main32921-WAA01iDB03¥16,600202003

main32921-WAA01iDB43¥16,600201903-202002

main32921-WAA01iDB23¥16,600202007

32922TUBE, OIL COOLER OUTLET, NO.1

main32922-WAA01iDB43¥18,400201903-202002

main32922-WAA01iDB03¥18,400202003

main32922-WAA01iDB23¥18,400202007

32923CLAMP, AUTOMATIC TRANSMISSION OIL COOLER TUBE

main90118-WA602iDB43¥330201903-202002

main90118-WA602iDB03¥330202003

main90118-WA602iDB23¥330202007

32923ACLAMP, AUTOMATIC TRANSMISSION OIL COOLER TUBE

main32924-WAA01iDB43¥4,320201903-202002

main32924-WAA01iDB03¥4,320202003

main32924-WAA01iDB23¥4,320202007

32923BCLAMP, AUTOMATIC TRANSMISSION OIL COOLER TUBE, NO.1

main32929-WAA01iDB43¥1,610201903-202002

main32929-WAA01iDB03¥1,610202003

main32929-WAA01iDB23¥1,610202007

32923KCLAMP, AUTOMATIC TRANSMISSION OIL COOLER TUBE, NO.2

main32924-WAA02iDB03¥2,370202003

main32924-WAA02iDB43¥2,370201903-202002

main32924-WAA02iDB23¥2,370202007

32923LCLAMP, AUTOMATIC TRANSMISSION OIL COOLER TUBE, NO.3

main32929-WAA01iDB03¥1,610202003

main32929-WAA01iDB43¥1,610201903-202002

main32929-WAA01iDB23¥1,610202007

32971THERMOSTAT, TRANSMISSION OIL

main32971-WAA01iDB43¥20,900201903-202002

main32971-WAA01iDB03¥20,900202003

main32971-WAA01iDB23¥20,900202007

32971ARING, O(FOR TRANSMISSION OIL THERMOSTAT)

main90118-WA599iDB03¥580202003

main90118-WA599iDB43¥580201903-202002

main90118-WA599iDB23¥580202007

33493ACOOLER, TRANSMISSION OIL(ATF WARMER)

main32910-WAA01iDB23¥45,900202007

main32910-WAA02iDB43¥45,900201903-202002

main32910-WAA02iDB03¥45,900202003

35034ARING, O

main90118-WA599iDB43¥580201903-202002

main90118-WA599iDB03¥580202003

main90118-WA599iDB23¥580202007

90118WA207

main90118-WA207¥290

90118WA210

main90118-WA210¥310

90118WA211

main90118-WA211¥200

14 parts on this diagram · 1 diagram in section
