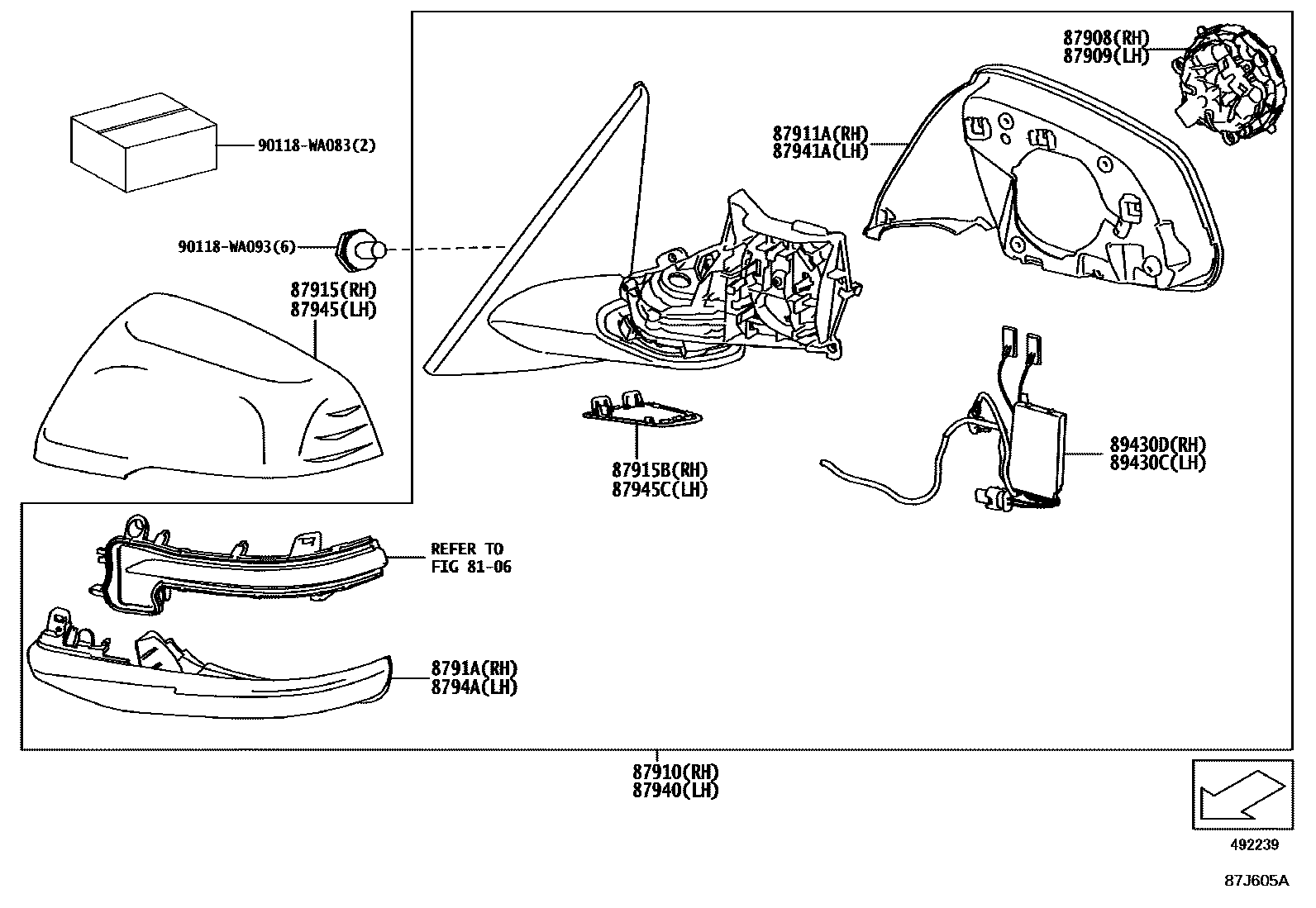

Toyota SUPRA — MIRROR
8106
87908ACTUATOR ASSY, OUTER MIRROR, RH
87909ACTUATOR ASSY, OUTER MIRROR, LH
87910MIRROR ASSY, OUTER REAR VIEW, RH
87911AVISOR, OUTER MIRROR, RH
87915COVER, OUTER MIRROR, RH
NO PAINT REQ.,BLACK MATT
NO PAINT REQ.,BLACK MATT
87915BCOVER, OUTER MIRROR, LOWER RH
8791ACOVER, OUTER MIRROR, RH NO.2
NO PAINT REQ.
NO PAINT REQ.
87940MIRROR ASSY, OUTER REAR VIEW, LH
87941AVISOR, OUTER MIRROR, LH
87945COVER, OUTER MIRROR, LH
NO PAINT REQ.,BLACK MATT
NO PAINT REQ.,BLACK MATT
87945CCOVER, OUTER MIRROR, LOWER LH
8794ACOVER, OUTER MIRROR, LH NO.2
NO PAINT REQ.
NO PAINT REQ.
89430CCOMPUTER ASSY, OUTER MIRROR CONTROL, LH
89430DCOMPUTER ASSY, OUTER MIRROR CONTROL, RH
90118WA083
90118WA093
17 parts on this diagram · 5 diagrams in section
