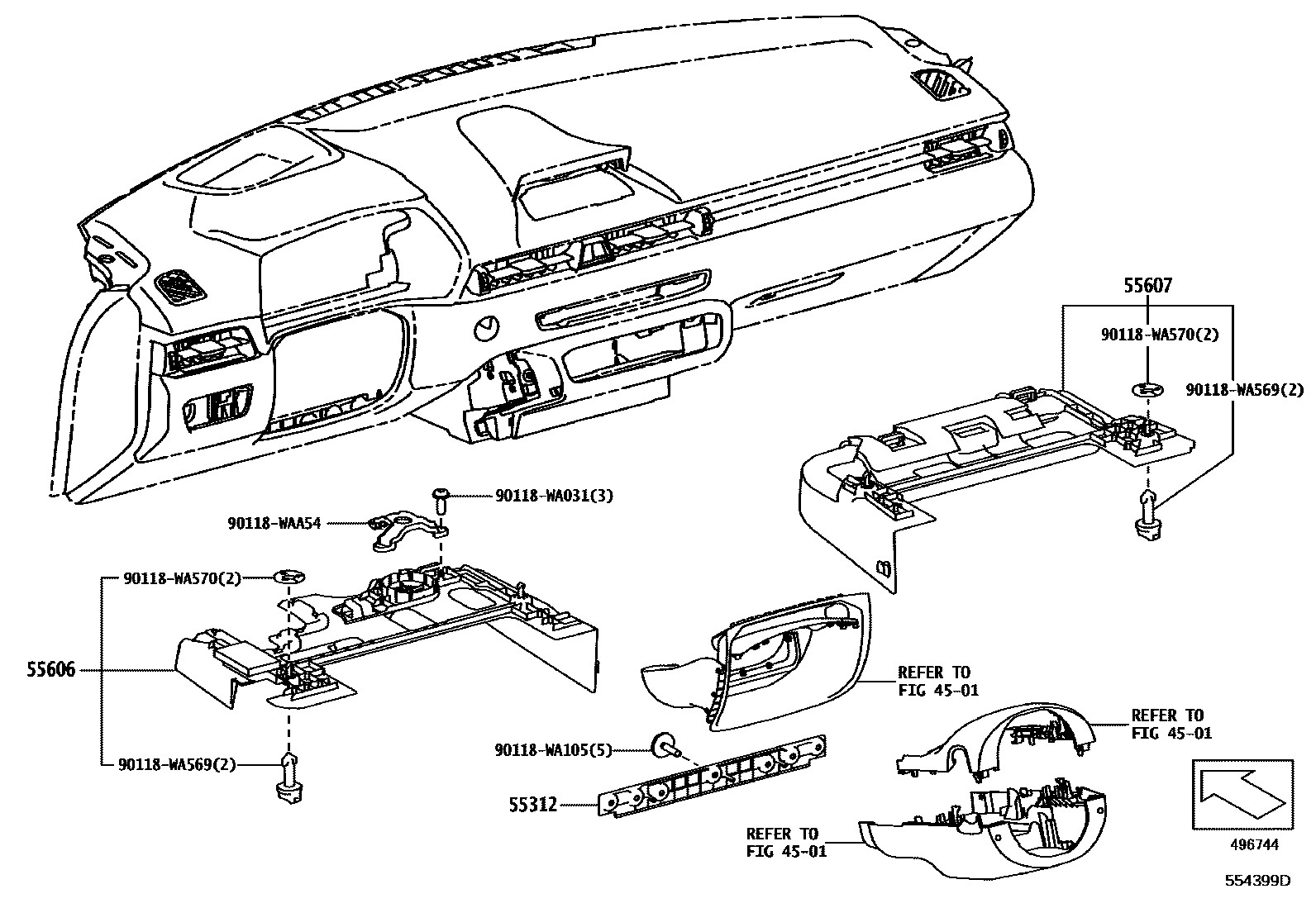

Toyota SUPRA — INSTRUMENT PANEL & GLOVE COMPARTMENT

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0007 1

4501

55312PANEL, INSTRUMENT, LOWER

main73900-WAA05iDB43¥3,920201903-202002

55606COVER SUB-ASSY, INSTRUMENT PANEL UNDER, NO.1

main55606-WAA01iDB43¥9,400201903-202002

55607COVER SUB-ASSY, INSTRUMENT PANEL UNDER, NO.2

main55607-WAA03iDB43¥9,400201903-202002

90118WA031

main90118-WA031¥300

90118WA105

main90118-WA105¥260

90118WA569

main90118-WA569¥550

90118WA570

main90118-WA570¥550

90118WAA54

main90118-WAA54¥1,370

9 parts on this diagram · 7 diagrams in section
