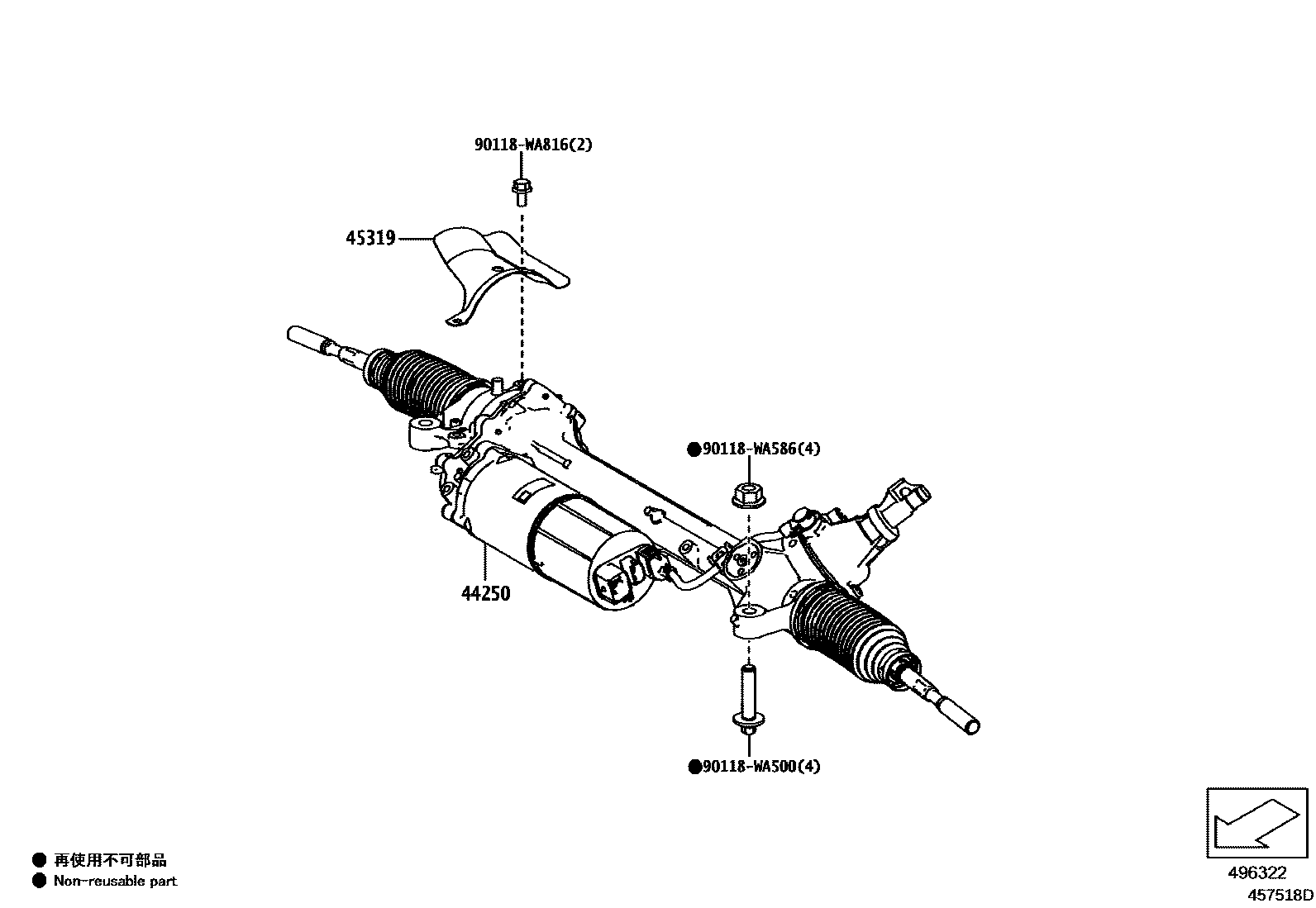

Toyota SUPRA — FRONT STEERING GEAR & LINK

0001 1 0002 1

44250GEAR ASSY, POWER STEERING(FOR RACK & PINION)

main44250-WAA01iDB43¥651,000201903-201907

sub44250-WAA08¥651,000

main44250-WAA08iDB43¥651,000201908-201911

sub44250-WAA09¥651,000

main44250-WAA09iDB43¥651,000201912-202002

sub44250-WAA10¥651,000

main44250-WAA10iDB03¥651,000202003-202007

sub44250-WAA12¥458,000

main44250-WAA12iDB23¥458,000202007-202008

sub44250-WAA15

main44250-WAA15iDB23202009-202011

sub44250-WAA17¥552,000

main44250-WAA17iDB23¥552,000202012-202103

sub44250-WAA19¥552,000

main44250-WAA19iDB23¥552,000202104-202107

sub44250-WAA21¥552,000

main44250-WAA23iDB23202108

##

sub44250-WAA25¥458,000

main44250-WAA25iDB23¥458,000201903-202203

sub44250-WAA27¥458,000

45319INSULATOR, STEERING GEAR HEAT

main45529-WAA01iDB43¥4,560201903-202002

90118WA500

main90118-WA500¥1,090

90118WA586

main90118-WA586¥130

90118WA816

main90118-WA816¥340

5 parts on this diagram · 2 diagrams in section
