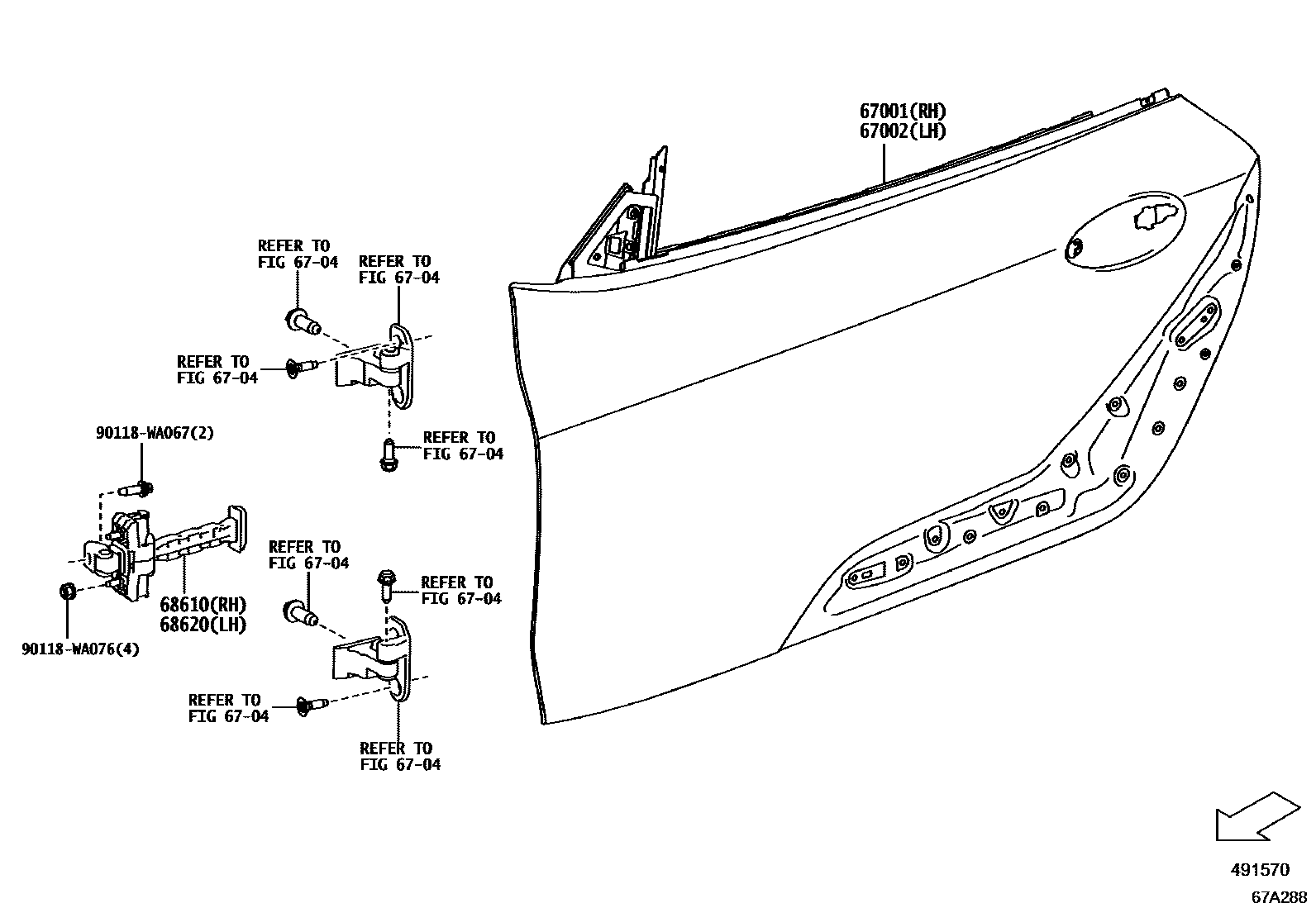

Toyota SUPRA — FRONT DOOR PANEL & GLASS

0001 1 0002 1 0003 1 0004 1 0005 1

67001PANEL SUB-ASSY, FRONT DOOR, RH

main67001-WAA01iDB03¥184,000202003

main67001-WAA01iDB43¥184,000201903-202002

main67001-WAA01iDB23¥184,000202007

67002PANEL SUB-ASSY, FRONT DOOR, LH

main67002-WAA01iDB43¥184,000201903-202002

main67002-WAA01iDB03¥184,000202003

main67002-WAA01iDB23¥184,000202007

6704

68610CHECK ASSY, FRONT DOOR

main68610-WAA01iDB43¥8,300201903-202002

main68610-WAA01iDB03¥8,300202003

main68610-WAA01iDB23¥8,300202007

68620CHECK ASSY, FRONT DOOR, LH

main68620-WAA01iDB43¥8,300201903-202002

main68620-WAA01iDB03¥8,300202003

main68620-WAA01iDB23¥8,300202007

90118WA067

main90118-WA067¥240

90118WA076

main90118-WA076¥150

7 parts on this diagram · 5 diagrams in section
