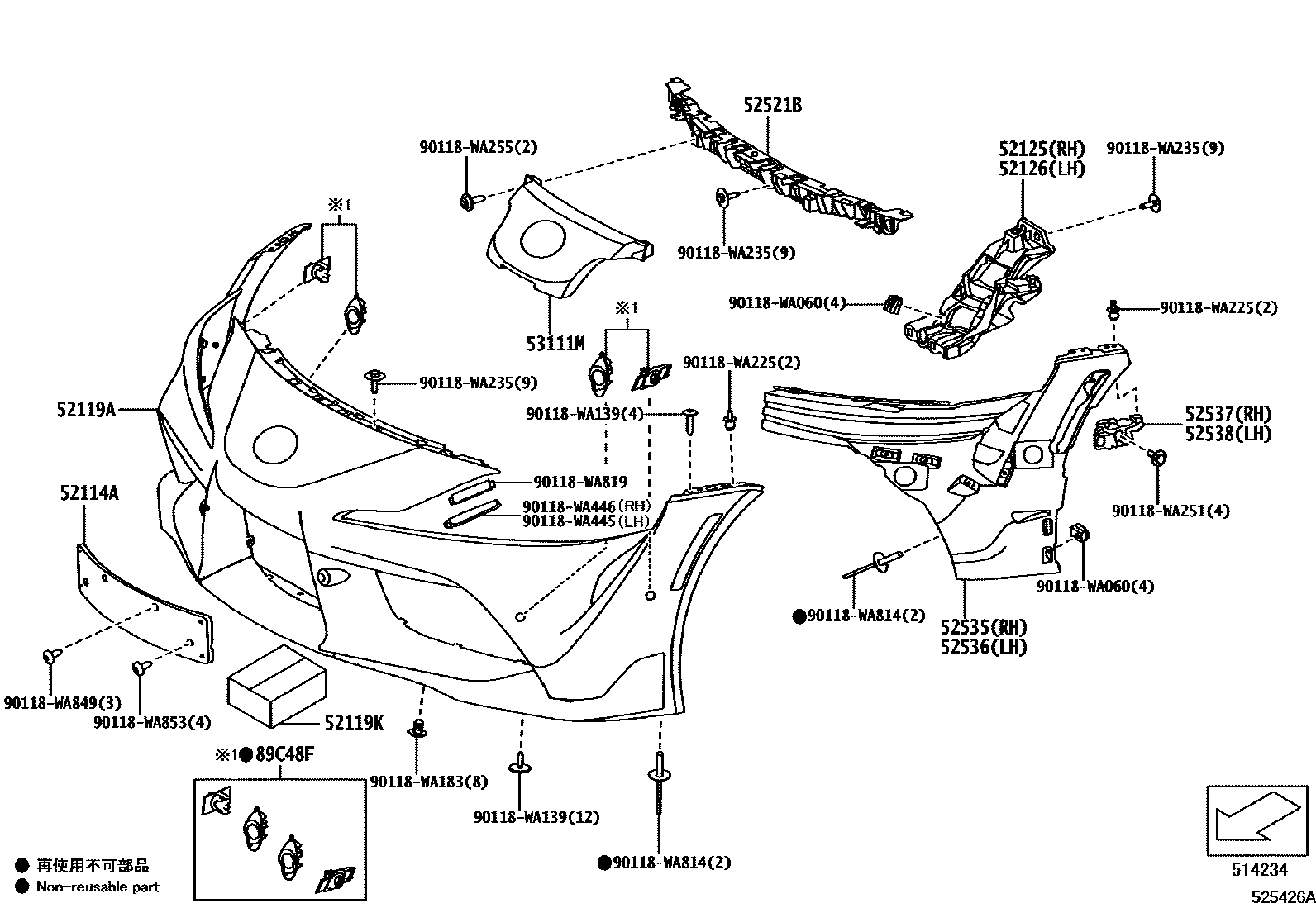

Toyota SUPRA — FRONT BUMPER & BUMPER STAY

0001 1 0002 1 0003 1 0004 1

52114ABRACKET, FRONT BUMPER EXTENSION MOUNTING

main52114-WAA02iDB43¥7,000201903-202002

52119ACOVER, FRONT BUMPER

main52119-WAA02iDB43¥129,000201903-202002

52119KREPAIR KIT, FRONT BUMPER

main90118-WA832iDB43¥3,810201903-202002

52125RETAINER, FRONT BUMPER, RH

main52535-WAA01iDB43¥8,500201903-202002

52126RETAINER, FRONT BUMPER, LH

main52536-WAA01iDB43¥8,500201903-202002

52521BRETAINER, FRONT BUMPER, UPPER

main52141-WAA01iDB43¥8,500201903-202002

52535RETAINER, FRONT BUMPER SIDE, RH

main52125-WAA01iDB43¥6,400201903-202002

NO PAINT REQ.

52536RETAINER, FRONT BUMPER SIDE, LH

main52126-WAA01iDB43¥6,300201903-202002

NO PAINT REQ.

52537RETAINER, FRONT BUMPER END, RH

main52537-WAA01iDB03¥4,050201903-202002

52538RETAINER, FRONT BUMPER END, LH

main52538-WAA01iDB03¥4,050201903-202002

53111MSUPPORT, FRONT BUMPER, INNER

main53111-WAA01iDB43¥5,400201903-202002

89C48FRETAINER, ULTRASONIC SENSOR, FRONT SIDE

main89348-WAA02iDB43¥7,500201903-202002

90118WA060

main90118-WA060¥90

90118WA139

main90118-WA139¥140

90118WA183

main90118-WA183¥110

90118WA225

main90118-WA225¥240

90118WA235

main90118-WA235¥450

90118WA251

main90118-WA251¥200

90118WA255

main90118-WA255¥160

90118WA445

main90118-WA445¥2,640

90118WA446

main90118-WA446¥2,640

90118WA814

main90118-WA814¥120

90118WA819

main90118-WA819¥1,150

90118WA849

main90118-WA849¥90

90118WA853

main90118-WA853¥70

25 parts on this diagram · 4 diagrams in section
