Toyota SUPRA — FRONT AXLE HUB

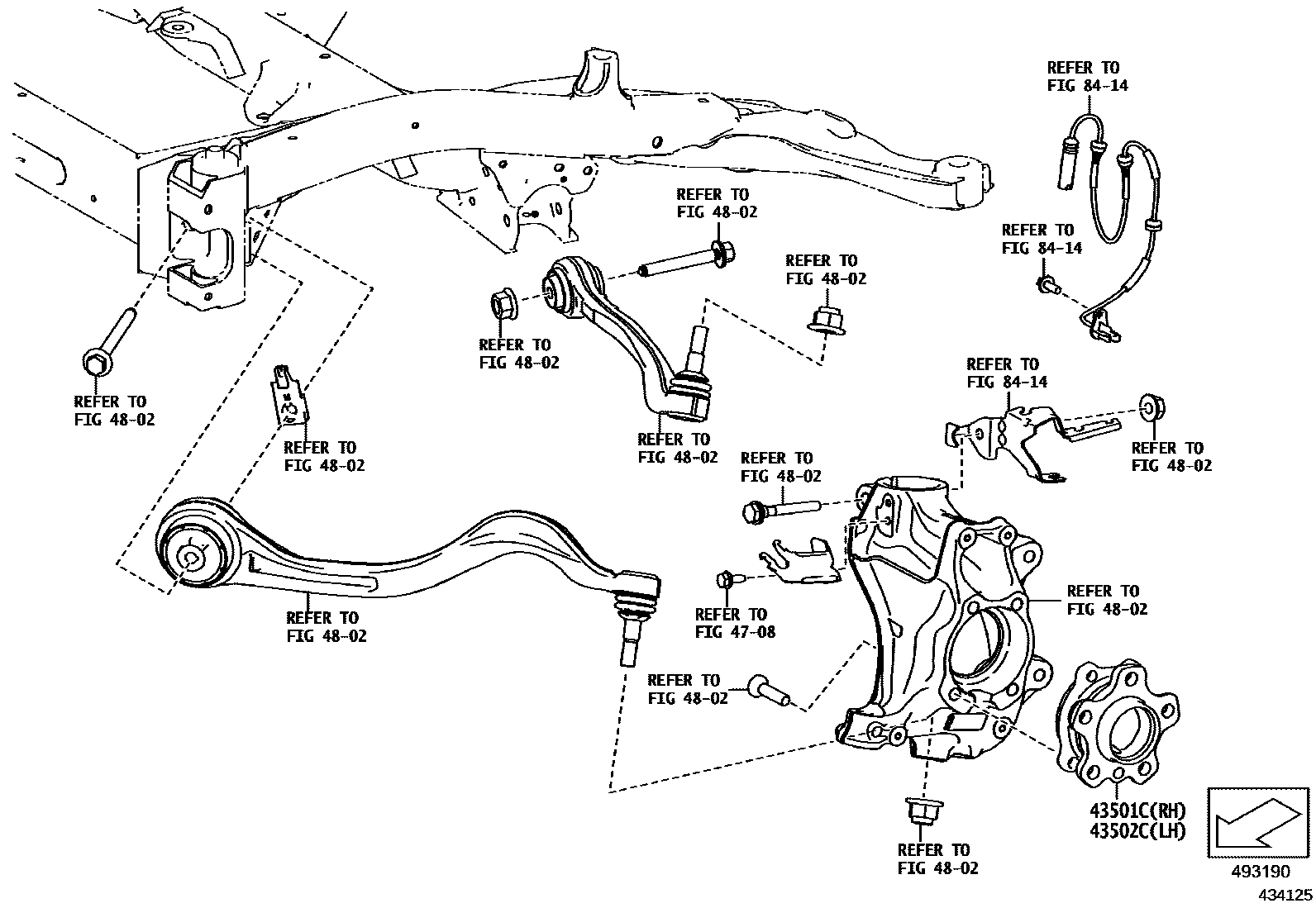

Parts diagram
43501CHUB SUB-ASSY, FRONT AXLE, RH
main43550-WAA01i¥45,400201903-202105
sub43550-WAA02¥51,900
main43550-WAA02i¥51,900202106
43502CHUB SUB-ASSY, FRONT AXLE, LH
main43550-WAA01i¥45,400201903-202105
sub43550-WAA02¥51,900
main43550-WAA02i¥51,900202106
4708
4802
8414

5 parts on this diagram · 3 diagrams in section
