Toyota SUPRA — ENGINE OIL COOLER

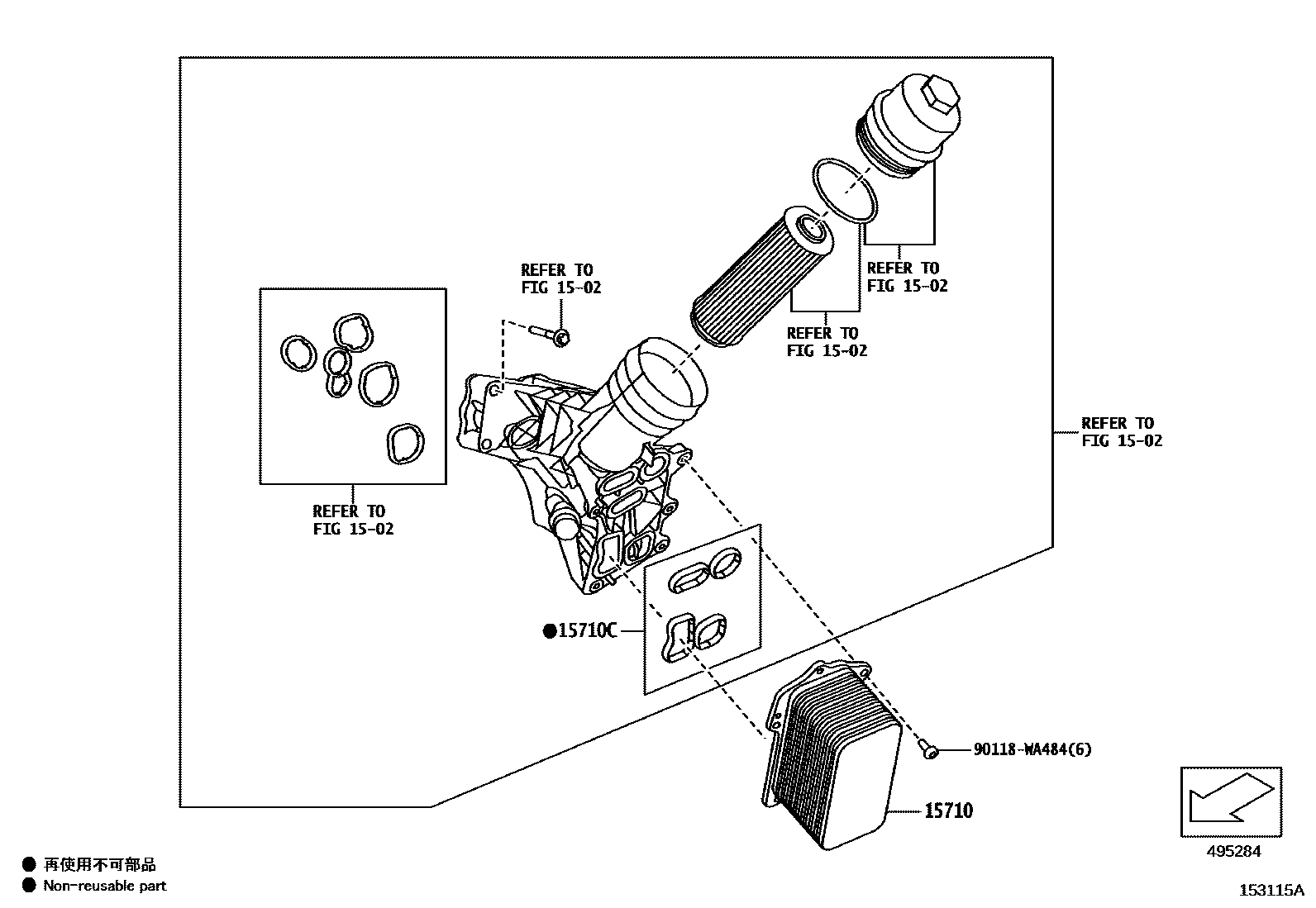

Parts diagram

1502

15710COOLER ASSY, OIL

main15710-WAA01i¥30,100201903-202002

15710CGASKET(FOR OIL COOLER)

main90118-WA468i¥5,300201903-202002

90118WA484

main90118-WA484¥160

4 parts on this diagram · 1 diagram in section
