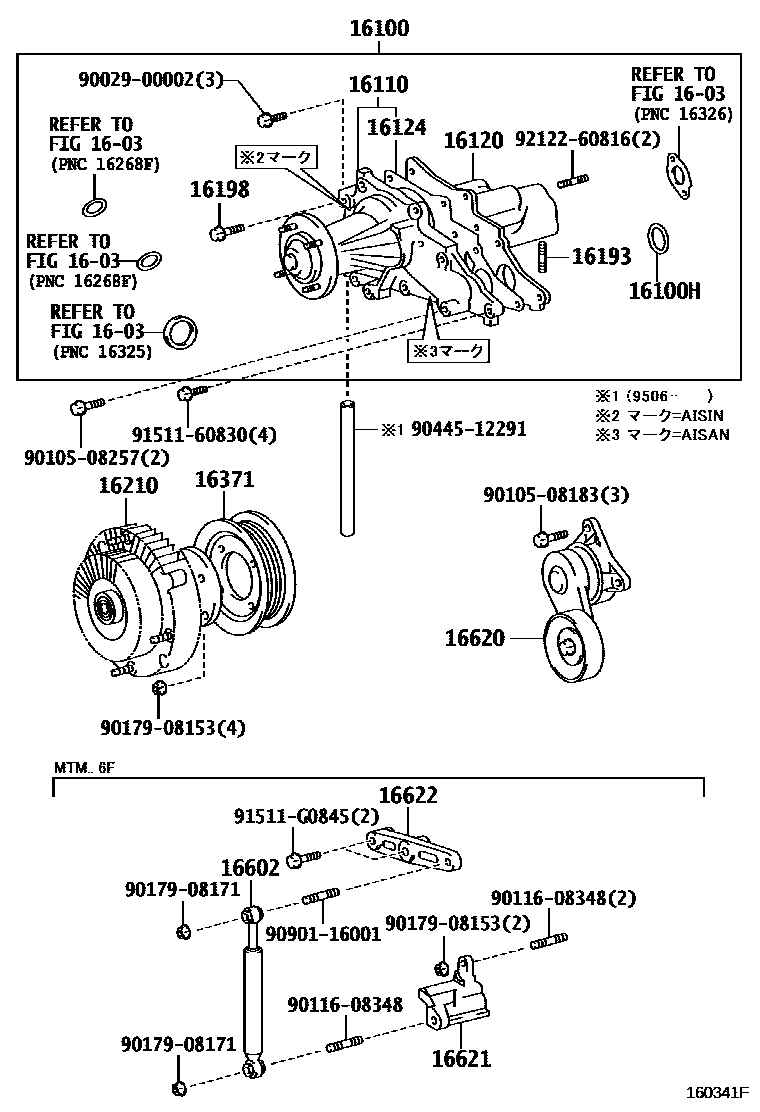

Toyota SUPRA — WATER PUMP

0001 1 0002 1

1603

16100PUMP ASSY, ENGINE WATER

main16100-49835i2JZGE..JZA80¥17,200199305-199506

sub16100-49836¥17,200

sub90445-12291¥320

main16100-49836i2JZGE..JZA80¥17,200199506-199909

sub16100-49837¥17,200

main16100-49837i2JZGE..JZA80¥17,200199909-200208

sub16100-49838¥18,900

main16100-49845i2JZGTE..JZA80¥17,200199305-199506

sub16100-49846¥17,200

sub90445-12291¥320

main16100-49846i2JZGTE..JZA80¥17,200199506-200208

sub16100-49847¥17,200

16100HRING, O(FOR WATER PUMP)

main96761-24040i2JZ#..JZA80¥260199305

16110PUMP ASSY, WATER, W/O COUPLING

main16110-49097i2JZGE..JZA80¥13,300199909-199911

�}�[�N���`�h�r�h�m

main16110-49097i2JZ#..JZA80¥13,300199911-200208

�}�[�N���`�h�r�h�m

main16110-49115i2JZGE..JZA80¥13,300199305-199506

�}�[�N���`�h�r�`�m

sub16110-49116¥13,300

sub90445-12291¥320

main16110-49116i2JZGE..JZA80¥13,300199506-199909

�}�[�N���`�h�r�`�m

sub16100-49837¥17,200

main16110-49125i2JZGTE..JZA80¥11,200199305-199506

�}�[�N���`�h�r�h�m

sub16110-49126¥13,300

sub90445-12291¥320

main16110-49126i2JZGTE..JZA80¥13,300199506-199911

�}�[�N���`�h�r�h�m

sub16110-49097¥13,300

16120COVER ASSY, WATER PUMP

main16102-46072i2JZGE..JZA80¥2,790200006-200108

sub16102-46073¥2,790

main16102-46073i2JZGE..JZA80¥2,790200108-200208

main16120-46080i2JZGE..JZA80¥3,740199909-200006

sub16102-46072¥2,790

main16120-88400i2JZGTE..JZA80¥9,400199305-200208

16124GASKET, WATER PUMP COVER

main16124-46030i2JZ#..JZA80¥520199909-200208

main16124-46030i2JZGTE..JZA80¥520199305-199909

main16124-46040i2JZGE..JZA80¥670199305-199608

sub16124-46041¥670

main16124-46041i2JZGE..JZA80¥670199608-199909

16193BOLT, STUD(FOR WATER PUMP COVER)

main16193-46030i2JZGE..JZA80¥360199909-200208

main16193-46040i2JZGE..JZA80¥260199305-199909

16198BOLT, STUD(FOR WATER PUMP PULLEY SEAT)

main16198-46031i2JZGTE..JZA80¥250199305-199909

main16198-46031i2JZ#..JZA80¥250199909-200208

16210COUPLING ASSY, FLUID

main16210-46030i2JZ#..JZA80¥38,100199305

16371PULLEY, FAN

main16371-46020i2JZ#..JZA80¥6,800199305

16602ABSORBER SUB-ASSY, BELT TENSIONER

main16602-46010i2JZ#..JZA80..6F¥9,400199305-199912

main16602-46010i2JZ#..JZA80..MTM¥9,400199912

16620TENSIONER ASSY, V-RIBBED BELT

main16620-0W020i2JZ#..JZA80..4FC¥29,000199305-199307

sub16620-0W021¥29,000

main16620-0W021i2JZ#..JZA80..4FC¥29,000199307-199505

sub16620-0W022¥29,000

main16620-0W022i2JZ#..JZA80..4FC¥29,000199505-199508

sub16620-0W023¥29,000

main16620-0W023i2JZ#..JZA80..4FC¥29,000199508-199610

sub16620-0W024¥29,100

main16620-0W024i2JZ#..JZA80..4FC¥29,100199610-200006

sub16620-0W025¥29,000

main16620-0W025i2JZ#..JZA80..4FC¥29,000200006

sub16620-0W026¥29,000

main16620-46060i2JZGE..JZA80..5F¥29,200199305-199912

sub16620-0W025¥29,000

main16620-46070i2JZ#..JZA80..MTM¥29,100199912

main16620-46070i2JZ#..JZA80..6F¥29,100199305-199912

16621BRACKET, V-RIBBED BELT TENSIONER

main16621-46010i2JZ#..JZA80..6F¥6,100199305-199912

main16621-46010i2JZ#..JZA80..MTM¥6,100199912

16622ARM, V-RIBBED BELT TENSIONER

main16622-46010i2JZ#..JZA80..6F¥2,900199305-199912

main16622-46010i2JZ#..JZA80..MTM¥2,900199912

9002900002

main90029-00002¥310

9010508183

main90105-08183¥140

9010508257

main90105-08257¥160

9011608348

main90116-08348¥160

9017908153

main90179-08153¥90

9017908171

main90179-08171¥150

9044512291

main90445-12291¥320

9090116001

main90901-16001¥200

9151160830

main91511-60830¥270

91511G0845

main91511-G0845¥170

9212260816

main92122-60816¥170

25 parts on this diagram · 2 diagrams in section
