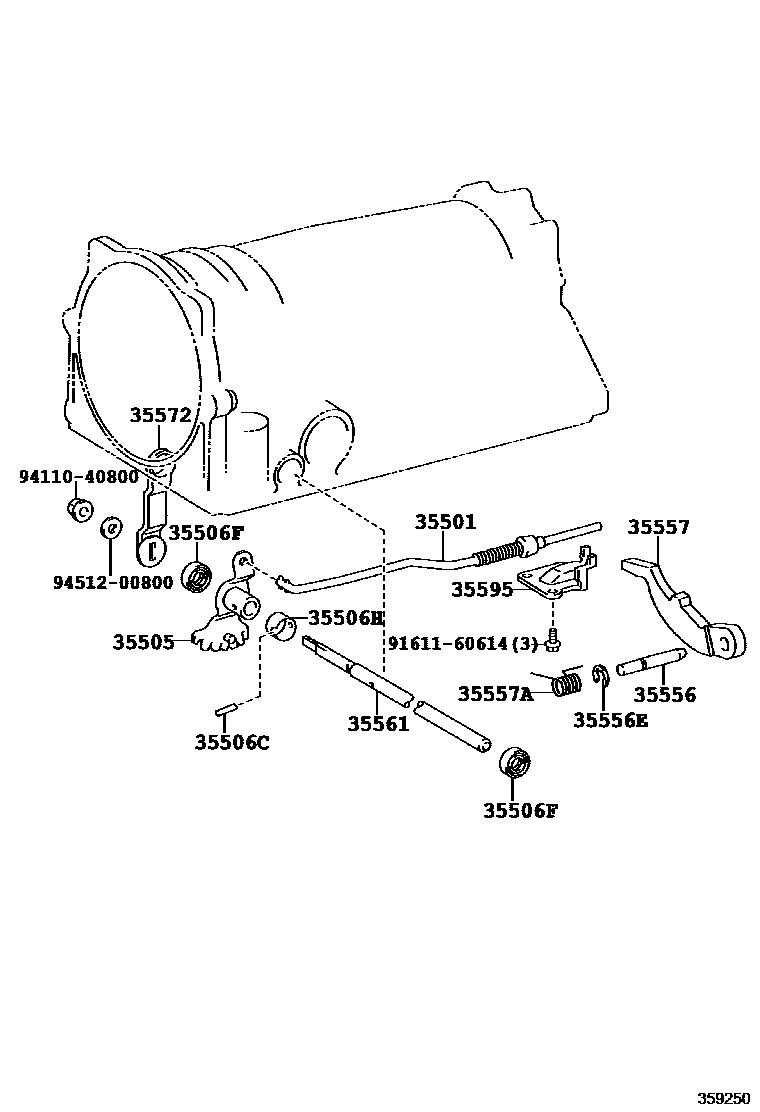

Toyota SUPRA — THROTTLE LINK & VALVE LEVER (ATM)

0001 1A340E 0002 1A340E

35501ROD SUB-ASSY, PARKING LOCK

main35501-30010iJZA80..4FC¥3,650199305-199605

main35501-60010iJZA80..4FC¥1,890199605-200208

35505LEVER SUB-ASSY, MANUAL VALVE

main35505-14010iJZA80..4FC¥2,290199305-199709

main35505-14010iJZA80..4FC..TWC¥2,290199709-200208

main35505-50020iJZA80..4FC..TWT¥1,840199709-200208

35506CPIN, SLOTTED SPRING (FOR MANUAL VALVE LEVER SHAFT)

main90254-04011iJZA80..4FC¥160199305-200208

35506FSEAL, OIL (FOR MANUAL VALVE LEVER SHAFT)

main90311-12002iJZA80..4FC¥270199305-199709

main90311-12002iJZA80..4FC¥270199709-200208

35506HSPACER (FOR MANUAL VALVE LEVER SHAFT)

main90560-20006iJZA80..4FC¥230199305-200208

35556SHAFT, PARKING LOCK PAWL

main35556-30020iJZA80..4FC¥440199305-200208

35556ERING, E (FOR PARKING LOCK PAWL SHAFT)

main90523-08021iJZA80..4FC¥110199305-200208

35557PAWL, PARKING LOCK

main35557-30020iJZA80..4FC¥3,050199305-199605

main35557-60020iJZA80..4FC¥2,490199605-200208

35557ASPRING, TORSION (FOR PARKING LOCK PAWL)

main90508-21002iJZA80..4FC¥190199305-200208

35561SHAFT, MANUAL VALVE LEVER

main35561-30070iJZA80..4FC¥3,170199305-200208

35572LEVER, TRANSMISSION CONTROL SHAFT, RH

main35572-30060iJZA80..4FC..TWC¥1,410199709-200208

main35572-30060iJZA80..4FC¥1,410199306-199709

main35572-30070iJZA80..4FC..TWT¥640199709-200208

main35572-50011iJZA80..4FC¥1,540199305-199306

sub35572-30060¥1,410

35595BRACKET, PARKING LOCK PAWL

main35595-30010iJZA80..4FC¥1,010199305-199605

main35595-60010iJZA80..4FC¥1,460199605-200208

9161160614

main91611-60614¥180

9411040800

main94110-40800¥120

9451200800

main94512-00800¥80

15 parts on this diagram · 2 diagrams in section
