Toyota SUPRA — PARTIAL ENGINE ASSEMBLY

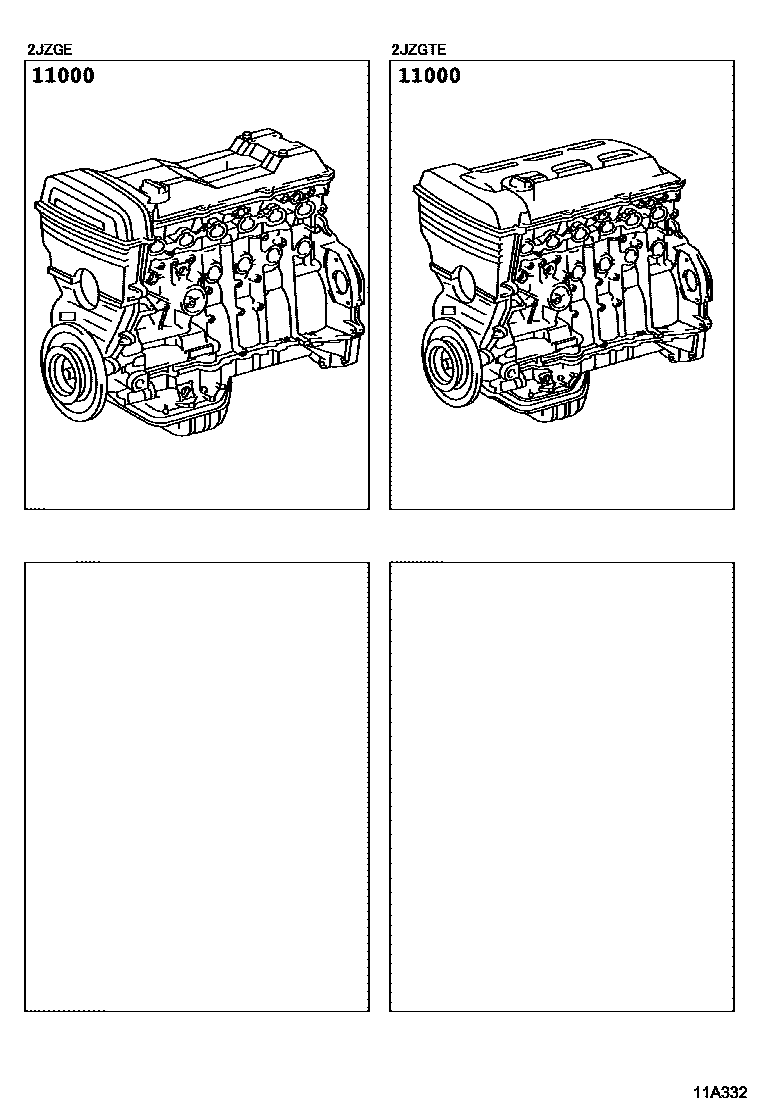

Parts diagram

11000ENGINE ASSY, PARTIAL

main19000-46110i¥1,057,000199305-199604

sub19000-46112¥1,062,000

main19000-46112i¥1,062,000199604-199703

sub19000-46290¥1,062,000

main19000-46140i¥1,057,000199305-199604

sub19000-46142¥1,062,000

main19000-46142i¥1,062,000199604-199709

sub19000-46143¥1,062,000

sub90402-16015¥510

sub90430-16012¥80

main19000-46290i¥1,062,000199703-199709

sub19000-46291¥1,062,000

sub90402-16015¥510

sub90430-16012¥80

main19000-46370i¥1,063,000199709-200208

main19000-46380i¥1,063,000199709-200208

1 parts on this diagram · 1 diagram in section
