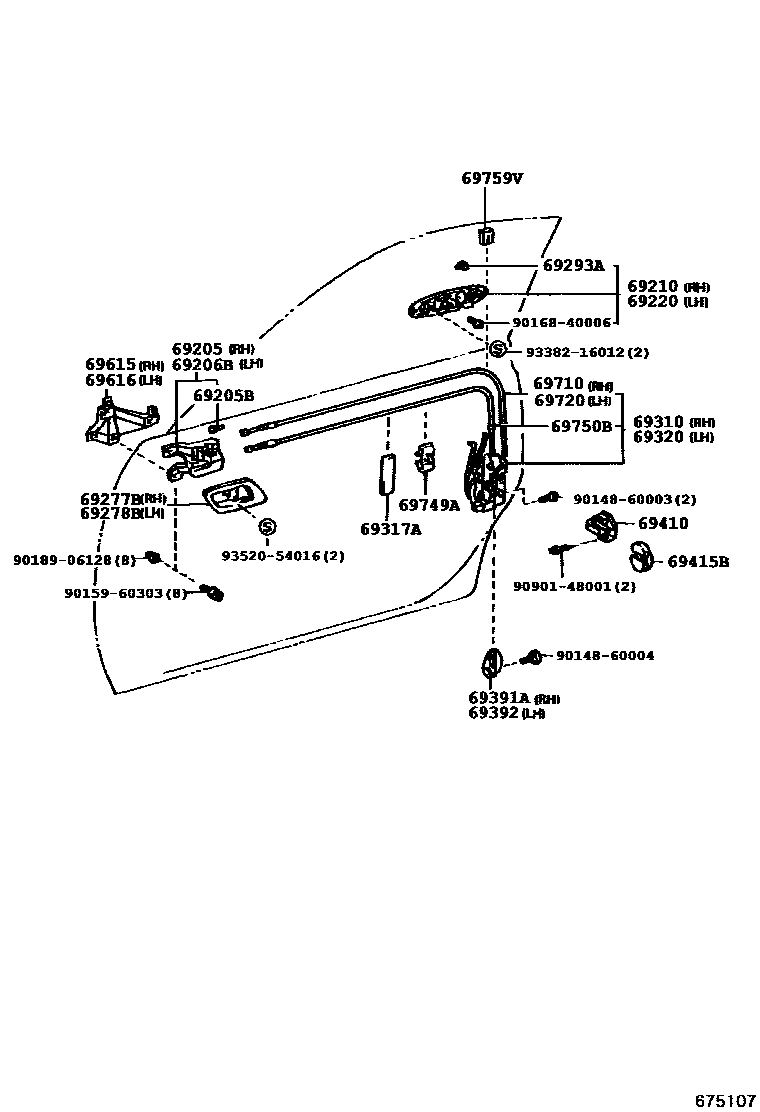

Toyota SUPRA — FRONT DOOR LOCK & HANDLE
69205HANDLE SUB-ASSY, FRONT DOOR INSIDE, RH
BLACK,TRIM0#,2#
BLACK,TRIM2#
69205BCUSHION(FOR FRONT DOOR INSIDE HANDLE)
69206BHANDLE SUB-ASSY, FRONT DOOR INSIDE, LH
BLACK,TRIM0#,2#
BLACK,TRIM2#
69210HANDLE ASSY, FRONT DOOR, OUTSIDE RH
SUPER WHITE 2,040
SILVER ME,199
SILVER GR.SF.,1B9
BLACK,202
SUPER RED 4,3L2
SUPER RED 5,3P0
SUPER BRIGHT YELLOW,576
DK.GREEN M.M.,6P3
GRAYISH GREEN M.M.,6N0
DK. GREEN MC.,6Q7
DEEP TEAL ME,752
BLUE M.M.,8L5
69220HANDLE ASSY, FRONT DOOR OUTSIDE, LH
SUPER WHITE 2,040
DARK BROWNISH YELLOW,1A1
SILVER ME,199
SILVER GR.SF.,1B9
BLACK,202
SUPER RED 4,3L2
SUPER RED 5,3P0
SUPER BRIGHT YELLOW,576
DK.GREEN M.M.,6P3
GRAYISH GREEN M.M.,6N0
DK. GREEN MC.,6Q7
DEEP TEAL ME,752
BLUE M.M.,8L5
69277BBEZEL, FRONT DOOR INSIDE HANDLE, RH
BLACK,TRIM0#,2#
BLACK,TRIM2#
69278BBEZEL, FRONT DOOR INSIDE HANDLE, LH
BLACK,TRIM0#,2#
BLACK,TRIM2#
69293ASNAP, FRONT DOOR OUTSIDE HANDLE
69310LOCK ASSY, FRONT DOOR, RH
69317ASPACER, DOOR LOCK
69320LOCK ASSY, FRONT DOOR, LH
69391ACOVER, FRONT DOOR LOCK, OUTER RH
69392COVER, FRONT DOOR LOCK, OUTER LH
69410PLATE ASSY, FRONT DOOR LOCK STRIKER
69415BCOVER, DOOR LOCK STRIKER, FRONT
69615PLATE, DOOR LOCK REMOTE CONTROL BASE, RH
69616PLATE, DOOR LOCK REMOTE CONT BASE, LH
69710LINK ASSY, FRONT DOOR OPEN CONTROL, RH
69720LINK ASSY, FRONT DOOR OPEN CONTROL, LH
69749ACLAMP, FRONT DOOR LOCK LINK, NO.1
69750BLINK ASSY, FRONT DOOR INSIDE LOCKING, RH
69759VSILENCER, FRONT DOOR LOCK LINK
9014860003
9014860004
9015960303
9016840006
9018906128
9090148001
9338216012
9352054016
30 parts on this diagram · 1 diagram in section
