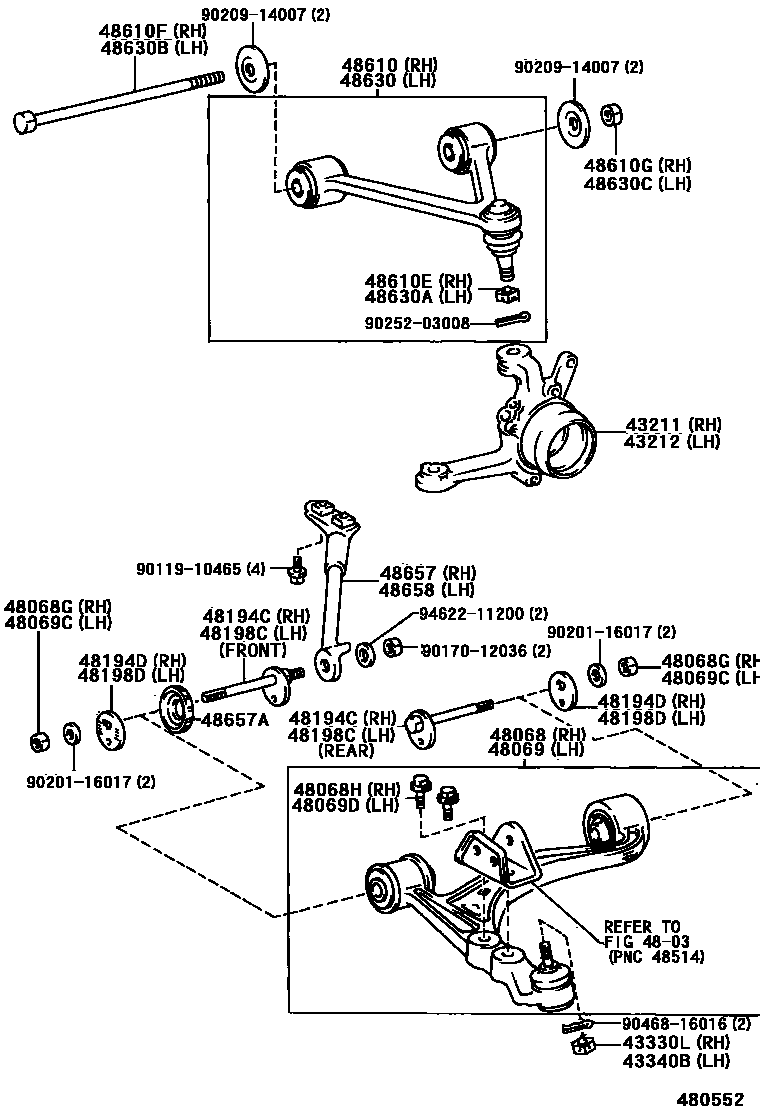

Toyota SUPRA — FRONT AXLE ARM & STEERING KNUCKLE

43211KNUCKLE, STEERING, RH

main43211-24020iJZA80..GZ,RZ,RZS,SZR¥19,700199305-199605

main43211-24020iJZA80¥19,700199605

main43211-24030iJZA80..SZ¥21,100199305-199605

43212KNUCKLE, STEERING, LH

main43212-24020iJZA80¥19,700199605

main43212-24020iJZA80..GZ,RZ,RZS,SZR¥19,700199305-199605

main43212-24030iJZA80..SZ¥21,100199305-199605

43330LNUT, CASTLE (FOR FRONT LOWER BALL JOINT RH)

main90171-16004iJZA80¥200199305

43340BNUT, CASTLE (FOR FRONT LOWER BALL JOINT LH)

main90171-16004iJZA80¥200199305

4803

48068ARM SUB-ASSY, FRONT SUSPENSION, LOWER NO.1 RH

main48068-14080iJZA80¥42,800199305-199605

main48068-14090iJZA80¥45,100199605

48068GNUT(FOR FRONT SUSPENSION LOWER ARM NO.1 RH)

main94115-71600iJZA80¥230199305

sub94130-01602¥110

48068HBOLT(FOR FRONT SUSPENSION LOWER ARM NO.1 RH)

main90119-10079iJZA80¥240199305

48069ARM SUB-ASSY, FRONT SUSPENSION, LOWER NO.1 LH

main48069-14080iJZA80¥42,800199305-199605

main48069-14090iJZA80¥45,100199605

48069CNUT(FOR FRONT SUSPENSION LOWER ARM NO.1 LH)

main94115-71600iJZA80¥230199305

sub94130-01602¥110

48069DBOLT(FOR FRONT SUSPENSION LOWER ARM NO.1 LH)

main90119-10079iJZA80¥240199305

48194CCAM, FRONT SUSPENSION CAMBER ADJUST, NO.1 RH

main48190-14040iJZA80¥1,130199305

main48190-24020iJZA80¥1,080199305

48194DCAM, FRONT SUSPENSION CAMBER ADJUST, NO.2 RH

main48198-24010iJZA80¥670199305

48198CCAM, FRONT SUSPENSION CAMBER ADJUST, NO.1 LH

main48190-14040iJZA80¥1,130199305

main48190-24020iJZA80¥1,080199305

48198DCAM, FRONT SUSPENSION CAMBER ADJUST, NO.2 LH

main48198-24010iJZA80¥670199305

48610ARM ASSY, FRONT SUSPENSION UPPER, RH

main48610-19025iJZA80¥16,300199305-199605

sub48610-29046¥31,900

main48610-29046iJZA80¥31,900199605

48610ENUT, CASTLE(FOR FRONT SUSPENSION UPPER ARM RH)

main90171-14004iJZA80¥200199305

48610FBOLT(FOR FRONT SUSPENSION UPPER ARM RH)

main90101-14046iJZA80¥990199305

48610GNUT(FOR FRONT SUSPENSION UPPER ARM RH)

main90170-14006iJZA80¥120199305

48630ARM ASSY, FRONT SUSPENSION, UPPER LH

main48630-19025iJZA80¥16,300199305-199605

sub48630-29046¥31,900

main48630-29046iJZA80¥31,900199605

48630ANUT, CASTLE(FOR FRONT SUSPENSION UPPER ARM LH)

main90171-14004iJZA80¥200199305

48630BBOLT(FOR FRONT SUSPENSION UPPER ARM LH)

main90101-14046iJZA80¥990199305

48630CNUT(FOR FRONT SUSPENSION UPPER ARM LH)

main90170-14006iJZA80¥120199305

48657STAY, LOWER ARM BRACKET, RH

main48657-14020iJZA80¥2,210199305-199401

sub48657-14021¥2,220

main48657-14021iJZA80¥2,220199401

48657ASTOPPER, FRONT LOWER ARM BUSH

main48657-24020iJZA80¥1,360199605

48658STAY, LOWER ARM BRACKET, LH

main48658-14020iJZA80¥2,210199305-199401

sub48658-14021¥2,220

main48658-14021iJZA80¥2,220199401

9011910465

main90119-10465¥120

9017012036

main90170-12036¥180

9020116017

main90201-16017¥190

9020914007

main90209-14007¥610

9025203008

main90252-03008¥70

9046816016

main90468-16016¥70

9462211200

main94622-11200¥200

33 parts on this diagram · 1 diagram in section
