Toyota SUPRA — FLOOR SIDE MEMBER

57031AREINFORCE SUB-ASSY, FRONT SIDE MEMBER, NO.2 RH

main57031-14010iJZA80¥4,050199305

57032ABRACKET SUB-ASSY, NO.7 BODY MOUNTING, LH

main57032-14010iJZA80¥4,050199305

57033CREINFORCE SUB-ASSY, FRONT SIDE MEMBER, NO.3 RH

main57033-14010iJZA80¥11,900199305-199505

sub57033-14011¥12,000

main57033-14011iJZA80¥12,000199505

57034CREINFORCE SUB-ASSY, FRONT SIDE MEMBER, NO.3 LH

main57034-14010iJZA80¥11,900199305-199505

sub57034-14011¥12,000

main57034-14011iJZA80¥12,000199505

57043REINFORCEMENT SUB-ASSY, FRONT SIDE MEMBER, REAR RH

main57043-24010iJZA80¥5,800199305

57044REINFORCEMENT SUB-ASSY, FRONT SIDE MEMBER, REAR LH

main57044-24010iJZA80¥5,800199305

57101MEMBER SUB-ASSY, FRONT SIDE, RH

main57101-14905iJZA80¥58,800199305-199408

sub57101-14906¥59,000

sub90950-01832¥110

main57101-14906iJZA80¥59,000199408

57102MEMBER SUB-ASSY, FRONT SIDE, LH

main57102-14908iJZA80¥58,800199305-199408

sub57102-14909¥59,000

sub90950-01832¥110

main57102-14909iJZA80¥59,000199408

57105APLATE SUB-ASSY, FRONT SIDE MEMBER, RH

main57105-14030iJZA80¥2,430199305

57106APLATE SUB-ASSY, FRONT SIDE MEMBER, LH

main57106-14020iJZA80¥2,430199305

57111MEMBER, FRONT SIDE, RH

main57111-24030iJZA80¥25,400199305-199408

sub57111-24031¥25,300

sub90950-01832¥110

main57111-24031iJZA80¥25,300199408

57112MEMBER, FRONT SIDE, LH

main57112-24020iJZA80¥25,400199305-199505

sub57112-24021¥25,400

sub90950-01832¥110

main57112-24021iJZA80¥25,400199505

57115APLATE, FRONT SIDE MEMBER, OUTER RH

main57115-24020iJZA80¥10,800199305

57116APLATE, FRONT SIDE MEMBER, OUTER LH

main57116-24020iJZA80¥10,800199305

57195AREINFORCEMENT, FRONT SIDE MEMBER, FRONT RH

main57195-14010iJZA80¥1,030199305

57196AREINFORCEMENT, FRONT SIDE MEMBER, FRONT LH

main57196-14010iJZA80¥1,030199305

57197BOX, TORQUE, FRONT RH

main57197-24020iJZA80¥9,800199305

57198BOX, TORQUE, FRONT LH

main57198-24020iJZA80¥9,800199305

57209AMEMBER SUB-ASSY, ENGINE REAR MOUNTING

main57255-14230iJZA80..TWT¥14,400199305-199505

sub57255-14231¥14,400

main57255-14231iJZA80..(4FC,6F)..(GZ,RZ,RZS,SZR)¥14,400199505

main57255-24060iJZA80..TWC¥14,400199305-199505

sub57255-24061¥14,400

main57255-24061iJZA80..(4FC,5F)..TWC¥14,400199505

57249BRACKET, FLEXIBLE HOSE, NO.1

main57249-24010iJZA80¥750199305

57249ABRACKET, FREXIBLE HOUSE, NO.1, LH

main57249-24010iJZA80¥750199305

57257BRACKET, ENGINE REAR SUPPORT MEMBER

main57257-24020iJZA80¥1,220199305

57258BBRACKET, ENGINE REAR MOUNTING MEMBER, LH

main57258-24020iJZA80¥1,220199305

57401MEMBER SUB-ASSY, MAIN FLOOR SIDE, RH

main57401-14250iJZA80..LB¥17,200199305-199605

sub57401-14251¥17,300

sub90333-20001¥70

main57401-14251iJZA80..LB¥17,300199605

main57401-14260iJZA80..AET¥22,400199305-199908

57402MEMBER SUB-ASSY, MAIN FLOOR SIDE, LH

main57402-14250iJZA80..LB¥17,200199305-199605

sub57402-14251¥17,300

sub90333-20001¥70

main57402-14251iJZA80..LB¥17,300199605

main57402-14260iJZA80..AET¥22,400199305-199908

57425REINFORCEMENT, FRONT FLOOR, NO.2 RH

main57425-14040iJZA80¥10,700199305

57426REINFORCEMENT, FRONT FLOOR, NO.2 LH

main57425-14040iJZA80¥10,700199305

57427AREINFORCEMENT, FRONT FLOOR, NO.3 RH

main57427-14010iJZA80¥3,940199305

57428AREINFORCEMENT, FRONT FLOOR, NO.3 LH

main57427-14010iJZA80¥3,940199305

57451MEMBER, FRONT FLOOR CROSS

main57451-14050iJZA80¥3,880199305

57452MEMBER, FRONT FLOOR CROSS, LH

main57452-14010iJZA80¥3,880199305

57453AREINFORCEMENT, FRONT FLOOR CROSSMEMBER, RH

main57453-14010iJZA80¥3,340199305

57454AREINFORCEMENT, FRONT FLOOR CROSSMEMBER, LH

main57454-14010iJZA80¥3,340199305

57455BRACKET, FRONT SEAT MOUNTING, OUTSIDE RH

main57455-24020iJZA80¥390199305

57456BRACKET, FRONT SEAT MOUNTING, OUTSIDE LH

main57456-24020iJZA80¥390199305

57463MEMBER, CENTER FLOOR CROSS, NO.3

main57463-14901iJZA80¥10,200199305

57468DBRACKET, FRONT SEAT, OUTSIDE, REAR RH

main57468-24010iJZA80¥620199305

57469CBRACKET, FRONT SEAT, OUTSIDE, REAR LH

main57468-24010iJZA80¥620199305

57523BRACE, CENTER FLOOR CROSSMEMBER

main57523-24010iJZA80..LB¥2,150199305

57601MEMBER SUB-ASSY, REAR FLOOR SIDE, RH

main57601-14170iJZA80¥70,200199305

57602MEMBER SUB-ASSY, REAR FLOOR SIDE, LH

main57602-14160iJZA80¥70,200199305

57603AMEMBER SUB-ASSY, REAR FLOOR SIDE, REAR RH

main57603-14010iJZA80¥13,400199305

57604AMEMBER SUB-ASSY, REAR FLOOR SIDE, REAR LH

main57604-14010iJZA80¥13,300199305

57605BMEMBER SUB-ASSY, REAR FLOOR CROSS, NO.1

main57605-14030iJZA80¥18,600199305

57606CMEMBER SUB-ASSY, REAR FLOOR CROSS, NO.2

main57606-14030iJZA80¥21,100199305

57615AMEMBER, REAR FLOOR SIDE, REAR RH

main57615-14100iJZA80¥11,400199305

57616AMEMBER, REAR FLOOR SIDE, REAR LH

main57616-14070iJZA80¥11,400199305

57627CCOVER, REAR FLOOR SIDE MEMBER, RH

main57627-14010iJZA80¥1,600199305

58323BREINFORCE, REAR BUMPER ARM SUPPORT, RH

main58303-14030iJZA80¥4,080199305

58324BREINFORCE, REAR BUMPER ARM SUPPORT, LH

main58304-14020iJZA80¥4,080199305

9011908941

main90119-08941¥190

9011910551

main90119-10551¥240

9033330002

main90333-30002¥70

9095001006

main90950-01006¥260

9095001422

main90950-01422¥240

9095001478

main90950-01478¥190

9095001528

main90950-01528¥300

9095001538

main90950-01538¥200

9095001539

main90950-01539¥110

9095001552

main90950-01552¥120

9095001580

main90950-01580¥230

9095001665

main90950-01665¥390

9095001668

main90950-01668¥120

9095001676

main90950-01676¥150

9095001680

main90950-01680¥90

9095001776

main90950-01776¥160

9095001777

main90950-01777¥200

9095001778

main90950-01778¥200

9095001779

main90950-01779¥200

9095006001

main90950-06001¥170

9095006002

main90950-06002¥60

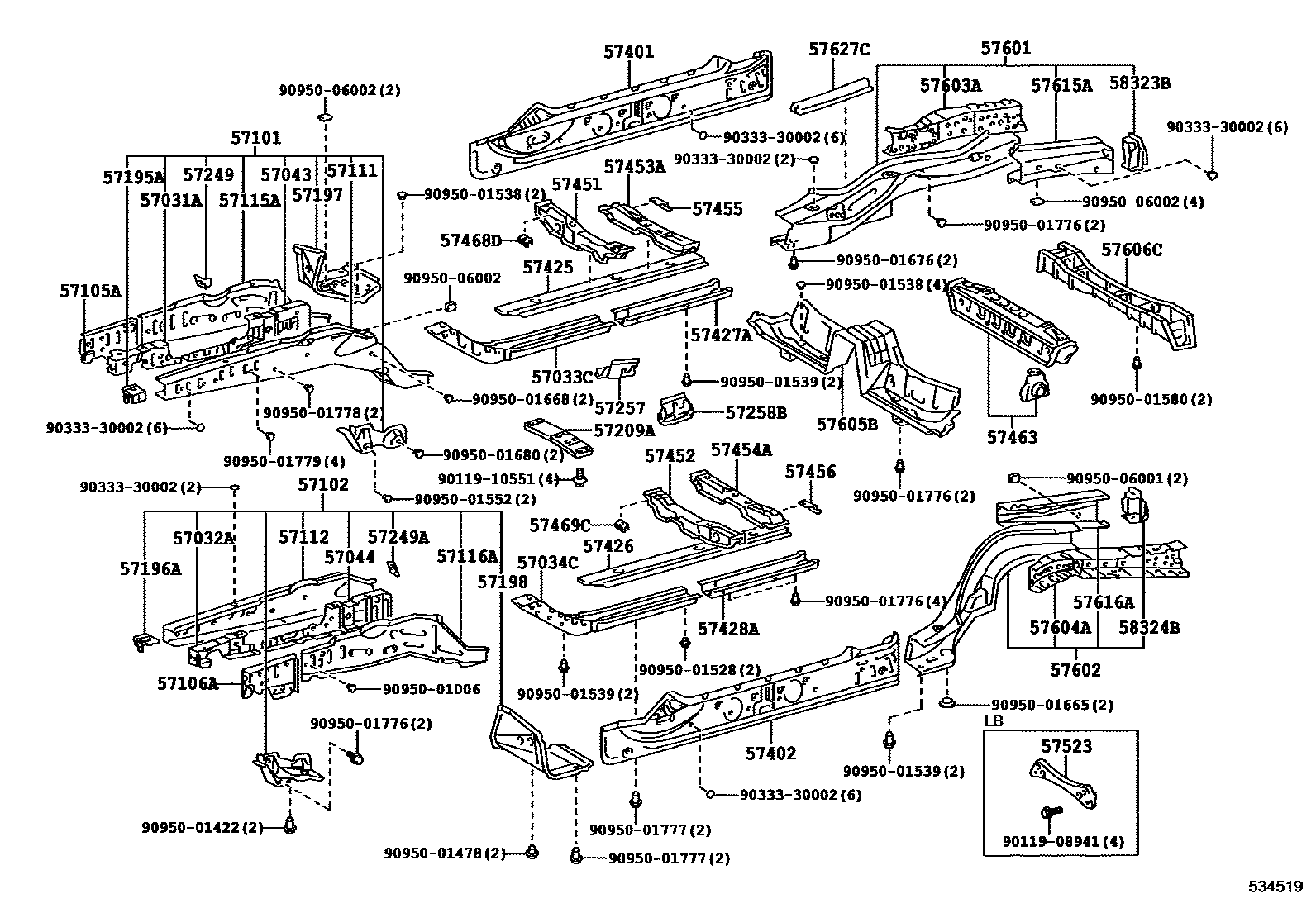

71 parts on this diagram · 1 diagram in section
