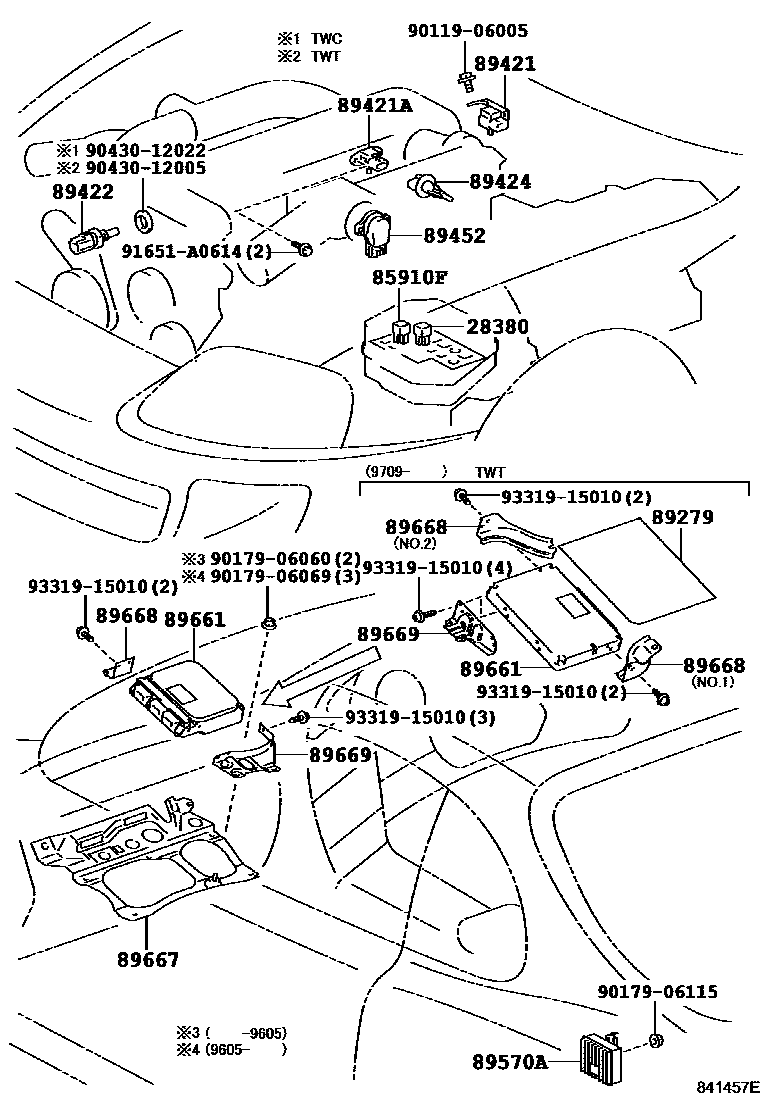

Toyota SUPRA — ELECTRONIC FUEL INJECTION SYSTEM

28380RELAY ASSY, FUEL PUMP

main90987-02009i2JZGTE..JZA80¥4,250199305

85910FRELAY, COMPUTER (FOR EFI)

main90987-02009iJZA80¥4,250199305-199908

89279COVER, ENGINE CONTROL COMPUTER

main89279-24040iJZA80..TWT¥650199709

89421SENSOR ASSY, VACUUM (FOR E.F.I.)

main89420-14080iJZA80..TWC¥9,400199305-199908

89421ASENSOR, TURBO PRESSURE

main89421-12111iJZA80..TWT¥9,400199305

89422SENSOR, WATER TEMPERATURE (FOR E.F.I.)

main89422-20010iJZA80..TWC¥2,420199305-199908

main89422-35010iJZA80..TWT¥2,670199305

89424SENSOR, INLET AIR TEMPERATURE (FOR E.F.I.)

main89424-12010iJZA80..TWC¥3,750199305-199908

main89424-24010iJZA80..TWT¥7,100199305-199709

89452SENSOR, THROTTLE POSITION (FOR E.F.I.)

main89452-22080iJZA80..TWT¥13,300199305-199709

main89452-22090iJZA80..TWC¥13,400199305-199908

main89452-30150iJZA80..TWT¥13,400199709

89570ACOMPUTER ASSY, FUEL PUMP CONTROL

main89570-14200iJZA80¥20,200199305-199311

sub89570-14240¥20,200

main89570-14240iJZA80¥20,200199311-199908

89661COMPUTER, ENGINE CONTROL

main89661-14490iJZA80..4FC..TWT¥160,000199305-199310

sub89661-14491¥160,000

main89661-14491iJZA80..4FC..TWT¥160,000199310-199605

main89661-14500iJZA80..6F¥155,000199305-199310

sub89661-14501¥155,000

main89661-14501iJZA80..6F¥155,000199310-199605

main89661-14600iJZA80..4FC..TWC¥144,000199305-199709

main89661-14610iJZA80..MTM..TWC¥141,000199305

main89661-14770iJZA80..6F..TWT¥143,000199605-199709

main89661-14780iJZA80..4FC..TWT¥147,000199605-199709

main89661-14810iJZA80..4FC..TWC¥144,000199709-199908

main89661-14820iJZA80..4FC..TWT¥147,000199709

main89661-14830iJZA80..6F..TWT¥142,000199709

main89661-14840iJZA80..4FC..TWC¥144,000199908

89667BRACKET, ENGINE CONTROL COMPUTER

main89667-14080iJZA80¥4,920199305-199908

89668BRACKET, ENGINE CONTROL COMPUTER, NO.2

main89668-14030iJZA80¥640199305-199908

main89668-14040iJZA80..TWT¥1,280199709

main89668-14060iJZA80..TWT¥1,180199709

89669BRACKET, ENGINE CONTROL COMPUTER, NO.3

main89669-14040iJZA80..TWT¥910199305-199709

main89669-14070iJZA80..TWC¥1,340199305-199908

main89669-14100iJZA80..TWT¥750199709

9011906005

main90119-06005¥80

9017906060

main90179-06060¥130

9017906069

main90179-06069¥120

9017906115

main90179-06115¥120

9043012005

main90430-12005¥110

9043012022

main90430-12022¥160

91651A0614

main91651-A0614¥120

9331915010

main93319-15010¥70

21 parts on this diagram · 1 diagram in section
