Toyota SUPRA — DECK BOARD & DECK TRIM COVER

58411ABOARD, DECK, NO.1

main58411-14100iJZA80¥520199305-199408

58412ABOARD, DECK, NO.2

main58412-14040iJZA80..LB..SZ¥2,600199305-199605

58438BBOARD, DECK, NO.3

main58438-14020iJZA80¥1,050199305-199605

main58438-14030iJZA80¥1,400199605-199908

58568BSPACER, REAR FLOOR CARPET

main58568-14010iJZA80..RZ,RZS,SZ,SZR¥6,800199305-199605

main58568-14020iJZA80¥11,200199605-199908

62615BCOVER, QUARTER WHEEL HOUSE, INNER RH

main62615-14070-C0iJZA80..GZ199305-199605

BLACK,TRIM0#,2#

main62615-14070-C0iJZA80..RZ,RZS,SZ,SZR199305

BLACK,TRIM2#

62616BCOVER, QUARTER WHEEL HOUSE, INNER LH

main62616-14060-C0iJZA80..GZ199305-199605

BLACK,TRIM0#,2#

main62616-14060-C0iJZA80..RZ,RZS,SZ,SZR199305

BLACK,TRIM2#

64323BCLAMP, TONNEAU COVER

main64323-14040-C0iJZA80..GZ199305-199507

BLACK,TRIM0#,2#

main64323-14040-C0iJZA80..GZ199305-199507

BLACK,TRIM2#

main64323-14041-C0iJZA80..GZ199507-199605

BLACK,TRIM0#,2#

main64323-14041-C0iJZA80..RZ,RZS,SZ,SZR199507

BLACK,TRIM2#

64714BPLUG, HOLE(FOR DECK TRIM SIDE COVER)

main90950-01503-C0iJZA80..GZ199305-199605

BLACK,TRIM0#,2#

sub90950-01503¥190

main90950-01503-C0iJZA80..RZ,RZS,SZ,SZR199305

BLACK,TRIM2#

sub90950-01503¥190

64714ECLIP(FOR DECK TRIM SIDE COVER)

main90467-08150iJZA80¥200199305-199908

64716DCOVER, DECK TRIM, REAR

main64716-14150-C0iJZA80..LB..GZ199305-199505

BLACK,TRIM0#,2#

sub64716-14151¥11,800

main64716-14150-C0iJZA80..LB..GZ199305-199505

BLACK,TRIM2#

sub64716-14151¥11,800

main64716-14151-C0iJZA80..GZ199505-199605

BLACK,TRIM2#

sub64716-14152¥11,900

main64716-14151-C0iJZA80..LB..(RZ,RZS,SZ,SZR)199505-199605

BLACK,TRIM0#,2#

sub64716-14152¥11,900

main64716-14152-C0iJZA80..LB199605

BLACK,TRIM2#

main64716-14160-C0iJZA80..AET..GZ199305-199505

BLACK,TRIM0#,2#

sub64716-14161¥11,800

main64716-14160-C0iJZA80..AET..GZ199305-199505

BLACK,TRIM2#

sub64716-14161¥11,800

main64716-14161-C0iJZA80..AET199505-199605

BLACK,TRIM2#

sub64716-14162¥11,900

main64716-14162-C0iJZA80..AET199605-199908

BLACK,TRIM2#

64716ECLIP(FOR DECK TRIM REAR COVER)

main90467-07108iJZA80¥200199305-199908

64716FPLUG, HOLE(FOR DECK TRIM REAR COVER)

main90950-01503-C0iJZA80..RZ,RZS,SZ,SZR199305

BLACK,TRIM2#

sub90950-01503¥190

main90950-01503-C0iJZA80..GZ199305-199605

BLACK,TRIM0#,2#

sub90950-01503¥190

64730CBOARD, DECK TRIM SIDE, RH

main64731-14130-C0iJZA80..RZ,SZ,SZR199305-199505

BLACK,TRIM2#

sub64731-14131¥5,700

main64731-14130-C0iJZA80..RZ,SZ,SZR199305-199505

BLACK,TRIM0#,2#

sub64731-14131¥5,700

main64731-14131-C0iJZA80..GZ199505-199605

BLACK,TRIM0#,2#

sub64731-14132¥5,800

main64731-14131-C0iJZA80..GZ199505-199605

BLACK,TRIM2#

sub64731-14132¥5,800

main64731-14132-C0iJZA80199605

BLACK,TRIM2#

64740BBOARD, DECK TRIM SIDE, LH

main64732-14130-C0iJZA80..GZ199305-199505

BLACK,TRIM2#

sub64732-14131¥5,700

main64732-14130-C0iJZA80..RZ,SZ,SZR199305-199505

BLACK,TRIM0#,2#

sub64732-14131¥5,700

main64732-14131-C0iJZA80..GZ199505-199605

BLACK,TRIM0#,2#

sub64732-14132¥5,800

main64732-14131-C0iJZA80..GZ199505-199605

BLACK,TRIM2#

sub64732-14132¥5,800

main64732-14132-C0iJZA80199605

BLACK,TRIM2#

64770DCOVER ASSY, SPARE WHEEL

main64771-14100iJZA80¥8,100199305-199908

main64771-14110iJZA80..LB..SZ¥3,280199305-199605

64775DGUARD, SPARE WHEEL

main64775-14020iJZA80¥2,320199605-199908

64778DPROTECTOR, SPARE WHEEL

main64778-14030iJZA80¥720199305-199908

sub64768-53011¥1,150

64910JCOVER ASSY, TONNEAU

main64910-14060-C0iJZA80..GZ199305-199605

BLACK,TRIM0#,2#

main64910-14060-C0iJZA80..RZ,RZS,SZ,SZR199305

BLACK,TRIM2#

9016840055

main90168-40055¥60

9356754514

main93567-54514¥80

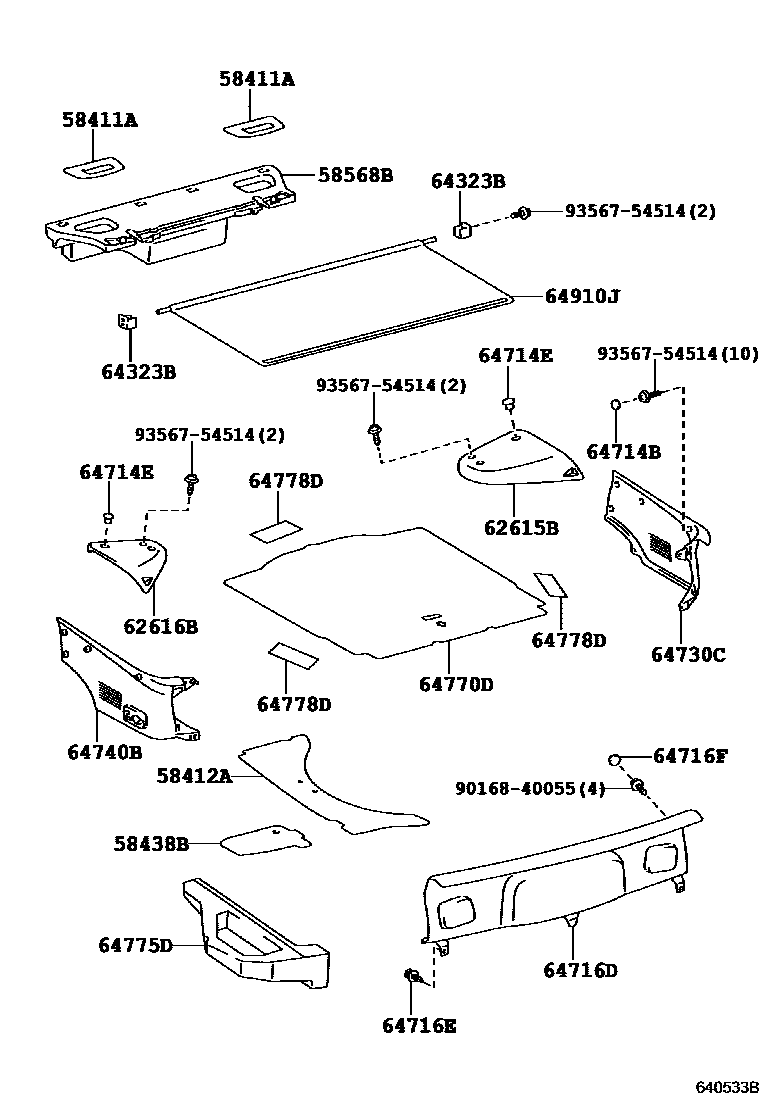

20 parts on this diagram · 1 diagram in section
