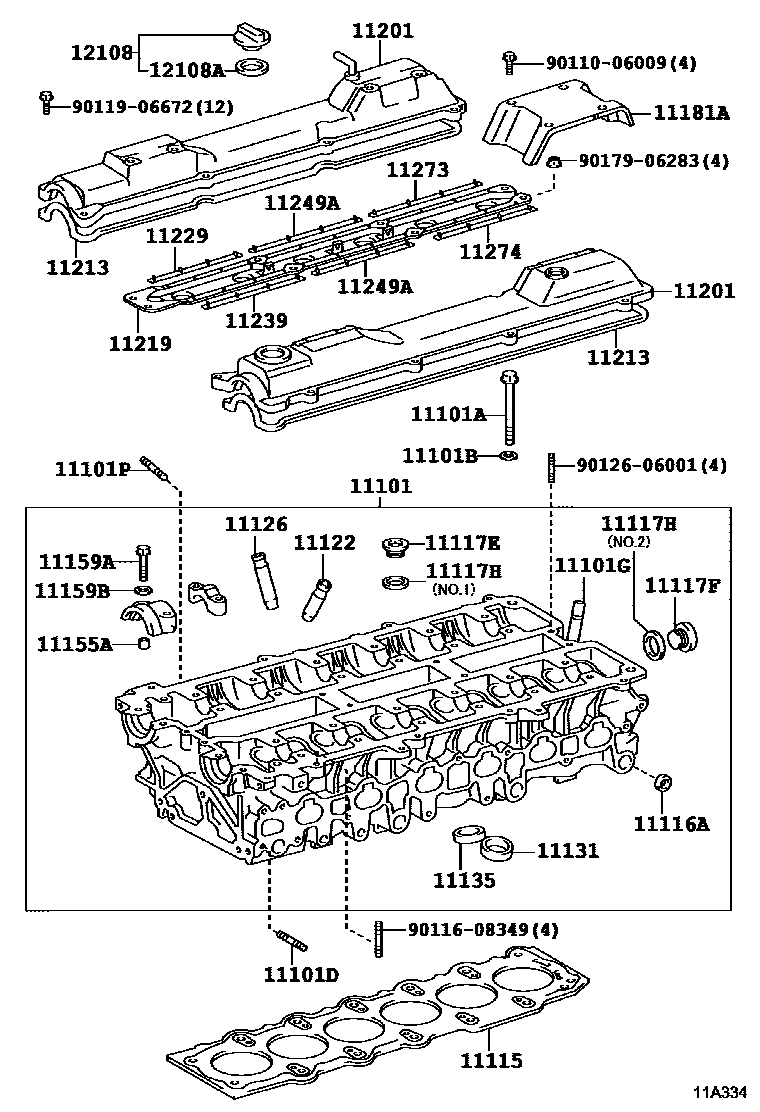

Toyota SUPRA — CYLINDER HEAD
11101HEAD SUB-ASSY, CYLINDER
11101ABOLT(FOR CYLINDER HEAD SET)
11101BWASHER, PLATE(FOR CYLINDER HEAD SET)
11101DBOLT, STUD(FOR WATER OUTLET)
11101GUNION(FOR CYLINDER HEAD)
11101PBOLT, STUD(FOR DISTRIBUTOR)
11115GASKET, CYLINDER HEAD
11116APLUG, TIGHT, NO.1
11117EPLUG, W/HEAD STRAIGHT SCREW, NO.1
11117FPLUG, W/HEAD STRAIGHT SCREW, NO.2
11117HGASKET(FOR WATER HOLE)
11122BUSH, INTAKE VALVE GUIDE
11126BUSH, EXHAUST VALVE GUIDE
11131SEAT, INTAKE VALVE
11135SEAT, EXHAUST VALVE
11155APIN, RING W/HEAD
11159ABOLT(FOR HEAD TO CAMSHAFT BEARING CAP)
11159BWASHER, SEAL(FOR HEAD TO CAMSHAFT BEARING CAP)
11181ACOVER, CYLINDER HEAD, REAR
11201COVER SUB-ASSY, CYLINDER HEAD
11213GASKET, CYLINDER HEAD COVER
11219COVER, CYLINDER HEAD, NO.3
11229GASKET, CYLINDER HEAD COVER, NO.3
11239GASKET, CLINDER HEAD CONER, NO.4
11249AGASKET, CLINDER HEAD CONER, NO.5
11273GASKET, CYLINDER BLOCK SIDE COVER
11274GASKET, CYLINDER HEAD COVER, NO.7
12108CAP SUB-ASSY, OIL FILLER
12108AGASKET(FOR OIL FILLER CAP)
9011006009
9011608349
9011906672
9012606001
9017906283
34 parts on this diagram · 3 diagrams in section
