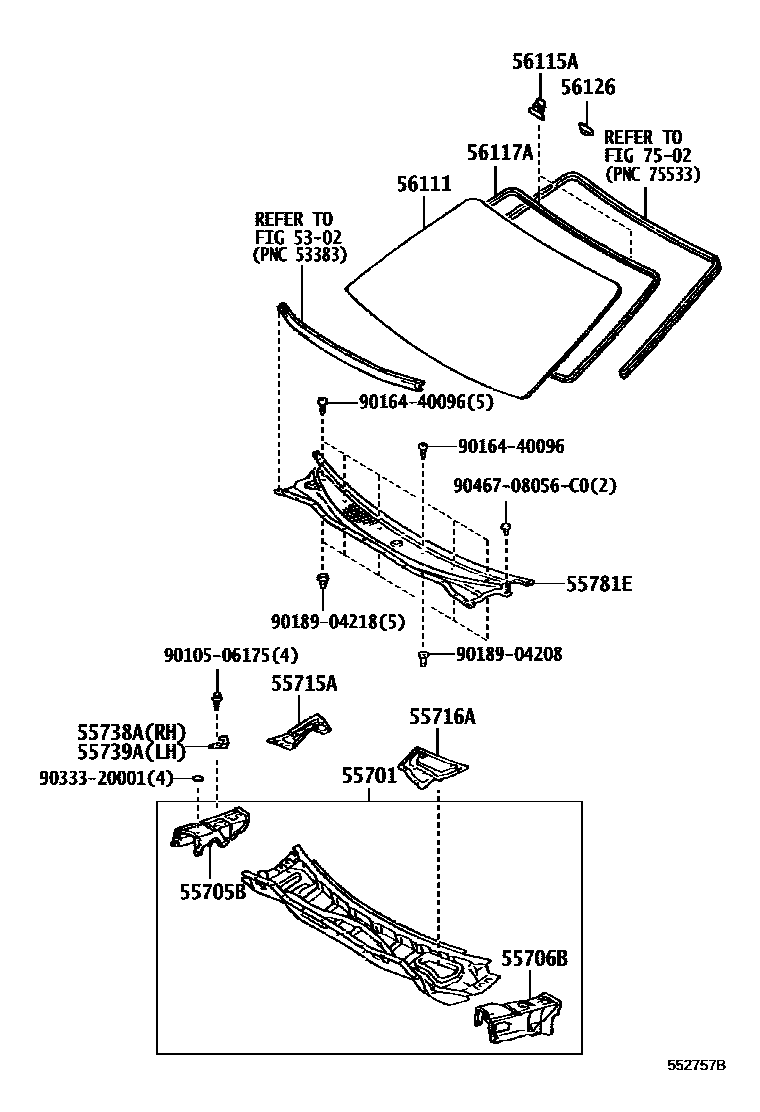

Toyota SUPRA — COWL PANEL & WINDSHIELD GLASS

5302

55701PANEL SUB-ASSY, COWL

main55700-14790iJZA80¥39,900199305

55705BPANEL SUB-ASSY, COWL TOP SIDE, RH

main55705-14900iJZA80¥6,800199305

55706BPANEL SUB-ASSY, COWL TOP SIDE, LH

main55706-14900iJZA80¥6,800199305

55715ABRACE, COWL TOP TO APRON, RH

main55715-14100iJZA80¥2,110199305

55716ABRACE, COWL TOP TO APRON, LH

main55716-14100iJZA80¥3,400199305

55738ASTOPPER, HOOD, RH

main55738-14020iJZA80¥550199305

55739ASTOPPER, HOOD, LH

main55739-14040iJZA80¥550199305

55781ELOUVER SUB-ASSY, COWL TOP VENTILATOR

main55708-14020iJZA80¥18,400199305

main55708-14040iJZA80¥17,600199305

sub55708-14020¥18,400

56111GLASS, WINDSHIELD

main56101-14010iJZA80¥119,000199505-199605

sub56101-14020¥127,000

main56101-14020iJZA80¥127,000199305-199505

sub56101-14021¥127,000

main56101-14050iJZA80¥119,000199605

56115ASTOPPER, WINDSHIELD GLASS, NO.1

main56115-14030iJZA80¥660199305

56117ADAM, WINDOW GLASS ADHESIVE

main04562-12010iJZA80..GZ,RZ,SZ,SZR¥2,100199305-199605

56126SPACER, WINDSHIELD GLASS, NO.2

main56126-22030iJZA80¥130199305

7502

9010506175

main90105-06175¥120

9016440096

main90164-40096¥70

9018904208

main90189-04208¥130

9018904218

main90189-04218¥130

9033320001

main90333-20001¥70

9046708056C0

main90467-08056C0

20 parts on this diagram · 1 diagram in section
