Toyota SUPRA — CONSOLE BOX & BRACKET

58804APANEL SUB-ASSY, CONSOLE, UPPER

main58804-14040iJZA80..MTM¥11,800199305-199605

main58804-14050iJZA80..4FC¥10,000199305-199605

main58804-14080iJZA80..MTM¥12,000199605

sub58804-14040¥11,800

main58804-14090iJZA80..4FC¥10,000199908

main58804-14090iJZA80..4FC¥10,000199605-199908

58811ABOX, CONSOLE, FRONT

main58802-14060-C0iJZA80..GZ199305-199605

BLACK,TRIM0#,2#

main58802-14060-C0iJZA80..RZ,RZS,SZ,SZR199305

BLACK,TRIM2#

58905DOOR SUB-ASSY, CONSOLE COMPARTMENT

main58905-14080-C0iJZA80..RZ,SZ199305-199404

BLACK,TRIM0#,2#

sub58905-14081¥15,900

main58905-14080-C0iJZA80..RZ,SZ199305-199404

BLACK,TRIM2#

sub58905-14081¥15,900

main58905-14081-C0iJZA80..RZ,RZS,SZ,SZR199404

BLACK,TRIM2#

main58905-14081-C0iJZA80..GZ199404-199605

BLACK,TRIM0#,2#

58908ALOCK SUB-ASSY, CONSOLE COMPARTMENT DOOR

main58908-14020-C0iJZA80..GZ199305-199605

BLACK,TRIM0#,2#

main58908-14020-C0iJZA80..RZ,RZS,SZ,SZR199305

BLACK,TRIM2#

58910CBOX ASSY, CONSOLE, REAR

main58911-14120-C0iJZA80..GZ199305-199404

BLACK,TRIM0#,2#

sub58901-14H01¥17,400

main58911-14120-C0iJZA80..GZ199305-199404

BLACK,TRIM2#

sub58901-14H01¥17,400

main58911-14121-C0iJZA80..GZ199404-199605

BLACK,TRIM0#,2#

main58911-14121-C0iJZA80..RZ,RZS,SZ,SZR199404

BLACK,TRIM2#

58941ACOVER, PARKING BRAKE HOLE

main58904-14010iJZA80¥1,270199305-199908

main58904-14010iJZA80¥1,270199908

58994ABRACKET, CONSOLE BOX MOUNTING, NO.4

main58994-14010iJZA80..MTM¥620199305

58997BRACKET, CONSOLE BOX MOUNTING, NO.3

main58997-14040iJZA80..RZ,RZS,SZ,SZR¥660199305-199605

9014880005

main90148-80005¥130

9025403007

main90254-03007¥100

9165160614

main91651-60614¥70

9356755016

main93567-55016¥110

9356755018

main93567-55018¥120

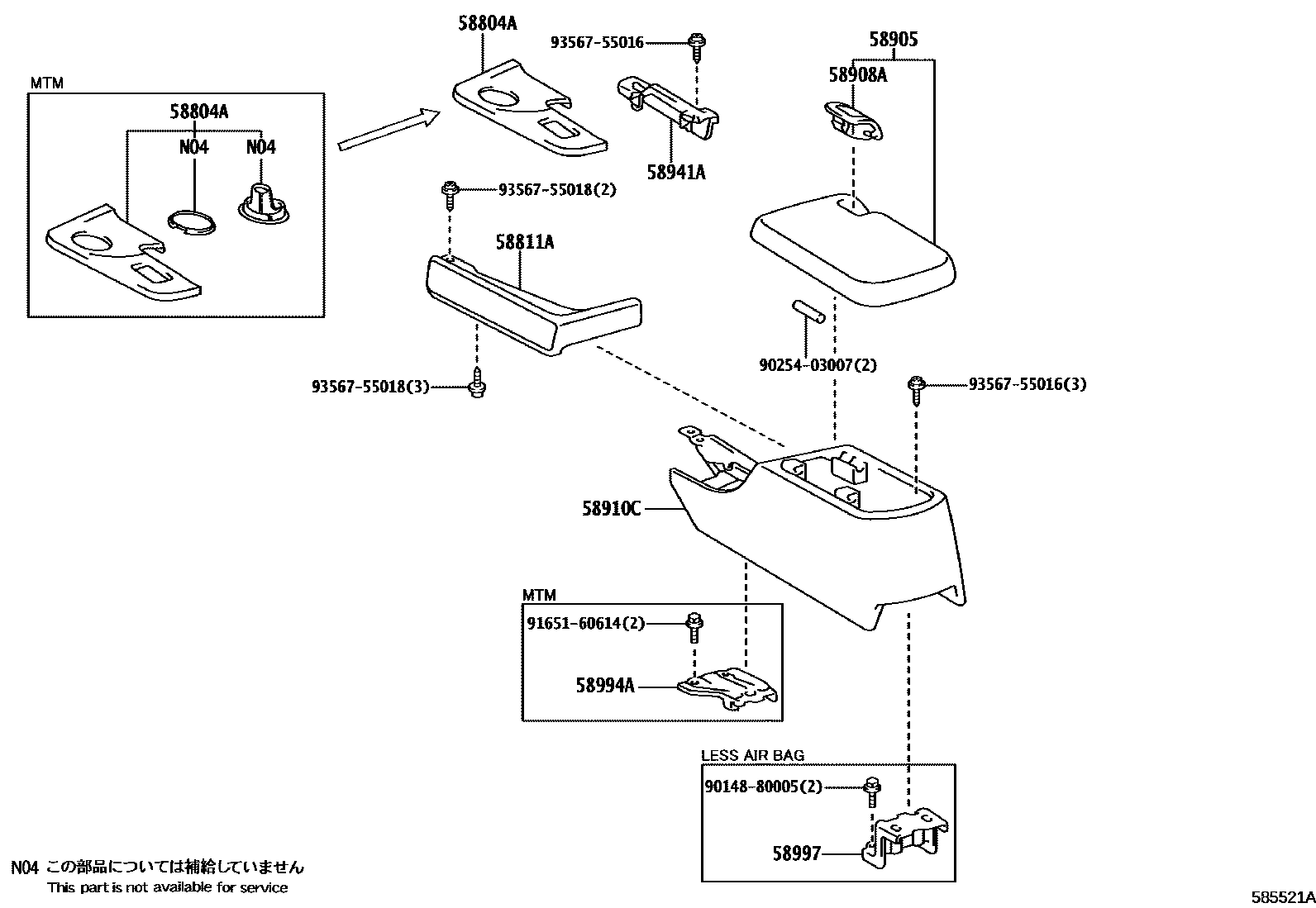

13 parts on this diagram · 1 diagram in section
