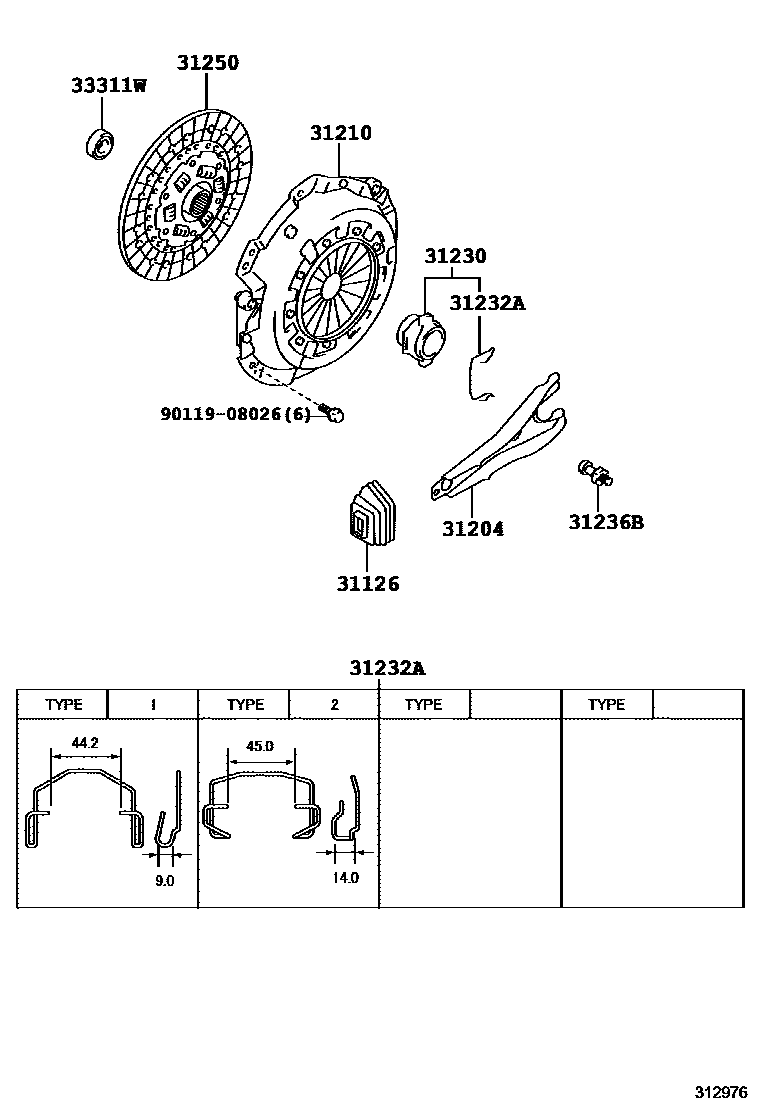

Toyota SUPRA — CLUTCH & RELEASE FORK

0001 1 0002 1

31126BOOT, CLUTCH RELEASE FORK

main31126-22050iJZA80..5F¥1,040199305-200207

31204FORK SUB-ASSY, CLUTCH RELEASE

main31204-14060iJZA80..6F¥3,990199305

main31204-22050iJZA80..5F¥3,040199305-200207

31210COVER ASSY, CLUTCH

main31210-14170iJZA80..6F..TWT¥24,500199305

main31210-14180iJZA80..SZR¥16,900199605

main31210-30260iJZA80..5F¥16,900199305-199309

sub31210-30261¥16,900

main31210-30261iJZA80..5F¥16,900199309

sub31210-30262¥16,900

31230BEARING ASSY, CLUTCH RELEASE

main31230-22100iJZA80..5F¥2,340199305-200207

sub31230-22101¥2,340

31232ACLIP, RELEASE BEARING HUB

main31232-22020iJZA80..5F¥230199305-199605

main31232-22020iJZA80..5F¥230199605-200207

TYPE 1

main31232-22030iJZA80..5F¥240199305-199605

sub31232-22020¥230

main31232-22030iJZA80..5F¥240199605-200207

TYPE 2

sub31232-22020¥230

31236BSUPPORT, RELEASE FORK

main31236-14010iJZA80..5F¥710199305-200207

main31236-14030iJZA80..6F¥2,000199305-200208

31250DISC ASSY, CLUTCH

main31250-14190iJZA80..6F..TWT¥16,500199305

main31250-14200iJZA80..SZR¥23,300199605

main31250-30390iJZA80..5F¥18,800199305-199901

sub31250-30391¥18,700

main31250-30391iJZA80..5F¥18,700199901

33311WBEARING (FOR INPUT SHAFT)

main90363-12002iJZA80..MTM¥520199305

sub90363-12024¥520

9011908026

main90119-08026¥120

9 parts on this diagram · 2 diagrams in section
