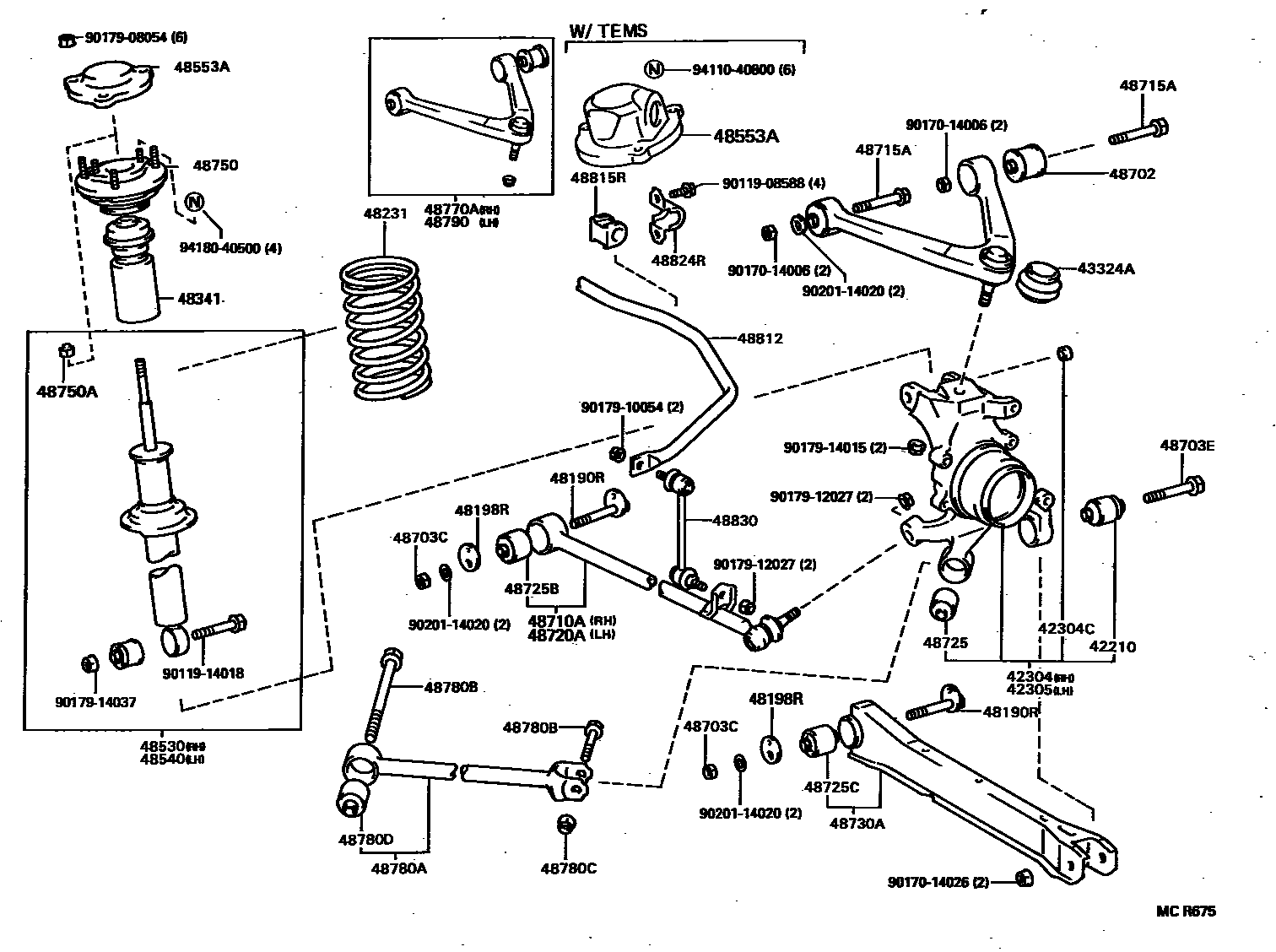

Toyota SUPRA — REAR SPRING & SHOCK ABSORBER
42210BUSH ASSY, LOWER BALL
42304CARRIER SUB-ASSY, REAR AXLE, RH
42304CSPACER (FOR REAR AXLE CARRIER)
42305CARRIER SUB-ASSY, REAR AXLE, LH
43324ACOVER, UPPER BALL JOINT DUST
48190RCAM ASSY, CAMBER ADJUST
48198RCAM, REAR SUSPENSION CAMBER ADJUST, NO.2
48231SPRING, COIL, REAR
48341BUMPER, REAR SPRING
48530ABSORBER ASSY, SHOCK, REAR RH
48540ABSORBER ASSY, SHOCK, REAR LH
48553ACAP, SHOCK ABSORBER
W(TEMS),RH
W(TEMS),LH
48702BUSH SUB-ASSY, UPPER CONTROL ARM
48703CNUT(FOR REAR SUSPENSION ARM)
48703EBOLT(FOR REAR SUSPENSION ARM)
*14-1.5PX70-64
48710AARM ASSY, REAR SUSPENSION, NO.1 RH
48715ABOLT, HEXAGON(FOR UPPER CONTROL ARM)
FR
RR
48720AARM ASSY, REAR SUSPENSION, NO.1 LH
48725BUSH, LOWER CONTROL ARM
48725BBUSH, REAR SUSPENSION ARM, NO.1
48725CBUSH, REAR SUSPENSION ARM, NO.2
48730AARM ASSY, REAR SUSPENSION, NO.2
48750SUPPORT ASSY, REAR SUSPENSION
48750ANUT(FOR REAR SUPPORT TO REAR SHOCK ABSORBER)
48770AARM ASSY, UPPER CONTROL, REAR RH
48780AROD ASSY, STRUT, REAR
48780BBOLT(FOR STRUT ROD)
BODY SIDE
CARRIER SIDE
48780DBUSH, STRUT ROD
48790ARM ASSY, UPPER CONTROL, REAR LH
48812BAR, STABILIZER, REAR
48815RBUSH, STABILIZER(FOR REAR)
48824RBRACKET, STABILIZER(FOR REAR)
48830LINK ASSY, REAR STABILIZER
9011908588
9011914018
9017014006
9017014026
9017908054
9017910054
9017912027
9017914015
9017914037
9020114020
9411040800
9418040500
46 parts on this diagram · 1 diagram in section
