Toyota SUPRA — PARTIAL ENGINE ASSEMBLY

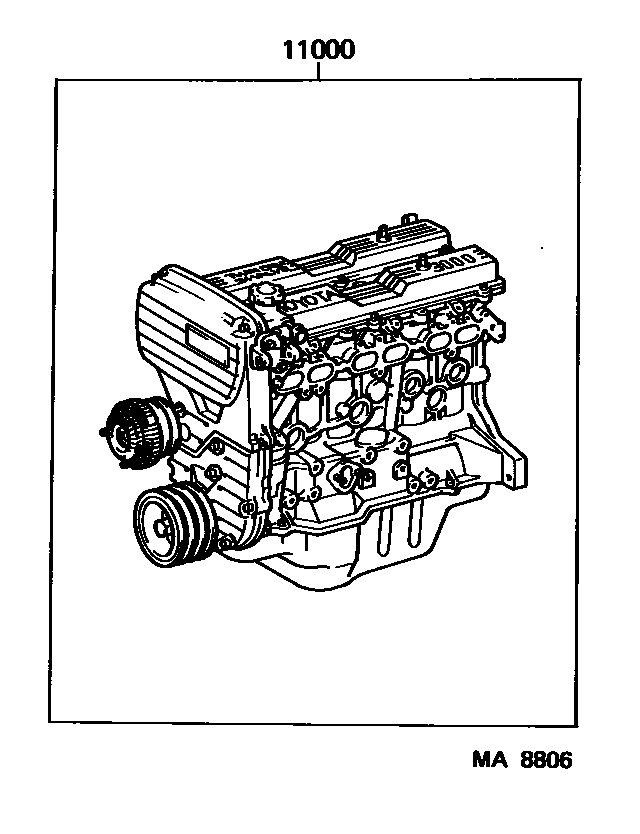

Parts diagram
11000ENGINE ASSY, PARTIAL
main19000-42180i198808-198903
main19000-42181i198903-198908
main19000-42182i198908-199008
main19000-42183i¥1,057,000199008-199305
main19000-42240i¥1,063,000198808-198903
sub19000-42241
main19000-42241i198903-198908
main19000-42242i198908-199008
main19000-42260i¥1,063,000198808-198903
sub19000-42261
main19000-42261i198903-198908
main19000-42270i¥1,063,000198808-198903
sub19000-42271
main19000-42271i198903-198908
main19000-42280i¥1,063,000198808-198903
sub19000-42281
main19000-42281i198903-198908
main19000-42282i198908-199008
main19000-42283i¥1,057,000199008-199305
main19000-42350i198908-199008
main19000-42351i199008-199305
main19000-42360i199008-199305

1 parts on this diagram · 1 diagram in section
