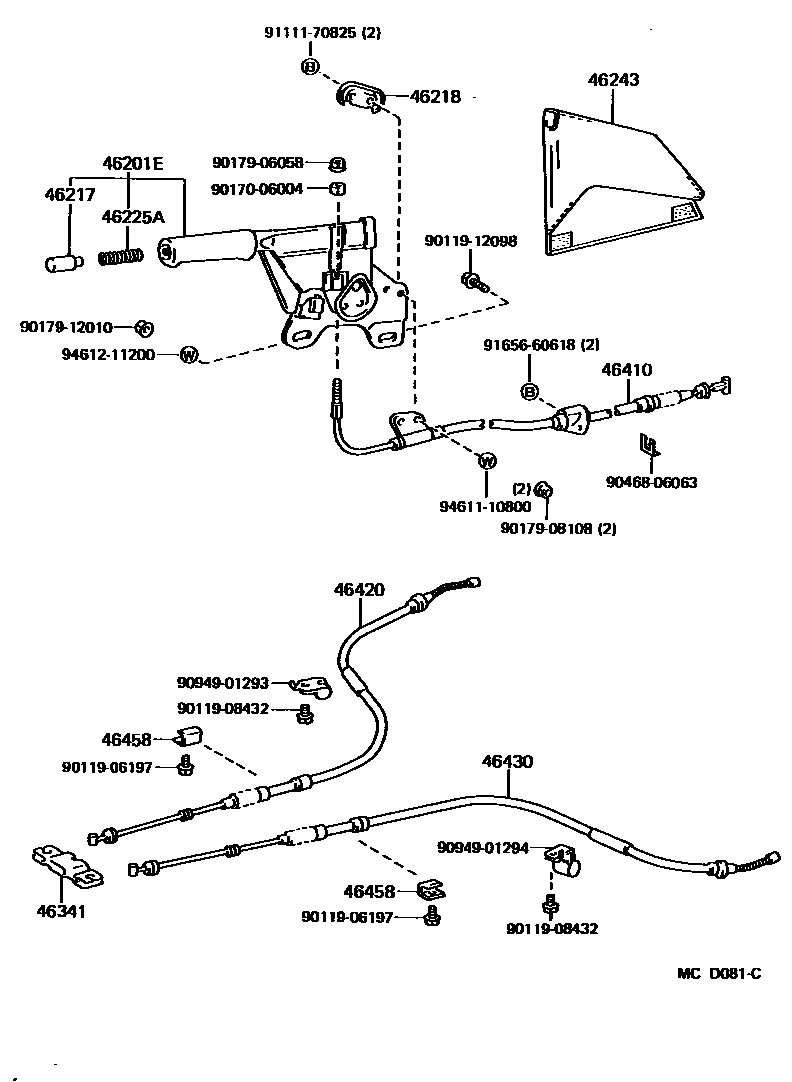

Toyota SUPRA — PARKING BRAKE & CABLE

0001 1 0002 1

46201ELEVER SUB-ASSY, PARKING BRAKE

main46201-14161-01iMA70..RHD..GEN199008-199108

BLACK,TRIM1#,3#,8#

main46201-14161-01iMA70..RHD..GEN198808-199008

BLACK,TRIM1#,3#,4#,8#

main46201-14171-01iMA70..LHD..TWC199008-199108

BLACK,TRIM1#,3#,8#

main46201-14171-01iMA70..V198808-198908

BLACK,TRIM1#,3#,8#

main46201-14171-01iMA70..V198808-198908

BLACK,TRIM1#,3#,4#,8#

main46201-14171-01iMA70..LHD..TWC199108-199305

BLACK,TRIM3#,8#

main46201-14171-01iMA70..LHD..(GEN,V)198908-199008

BLACK,TRIM1#,3#,4#,8#

main46201-14181-01iMA70..LHD..(C,EUR)198808-199108

BLACK,TRIM1#,4#,8#

main46201-14181-01iMA70..LHD..C199108-199305

BLACK,TRIM8#

main46201-14191-01iMA70..ARL199008-199305

BLACK,TRIM1#,3#,8#

main46201-14191-01iMA70..ARL199008-199305

BLACK,TRIM1#,8#

main46201-14191-01iMA70..ARL198908-199008

BLACK,TRIM1#,3#,4#,8#

main46201-14191-01iMA70..RHD..(C,EUR)198808-198908

BLACK,TRIM1#,8#

main46201-14191-01iMA70..ARL198901-198908

BLACK,TRIM3#,8#

main46201-14191-01iMA70..ARL198908-199008

BLACK,TRIM1#,4#,8#

main46201-14191-01iMA70..ARL198808-198901

BLACK,TRIM1#,3#,8#

46217KNOB, PARKING BRAKE RELEASE ROD

main46217-12020-11iMA70..V198808-198908

BLACK,TRIM1#,3#,8#

sub46217-12020¥230

sub46217-16030¥240

main46217-12020-11iMA70..V198808-198908

BLACK,TRIM1#,3#,4#,8#

sub46217-12020¥230

sub46217-16030¥240

main46217-12020-11iMA70..GEN,V198908-199008

BLACK,TRIM1#,3#,4#,8#

sub46217-12020¥230

sub46217-16030¥240

main46217-12020-11iMA70..GEN,V199008-199108

BLACK,TRIM1#,3#,8#

sub46217-12020¥230

sub46217-16030¥240

main46217-12020-11iMA70..GEN,V199108-199305

BLACK,TRIM3#,8#

sub46217-12020¥230

sub46217-16030¥240

main46217-32010-01iMA70..ARL198901-198908

BLACK,TRIM3#,8#

sub46217-32010¥250

main46217-32010-01iMA70..ARL198908-199008

BLACK,TRIM1#,3#,4#,8#

sub46217-32010¥250

main46217-32010-01iMA70..ARL198908-199008

BLACK,TRIM1#,4#,8#

sub46217-32010¥250

main46217-32010-01iMA70..ARL198808-198901

BLACK,TRIM1#,3#,4#,8#

sub46217-32010¥250

main46217-32010-01iMA70..LHD..C199008-199108

BLACK,TRIM1#,4#,8#

sub46217-32010¥250

main46217-32010-01iMA70..LHD..C199008-199108

BLACK,TRIM1#,8#

sub46217-32010¥250

main46217-32010-01iMA70..ARL199008-199305

BLACK,TRIM1#,3#,8#

sub46217-32010¥250

main46217-32010-01iMA70..C199108-199305

BLACK,TRIM1#,8#

sub46217-32010¥250

main46217-32010-01iMA70..C,EUR198808-198908

BLACK,TRIM1#,4#,8#

sub46217-32010¥250

46218PROTECTOR, PARKING BRAKE LEVER EDGE

main46218-14030iMA70..ARL,C,EUR¥300198808-199008

main46218-14030iMA70..ARL,C¥300199008-199305

46225ASPRING, COMPRESSION(FOR PARKING BRAKE PAWL ROD)

main90501-10069iMA70¥160198808-199008

main90501-10069iMA70¥160199008-199305

46243COVER, PARKING BRAKE LEVER

main46243-14090-02iMA70..RHD..(ARL,GEN)198808-199008

MAROON,TRIM3#

sub46243-14090¥3,140

main46243-14090-03iMA70..RHD198808-198901

MEDIUM GRAY,TRIM1#

sub46243-14090¥3,140

main46243-14090-03iMA70..RHD..(C,EUR,GEN)198901-198908

MEDIUM GRAY,TRIM1#

sub46243-14090¥3,140

main46243-14090-03iMA70..RHD198908-199008

MEDIUM GRAY,TRIM1#

sub46243-14090¥3,140

main46243-14090-04iMA70..RHD198808-199305

DEEP BLUE,TRIM8#

sub46243-14090¥3,140

main46243-14090-06iMA70..RHD..(C,EUR,GEN)198901-198908

BROWN,TRIM4#

sub46243-14090¥3,140

main46243-14090-06iMA70..RHD198908-199008

BROWN,TRIM4#

sub46243-14090¥3,140

main46243-14090-06iMA70..RHD198808-198901

BROWN,TRIM4#

sub46243-14090¥3,140

main46243-14090-12iMA70..RHD..(ARL,GEN)199008-199305

DEEP RED,TRIM3#

sub46243-14090¥3,140

main46243-14090-13iMA70..RHD199008-199108

SHADOW GRAY,TRIM1#

sub46243-14090¥3,140

main46243-14100-02iMA70..LHD..(GEN,V)198808-199008

MAROON,TRIM3#

sub46243-14100¥3,140

main46243-14100-03iMA70..LHD198808-199008

MEDIUM GRAY,TRIM1#

sub46243-14100¥3,140

main46243-14100-04iMA70..LHD198808-199305

DEEP BLUE,TRIM8#

sub46243-14100¥3,140

main46243-14100-06iMA70..LHD198908-199008

BROWN,TRIM4#

sub46243-14100¥3,140

main46243-14100-06iMA70..LHD..C199008-199108

BROWN,TRIM4#

sub46243-14100¥3,140

main46243-14100-06iMA70..LHD..(C,EUR,GEN)198808-198908

BROWN,TRIM4#

sub46243-14100¥3,140

main46243-14100-12iMA70..LHD..TWC199008-199305

DEEP RED,TRIM3#

sub46243-14100¥3,140

main46243-14100-13iMA70..LHD199008-199305

SHADOW GRAY,TRIM1#

sub46243-14100¥3,140

46341EQUALIZER, PARKING BRAKE

main46341-12010iMA70¥320199108-199305

main46341-12010iMA70¥320198808-199108

46410CABLE ASSY, PARKING BRAKE, NO.1

main46410-14070iMA70..RHD¥22,000198808-199108

main46410-14070iMA70..RHD¥22,000199108-199305

main46410-14090iMA70..LHD¥22,500198808-199008

main46410-14090iMA70..LHD¥22,500199008-199305

46420CABLE ASSY, PARKING BRAKE, NO.2

main46420-14290iMA70¥10,000198808-199008

main46420-14290iMA70¥10,000199008-199305

46430CABLE ASSY, PARKING BRAKE, NO.3

main46430-14290iMA70¥10,000198808-199011

main46430-14300iMA70¥10,000199011-199305

46458RETAINER, CABLE

main46458-20020iMA70¥270198808-198908

sub46458-50010¥340

main46458-50010iMA70¥340199108-199305

main46458-50010iMA70¥340198908-199108

9011906197

main90119-06197¥50

9011908432

main90119-08432¥520

9011912098

main90119-12098¥260

9017006004

main90170-06004¥130

9017906058

main90179-06058¥130

9017908108

main90179-08108¥160

9017912010

main90179-12010¥190

9046806063

main90468-06063¥90

9094901293

main90949-01293¥390

9094901294

main90949-01294¥390

9111170825

main91111-70825¥180

9165660618

main91656-60618¥140

9461110800

main94611-10800¥80

9461211200

main94612-11200¥100

24 parts on this diagram · 2 diagrams in section
