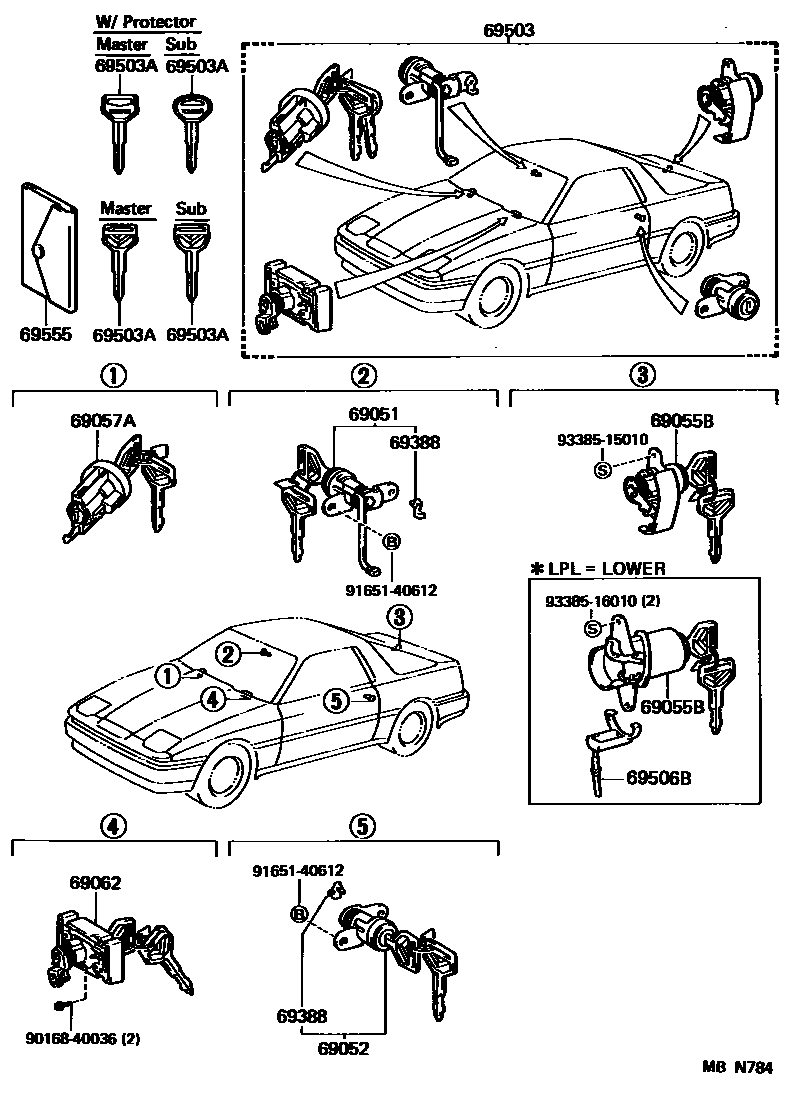

Toyota SUPRA — LOCK CYLINDER SET

69051CYLINDER & KEY SET, DOOR LOCK, RH

main69051-14140iMA70..ARL,GEN,V¥3,560198808-198908

W(*LPL=SIDE)

sub69051-14160¥3,560

main69051-14141iMA70..GEN,V;MA70..SPR..ARL¥3,990198908-199305

sub69051-14161¥3,990

main69051-14141iMA70..LHD..TWT¥3,990198908-199305

W(*LPL=SIDE)

sub69051-14161¥3,990

main69051-14160iMA70..C,EUR¥3,560198808-198908

main69051-14161iMA70..C¥3,990198908-199305

main69051-14181iMA70..LB..ARL¥3,990199108-199305

sub69051-14161¥3,990

69052CYLINDER & KEY SET, DOOR LOCK, LH

main69052-14140iMA70..ARL,GEN,V¥3,560198808-198908

W(*LPL=SIDE)

sub69052-14150¥3,560

main69052-14141iMA70..GEN,V;MA70..SPR..ARL¥3,990198908-199305

sub69052-14151¥3,990

main69052-14141iMA70..LHD..TWT¥3,990198908-199305

W(*LPL=SIDE)

sub69052-14151¥3,990

main69052-14150iMA70..C,EUR¥3,560198808-198908

main69052-14151iMA70..C¥3,990198908-199305

main69052-14180iMA70..LB..ARL¥3,990199108-199305

sub69052-14151¥3,990

69055BCYLINDER & KEY SET, BACK DOOR LOCK

main69055-14261iMA70..V¥5,100198808-198908

W(*LPL=SIDE)

main69055-14262iMA70..V¥5,400198908-199305

W(*LPL=SIDE)

main69055-14270iMA70..C,EUR¥4,090198808-198908

sub69055-14271¥5,400

main69055-14271iMA70..C¥5,400198908-199305

main69055-14280iMA70..GEN¥4,090198808-198908

sub69055-14281¥5,400

main69055-14281iMA70..GEN¥5,400198908-199305

main69055-14310iMA70..ARL¥3,910198808-198908

sub69055-14340¥3,990

main69055-14311iMA70..SPR..ARL¥5,400198908-199305

sub69055-14340¥3,990

main69055-14340iMA70..LB..ARL¥3,990199108-199305

69057ACYLINDER & KEY SET, IGNITION SWITCH LOCK

main69057-14120iMA70..LHD..C¥5,700198808-198908

W(*LPL=SIDE)

sub69057-20140¥5,700

main69057-14121iMA70..LHD..TWT¥7,100198908-199305

W(*LPL=SIDE)

sub69057-14130¥7,100

main69057-14121iMA70..GEN,V;MA70..SPR..ARL¥7,100198908-199305

sub69057-14130¥7,100

main69057-14130iMA70..C¥7,100198908-199305

main69057-14140iMA70..LB..ARL¥7,100199108-199305

sub69057-14130¥7,100

main69057-20130iMA70..C,EUR¥5,700198808-198908

sub69057-32090¥5,700

69062CYLINDER & KEY SET, GLOVE COMPARTMENT LOCK

main69056-14090-02iMA70..ARL,GEN,V198808-198908

MAROON,TRIM3#

sub69056-14090¥3,150

sub69056-14101¥7,200

main69056-14090-03iMA70..GEN,V198808-198908

MEDIUM GRAY METALLIC,TRIM1#

sub69056-14090¥3,150

sub69056-14101¥7,200

main69056-14090-03iMA70..LHD..C198808-198908

W(*LPL=SIDE),MEDIUM GRAY METALLIC,TRIM1#

sub69056-14090¥3,150

sub69056-14101¥7,200

main69056-14090-04iMA70..ARL,GEN,V198808-198908

DEEP BLUE,TRIM8#

sub69056-14090¥3,150

sub69056-14101¥7,200

main69056-14090-04iMA70..ARL,GEN,V198808-198908

W(*LPL=SIDE),DEEP BLUE,TRIM8#

sub69056-14090¥3,150

sub69056-14101¥7,200

main69056-14090-06iMA70..LHD..C198808-198908

W(*LPL=SIDE),BROWN,TRIM4#

sub69056-14090¥3,150

sub69056-14101¥7,200

main69056-14090-06iMA70..GEN198808-198908

BROWN,TRIM4#

sub69056-14090¥3,150

sub69056-14101¥7,200

main69056-14091-02iMA70..ARL,GEN,V198908-199008

MAROON,TRIM3#

sub69056-14091¥4,440

sub69056-14101¥7,200

main69056-14091-03iMA70..ARL,GEN,V198908-199008

W(*LPL=SIDE),MEDIUM GRAY,TRIM1#

sub69056-14091¥4,440

sub69056-14101¥7,200

main69056-14091-03iMA70..LHD..TWT198908-199008

MEDIUM GRAY,TRIM1#

sub69056-14091¥4,440

sub69056-14101¥7,200

main69056-14091-04iMA70..GEN,V;MA70..SPR..ARL198908-199305

DEEP BLUE,TRIM8#

sub69056-14091¥4,440

sub69056-14101¥7,200

main69056-14091-04iMA70..LHD..TWT198908-199305

W(*LPL=SIDE),DEEP BLUE,TRIM8#

sub69056-14091¥4,440

sub69056-14101¥7,200

main69056-14091-06iMA70..ARL,GEN,V198908-199008

BROWN,TRIM4#

sub69056-14091¥4,440

sub69056-14101¥7,200

main69056-14091-06iMA70..LHD..TWT198908-199108

W(*LPL=SIDE),BROWN,TRIM4#

sub69056-14091¥4,440

sub69056-14101¥7,200

main69056-14091-12iMA70..ARL,GEN,V199008-199305

DEEP RED,TRIM3#

sub69056-14091¥4,440

sub69056-14101¥7,200

main69056-14091-13iMA70..LHD..C199008-199305

W(*LPL=SIDE),SHADOW GRAY,TRIM1#

sub69056-14091¥4,440

sub69056-14101¥7,200

main69056-14091-13iMA70..ARL,GEN,V199008-199305

SHADOW GRAY,TRIM1#

sub69056-14091¥4,440

sub69056-14101¥7,200

main69056-14100-03iMA70..C,EUR198808-198908

MEDIUM GRAY METALLIC,TRIM1#

sub69056-14100¥5,100

sub69056-14101¥7,200

main69056-14100-04iMA70..C,EUR198808-198908

DEEP BLUE,TRIM8#

sub69056-14100¥5,100

sub69056-14101¥7,200

main69056-14100-06iMA70..C,EUR198808-198908

BROWN,TRIM4#

sub69056-14100¥5,100

sub69056-14101¥7,200

main69056-14101-03iMA70..C198908-199008

MEDIUM GRAY,TRIM1#

sub69056-14101¥7,200

main69056-14101-04iMA70..C198908-199305

DEEP BLUE,TRIM8#

sub69056-14101¥7,200

main69056-14101-06iMA70..LHD..C198908-199108

BROWN,TRIM4#

sub69056-14101¥7,200

main69056-14101-13iMA70..C199008-199305

SHADOW GRAY,TRIM1#

sub69056-14101¥7,200

main69056-14111-04iMA70..LB..ARL199108-199305

DEEP BLUE,TRIM8#

sub69056-14111¥7,200

sub69056-14101¥7,200

main69056-14111-12iMA70..LB..ARL199108-199305

DEEP RED,TRIM3#

sub69056-14111¥7,200

sub69056-14101¥7,200

main69056-14111-13iMA70..LB..ARL199108-199305

SHADOW GRAY,TRIM1#

sub69056-14111¥7,200

sub69056-14101¥7,200

69388SNAP, ROD(FOR DOOR LOCK)

main69759-30040iMA70¥320198808-199305

RH

main69759-30050iMA70¥350198808-199305

LH

69503CYLINDER SET, LOCK

main69005-14561-02iMA70..V198808-198908

W(*LPL=SIDE),MAROON,TRIM3#

sub69005-14561¥15,100

main69005-14561-02iMA70..V198808-198908

MAROON,TRIM3#

sub69005-14561¥15,100

main69005-14561-03iMA70..V198808-198908

MEDIUM GRAY,TRIM1#

sub69005-14561¥15,100

main69005-14561-03iMA70..LHD..C198808-198908

W(*LPL=SIDE),MEDIUM GRAY,TRIM1#

sub69005-14561¥15,100

main69005-14561-04iMA70..LHD..C198808-198908

W(*LPL=SIDE),DEEP BLUE,TRIM8#

sub69005-14561¥15,100

main69005-14561-04iMA70..V198808-198908

DEEP BLUE,TRIM8#

sub69005-14561¥15,100

main69005-14561-06iMA70..GEN198808-198908

W(*LPL=SIDE),BROWN,TRIM4#

sub69005-14561¥15,100

main69005-14562-02iMA70..V198908-199008

MAROON,TRIM3#

sub69005-14562¥23,200

main69005-14562-02iMA70..V198908-199008

W(*LPL=SIDE),MAROON,TRIM3#

sub69005-14562¥23,200

main69005-14562-03iMA70..LHD..TWT198908-199008

W(*LPL=SIDE),MEDIUM GRAY,TRIM1#

sub69005-14562¥23,200

main69005-14562-03iMA70..GEN198908-199008

MEDIUM GRAY,TRIM1#

sub69005-14562¥23,200

main69005-14562-04iMA70..GEN198908-199305

W(*LPL=SIDE),DEEP BLUE,TRIM8#

sub69005-14562¥23,200

main69005-14562-04iMA70..V198908-199305

DEEP BLUE,TRIM8#

sub69005-14562¥23,200

main69005-14562-06iMA70..V198908-199008

BROWN,TRIM4#

sub69005-14562¥23,200

main69005-14562-06iMA70..V198908-199108

W(*LPL=SIDE),BROWN,TRIM4#

sub69005-14562¥23,200

main69005-14562-12iMA70..GEN199008-199305

DEEP RED,TRIM3#

sub69005-14562¥23,200

main69005-14562-12iMA70..V199008-199305

W(*LPL=SIDE),DEEP RED,TRIM3#

sub69005-14562¥23,200

main69005-14562-13iMA70..GEN;MA70..LHD..C199008-199305

SHADOW GRAY,TRIM1#

sub69005-14562¥23,200

main69005-14562-13iMA70..V199008-199305

W(*LPL=SIDE),SHADOW GRAY,TRIM1#

sub69005-14562¥23,200

main69005-14580-03iMA70..C,EUR198808-198908

MEDIUM GRAY METALLIC,TRIM1#

sub69005-14580¥17,800

main69005-14580-04iMA70..C,EUR198808-198908

DEEP BLUE,TRIM8#

sub69005-14580¥17,800

main69005-14580-06iMA70..C,EUR198808-198908

BROWN,TRIM4#

sub69005-14580¥17,800

main69005-14581-03iMA70..C198908-199008

MEDIUM GRAY,TRIM1#

sub69005-14581¥23,200

main69005-14581-04iMA70..C198908-199305

DEEP BLUE,TRIM8#

sub69005-14581¥23,200

main69005-14581-06iMA70..LHD..C198908-199108

BROWN,TRIM4#

sub69005-14581¥23,200

main69005-14581-13iMA70..C199008-199305

SHADOW GRAY,TRIM1#

sub69005-14581¥23,200

main69005-14590-02iMA70..GEN198808-198908

MAROON,TRIM3#

sub69005-14590¥17,800

main69005-14590-03iMA70..GEN198808-198908

MEDIUM GRAY METALLIC,TRIM1#

sub69005-14590¥17,800

main69005-14590-04iMA70..GEN198808-198908

DEEP BLUE,TRIM8#

sub69005-14590¥17,800

main69005-14590-06iMA70..GEN198808-198908

BROWN,TRIM4#

sub69005-14590¥17,800

main69005-14591-02iMA70..GEN198908-199008

MAROON,TRIM3#

sub69005-14591¥23,200

main69005-14591-03iMA70..GEN198908-199008

MEDIUM GRAY,TRIM1#

sub69005-14591¥23,200

main69005-14591-04iMA70..GEN198908-199305

DEEP BLUE,TRIM8#

sub69005-14591¥23,200

main69005-14591-06iMA70..GEN198908-199008

BROWN,TRIM4#

sub69005-14591¥23,200

main69005-14591-12iMA70..GEN199008-199305

DEEP RED,TRIM3#

sub69005-14591¥23,200

main69005-14591-13iMA70..GEN199008-199305

SHADOW GRAY,TRIM1#

sub69005-14591¥23,200

main69005-14620-02iMA70..ARL198808-198908

MAROON,TRIM3#

sub69005-14620¥13,100

main69005-14620-03iMA70..ARL198808-198901

MEDIUM GRAY,TRIM1#

sub69005-14620¥13,100

main69005-14620-04iMA70..ARL198808-198908

DEEP BLUE,TRIM8#

sub69005-14620¥13,100

main69005-14620-06iMA70..ARL198808-198901

BROWN,TRIM4#

sub69005-14620¥13,100

main69005-14621-02iMA70..ARL198908-199008

MAROON,TRIM3#

sub69005-14621¥14,500

main69005-14621-03iMA70..ARL198908-199008

MEDIUM GRAY,TRIM1#

sub69005-14621¥14,500

main69005-14621-04iMA70..ARL198908-199305

DEEP BLUE,TRIM8#

sub69005-14621¥14,500

main69005-14621-06iMA70..ARL198908-199008

BROWN,TRIM4#

sub69005-14621¥14,500

main69005-14621-12iMA70..ARL199008-199305

DEEP RED,TRIM3#

sub69005-14621¥14,500

main69005-14621-13iMA70..SPR..ARL199008-199305

SHADOW GRAY,TRIM1#

sub69005-14621¥14,500

main69005-14670-D5iMA70..LB..ARL199108-199305

DEEP RED,TRIM3#

sub69005-14670¥21,700

main69005-14670-P0iMA70..LB..ARL199108-199305

SHADOW GRAY,TRIM1#

sub69005-14670¥21,700

main69005-14670-R5iMA70..LB..ARL199108-199305

DEEP BLUE,TRIM8#

sub69005-14670¥21,700

69503AKEY, BLANK

main90999-00084iMA70..C,EUR¥2,070198808-198908

MASTER KEY,W(*68)

sub90999-00214¥2,570

main90999-00085iMA70..ARL,GEN,V¥1,550198808-198908

MASTER KEY

main90999-00085iMA70..ARL,GEN,V¥1,550198808-198908

MASTER KEY,W(*LPL=SIDE)

main90999-00088iMA70..C,EUR¥2,060198808-198908

SUB KEY,W(*68)

main90999-00094iMA70..ARL,GEN,V¥1,550198808-198908

SUB KEY

main90999-00094iMA70..ARL,GEN,V¥1,550198808-198908

SUB KEY,W(*LPL=SIDE)

main90999-00106iMA70..LHD..C¥2,060198808-198908

MASTER KEY,W(*68),W(*LPL=SIDE)

sub90999-00212¥2,060

main90999-00106iMA70..ARL,GEN,V¥2,060198808-198908

MASTER KEY,W(*68)

sub90999-00212¥2,060

main90999-00153iMA70..LHD..TWT¥980198908-199305

W(*LPL=SIDE)

main90999-00154iMA70..LHD..TWT¥1,550198908-199305

SUB KEY,W(*LPL=SIDE)

main90999-00154iMA70..ARL,GEN,V¥1,550198908-199305

SUB KEY

main90999-00174iMA70..LHD..TWT¥2,070198908-199305

MASTER KEY,W(*68),W(*LPL=SIDE)

main90999-00174iMA70..ARL,GEN,V¥2,070198908-199305

MASTER KEY,W(*68)

main90999-00175iMA70..C¥2,060198908-199305

MASTER KEY,W(*68)

sub90999-00174¥2,070

main90999-00176iMA70..C¥2,060198908-199305

SUB KEY

69506BHOSE SUB-ASSY, BACK DOOR LOCK CYLINDER

main69506-14010iMA70..C,EUR,GEN¥740198808-199305

69555COVER, KEY

main69555-20010iMA70¥780198808-199305

9016840036

main90168-40036¥70

9165140612

main91651-40612¥70

9338515010

main93385-15010¥70

9338516010

main93385-16010¥110

14 parts on this diagram · 1 diagram in section
