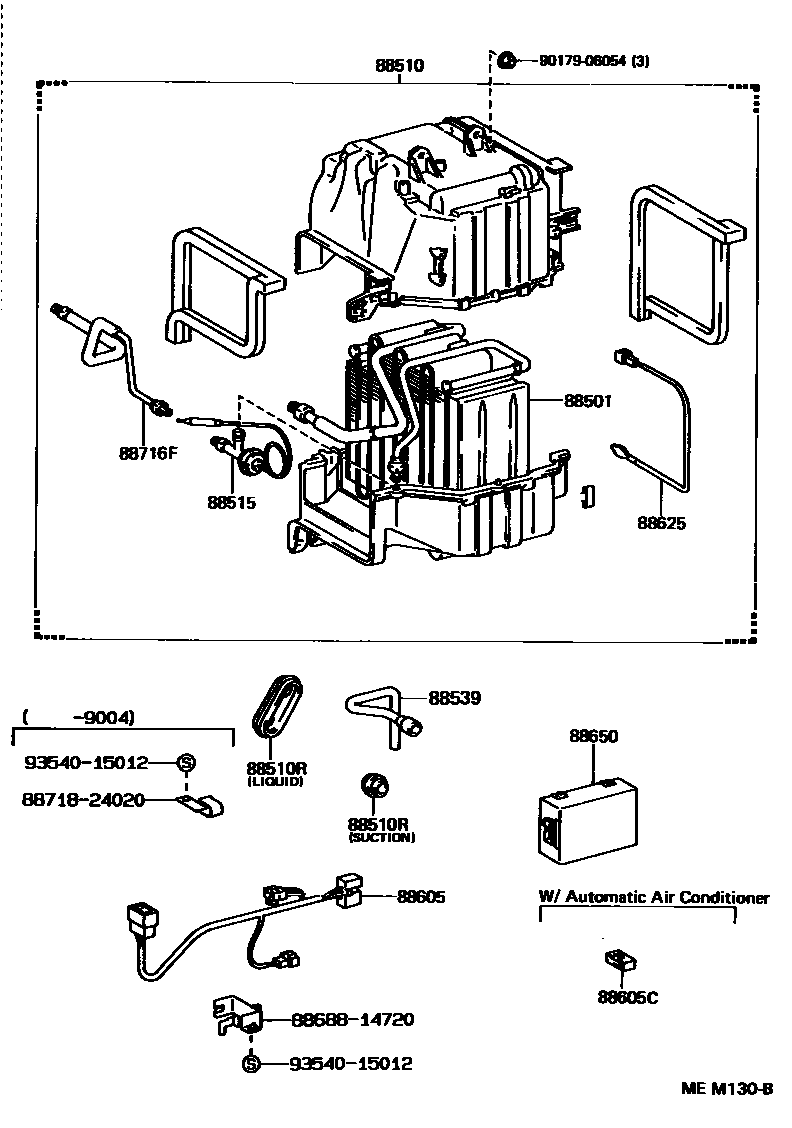

Toyota SUPRA — HEATING & AIR CONDITIONING - COOLER UNIT

0001 1DEALER OPT 0002 1MAKER OPT 0003 1

88501EVAPORATOR SUB-ASSY, COOLER, NO.1

main88501-14230iMA70..LHD¥27,000198808-199305

main88501-24031iMA70..ARL198808-199108

main88501-24031iMA70..ARL199108-199305

main88501-24031iMA70..RHD..GEN198808-199305

DEALER OPTION

main88501-24040iMA70..RHD..GEN199108-199305

HONG KONG SPEC

main88501-24040iMA70..RHD..GEN199108-199305

MAKER OPTION

main88501-24040iMA70..RHD..GEN198808-199008

MAKER OPTION

main88501-24040iMA70..RHD..GEN199008-199108

MAKER OPTION

main88501-24040iMA70..RHD..(C,EUR)198808-199305

88510UNIT ASSY, COOLER

main88510-14420iMA70..RHD..GEN198808-199008

MAKER OPTION

main88510-14420iMA70..RHD..GEN199008-199305

MAKER OPTION

main88510-14420iMA70..RHD..(C,EUR)198808-199305

main88510-14430iMA70..LHD198808-199305

main88510-14440iMA70..RHD..GEN199108-199305

DEALER OPTION

main88510-14440iMA70..RHD..GEN199004-199008

DEALER OPTION

main88510-14440iMA70..RHD..GEN199008-199108

DEALER OPTION OR HONG KONG SPEC

main88510-14440iMA70..ARL199004-199305

main88510-24090iMA70..ARL198808-199004

DEALER OPTION

88510RGROMMET (FOR COOLER UNIT)

main90480-24008iMA70..ARL,C,V;MA70..LHD..GEN199008-199108

LIQUID PIPE

sub90099-32137

main90480-24008iMA70198808-199008

LIQUID PIPE

sub90099-32137

main90480-24008iMA70..RHD..GEN198808-199305

LIQIID PIPE

sub90099-32137

main90480-24008iMA70199108-199305

LIQUID PIPE

sub90099-32137

main90480-26004iMA70..RHD..GEN¥0199008-199108

SUCTION PIPE

main90480-26004iMA70¥0198808-199008

SUCTION PIPE

main90480-26004iMA70¥0199108-199305

SUCTION PIPE

88515VALVE, COOLER EXPANSION

main88515-14061iMA70..LHD¥10,600198808-199008

sub88515-14062¥10,500

main88515-14061iMA70..LHD¥10,600199102-199108

sub88515-14062¥10,500

main88515-14062iMA70..LHD¥10,500199108-199305

sub88515-33010¥10,300

main88515-14062iMA70..LHD¥10,500199008-199102

sub88515-33010¥10,300

main88515-14070iMA70..ARL¥9,500199108-199305

HONG KONG SPEC

sub88515-14071¥10,500

main88515-14070iMA70..RHD..GEN¥9,500199008-199108

HONG KONG SPEC

sub88515-14071¥10,500

main88515-16040iMA70..RHD..GEN¥7,100198808-199008

MAKER OPTION

main88515-16040iMA70..RHD..(C,EUR)¥7,100198808-199305

main88515-16040iMA70..RHD..GEN¥7,100199008-199305

MAKER OPTION

main88515-20050iMA70..RHD..GEN¥9,900198808-199305

DEALER OPTION

sub88515-20051¥9,500

main88515-20050iMA70..ARL¥9,900198808-199108

sub88515-20051¥9,500

main88515-20050iMA70..ARL¥9,900199108-199305

sub88515-20051¥9,500

88539HOSE, COOLER UNIT DRAIN, NO.1

main88539-14090iMA70..LHD198808-199305

main88539-24031iMA70..RHD..GEN¥470198808-199008

MAKER OPTION

main88539-24031iMA70..RHD..GEN¥470199008-199305

MAKER OPTION

main88539-24031iMA70..RHD..(C,EUR)¥470198808-199305

main88539-24050iMA70..ARL198808-199305

main88539-24050iMA70..RHD..GEN198808-199008

DEALER OPTION

main88539-24050iMA70..RHD..GEN199008-199108

DEALER OPTION

main88539-24050iMA70..RHD..GEN199108-199305

DEALER OPTION

88605HARNESS SUB-ASSY, COOLER WIRING, NO.1

main88605-14780iMA70..RHD..GEN198808-199008

DEALER OPTION

main88605-14780iMA70..ARL198808-199305

main88605-14780iMA70..RHD..GEN199108-199305

DEALER OPTION

main88605-14780iMA70..RHD..GEN199008-199108

DEALER OPTION

main88605-14870iMA70..RHD..GEN198808-199008

MAKER OPTION

main88605-14870iMA70..C,EUR,V;MA70..LHD..GEN198808-199305

main88605-14870iMA70..RHD..GEN199008-199305

MAKER OPTION

88605CHARNESS SUB-ASSY, COOLER WIRING, NO.2

main88605-14850iMA70..ARL198808-199305

88625THERMISTOR, COOLER, NO.1

main88625-24050iMA70..ARL,C,V;MA70..LHD..GEN199008-199108

main88625-24050iMA70198808-199008

main88625-24050iMA70199108-199305

88650AMPLIFIER ASSY, COOLER STABILIZER

main88650-14250iMA70198808-199305

88716FPIPE, COOLER REFRIGERANT LIQUID, F

main88710-14060iMA70..LHD¥9,800198808-199305

main88716-1B050iMA70..RHD..(C,EUR)¥3,340198808-199305

main88716-1B050iMA70..RHD..GEN¥3,340199008-199305

MAKER OPTION

main88716-1B050iMA70..RHD..GEN¥3,340198808-199008

MAKER OPTION

main88716-24070iMA70..ARL¥3,090199108-199305

main88716-24070iMA70..RHD..GEN¥3,090198808-199305

DEALER OPTION

main88716-24070iMA70..ARL¥3,090198808-199108

main88716-24180iMA70..RHD..GEN¥3,560199008-199108

DEALER OPTION,HONG KONG SPEC

main88716-24180iMA70..ARL¥3,560199108-199305

HONG KONG SPEC

8868814720BRACKET, COOLER DIAPHRAGM

main88688-14720

8871824020PIPE, COOLER REFRIGERANT SUCTION, NO.2

main88718-24020

9017906054

main90179-06054¥100

9354015012

main93540-15012¥70

14 parts on this diagram · 3 diagrams in section
